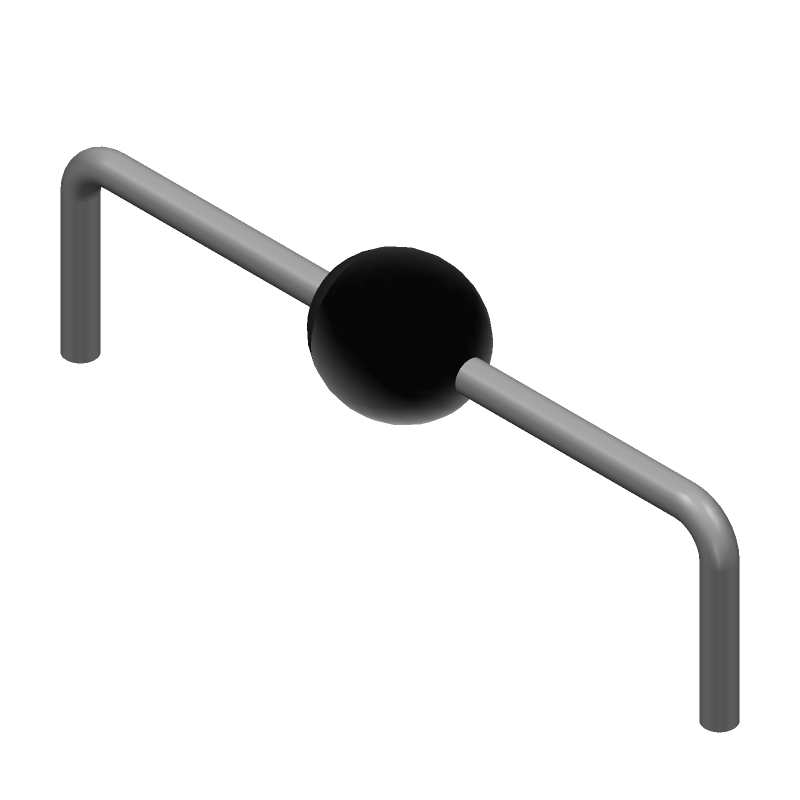

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BYV26C-TAP by Vishay Intertechnologies
Results Overview of BYV26C-TAP by Vishay Intertechnologies
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
BYV26C-TAP Information
BYV26C-TAP by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10091796-001LF | Amphenol Communications Solutions | XCede® High Speed Backplane Connectors, Cross-Recessed Pan Head Screw, SS, Self-Tapping, #2-32 x 3/8" Long. |
Price & Stock for BYV26C-TAP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
32C9379
|
Newark | Avalanche Diode, 1A, 600V, Sod-57, Repetitive Peak Reverse Voltage:600V, Average Forward Current:1A, Diode Configuration:Single, Forward Voltage Max:2.5V, Reverse Recovery Time:30Ns, Forward Surge Current:30A, Diode Case Style:Sod-57Rohs Compliant: Yes |Vishay BYV26C-TAP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 7 |
|
$0.0650 | Buy Now |
|
DISTI #
29X4266
|
Newark | Avalanche Diode, 1A, 600V, Sod-57, Full Reel, Repetitive Peak Reverse Voltage:600V, Average Forward Current:1A, Diode Configuration:Single, Forward Voltage Max:2.5V, Reverse Recovery Time:30Ns, Forward Surge Current:30A Rohs Compliant: Yes |Vishay BYV26C-TAP RoHS: Compliant Min Qty: 25000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2220 / $0.2490 | Buy Now |
|
DISTI #
32C9379
|
Avnet Americas | AVALANCHE DIODE SOD57 STD - Product that comes on tape, but is not reeled (Alt: 32C9379) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 1 Days Container: Ammo Pack | 7 Partner Stock |
|
$0.3880 | Buy Now |
|
DISTI #
BYV26C-TAP
|
Avnet Americas | AVALANCHE DIODE SOD57 STD - Ammo Pack (Alt: BYV26C-TAP) RoHS: Compliant Min Qty: 25000 Package Multiple: 25000 Lead time: 14 Weeks, 0 Days Container: Ammo Pack | 0 |
|
$0.1976 / $0.2100 | Buy Now |
|
DISTI #
78-BYV26C-TAP
|
Mouser Electronics | Rectifiers 1 Amp 600 Volt 30 Amp IFSM RoHS: Compliant | 21288 |
|
$0.2100 / $0.5400 | Buy Now |
|
DISTI #
E02:0323_00021334
|
Arrow Electronics | Diode Switching 600V 1A 2-Pin SOD-57 Ammo Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2512 | Europe - 50255 |
|
$0.2040 / $0.5269 | Buy Now |
|
DISTI #
V72:2272_09179763
|
Arrow Electronics | Diode Switching 600V 1A 2-Pin SOD-57 Ammo Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2219 Container: Cut Strips | Americas - 17821 |
|
$0.2255 / $0.2600 | Buy Now |
|
DISTI #
82115977
|
Verical | Diode Switching 600V 1A 2-Pin SOD-57 Ammo Min Qty: 27 Package Multiple: 1 Date Code: 2219 | Americas - 17821 |
|
$0.2255 / $0.2524 | Buy Now |
|
DISTI #
66386545
|
Verical | Diode Switching 600V 1A 2-Pin SOD-57 Ammo Min Qty: 146 Package Multiple: 1 Date Code: 2301 | Americas - 4974 |
|
$0.2560 / $0.4930 | Buy Now |
|
|
Bristol Electronics | Min Qty: 7 | 4800 |
|
$0.1901 / $0.7313 | Buy Now |
Part Details for BYV26C-TAP
BYV26C-TAP CAD Models
BYV26C-TAP Part Data Attributes
|
|
BYV26C-TAP
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
BYV26C-TAP
Vishay Intertechnologies
Rectifier Diode, Avalanche, 1 Element, 0.8A, 200V V(RRM), Silicon, HALOGEN FREE AND ROHS COMPLIANT, HERMETIC SEALED PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT, HERMETIC SEALED PACKAGE-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.3 V | |
| JESD-30 Code | E-XALF-W2 | |
| JESD-609 Code | e2 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.8 A | |
| Package Body Material | UNSPECIFIED | |
| Package Shape | ELLIPTICAL | |
| Package Style | LONG FORM | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Reverse Recovery Time-Max | 0.03 µs | |
| Surface Mount | NO | |
| Technology | AVALANCHE | |
| Terminal Finish | TIN SILVER | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL |
BYV26C-TAP Frequently Asked Questions (FAQ)
-
The recommended storage temperature range for BYV26C-TAP is -40°C to 125°C.
-
Yes, BYV26C-TAP is suitable for high-reliability applications due to its high-quality construction and rigorous testing.
-
The maximum allowable voltage derating for BYV26C-TAP is 10% of the rated voltage.
-
Handle BYV26C-TAP with ESD-protective equipment and follow proper ESD handling procedures to prevent damage.
-
Yes, BYV26C-TAP is rated for high-temperature applications up to 150°C, but derating may be necessary.
