BUD42D-1G Information
BUD42D-1G by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BUD42D-1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86094762
|
Verical | Trans GP BJT NPN 350V 4A 25000mW 3-Pin(3+Tab) IPAK Tube Min Qty: 689 Package Multiple: 1 Date Code: 1101 | Americas - 1800 |
|
$0.5450 | Buy Now |
|
|
Rochester Electronics | Power Bipolar Transistor, 4A, 350V, NPN, 3 Pin RoHS: Compliant Status: Obsolete Min Qty: 1 | 1925 |
|
$0.2703 / $0.4360 | Buy Now |
Part Details for BUD42D-1G

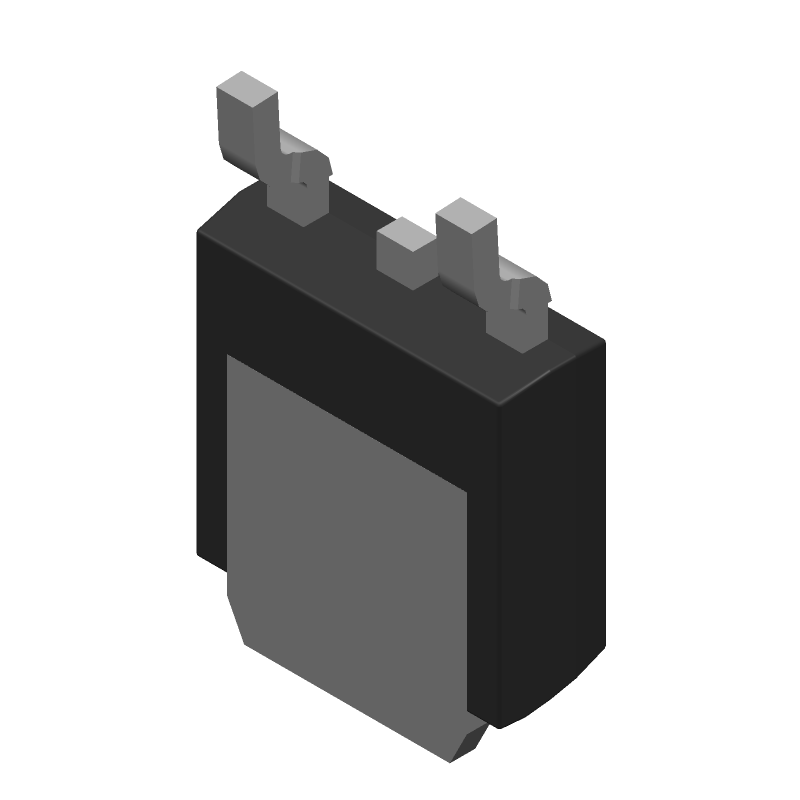

BUD42D-1G CAD Models
BUD42D-1G Part Data Attributes
|
|
BUD42D-1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
BUD42D-1G
onsemi
High Speed, High Gain NPN Bipolar Power Transistor, DPAK INSERTION MOUNT, 75-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | DPAK INSERTION MOUNT | |
| Pin Count | 4 | |
| Manufacturer Package Code | 369 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | BUILT-IN ANTISATURATION NETWORK | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 4 A | |
| Collector-Emitter Voltage-Max | 350 V | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DC Current Gain-Min (hFE) | 10 | |
| JESD-30 Code | R-PSIP-T3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 25 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
