Drivers And Interfaces / Line Driver or Receivers / BU90LV049A-E2
Datasheets
BU90LV049A-E2 by: ROHM Semiconductor

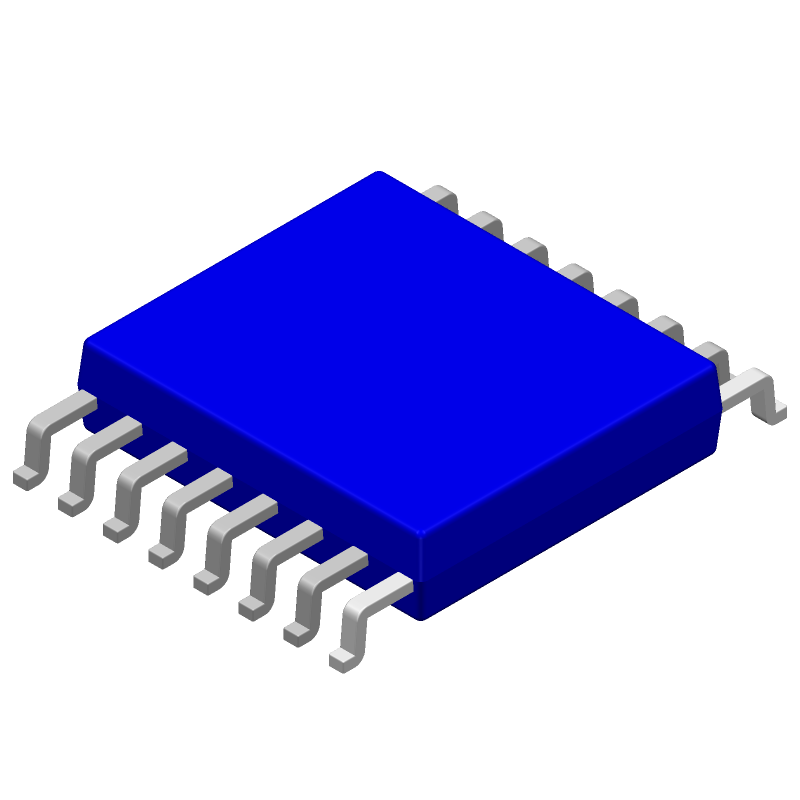

Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16, ROHS COMPLIANT, SSOP-16

Part Details for BU90LV049A-E2 by ROHM Semiconductor

Results Overview of BU90LV049A-E2 by ROHM Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Computing and Data Storage Healthcare Telecommunications Medical Imaging Communication and Networking

BU90LV049A-E2 Information

BU90LV049A-E2 by ROHM Semiconductor is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for BU90LV049A-E2

Part # Distributor Description Stock Price Buy
DISTI # 755-BU90LV049A-E2
Mouser Electronics LVDS Interface IC LVDS TRANSCEIVER T/R RoHS: Compliant 985
  • 1 $3.3700
  • 10 $2.5400
  • 25 $2.3300
  • 100 $2.1000
  • 250 $1.9500
  • 500 $1.8400
  • 1,000 $1.7500
  • 2,500 $1.6500
$1.6500 / $3.3700 Buy Now
DISTI # 62382579
Verical LVDS Transceiver 500Mbps 0.45V Automotive 16-Pin SSOP-B T/R RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 2201 Americas - 1448
  • 52 $3.3026
$3.3026 Buy Now
DISTI # 61706294
Verical LVDS Transceiver 500Mbps 0.45V Automotive 16-Pin SSOP-B T/R RoHS: Compliant Min Qty: 52 Package Multiple: 1 Date Code: 2201 Americas - 654
  • 52 $1.6444
  • 100 $1.5709
  • 250 $1.5079
  • 500 $1.4535
$1.4535 / $1.6444 Buy Now
DISTI # 84365853
Verical LVDS Transceiver 500Mbps 0.45V Automotive 16-Pin SSOP-B T/R RoHS: Compliant Min Qty: 35 Package Multiple: 1 Date Code: 2317 Americas - 300
  • 35 $3.2300
  • 50 $2.4300
  • 100 $2.2300
  • 200 $2.0100
$2.0100 / $3.2300 Buy Now
DISTI # 36529839
Verical LVDS Transceiver 500Mbps 0.45V Automotive 16-Pin SSOP-B T/R RoHS: Compliant Min Qty: 15 Package Multiple: 1 Date Code: 1501 Americas - 15
  • 15 $5.2504
$5.2504 Buy Now
Quest Components   1693
  • 1 $3.6600
  • 355 $1.5098
  • 663 $1.3725
$1.3725 / $3.6600 Buy Now
Velocity Electronics Our Stock 2500
RFQ
DISTI # BU90LV049A-E2
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 300
  • 1 $3.2300
  • 10 $2.4300
  • 50 $2.2300
  • 100 $2.0100
  • 200 $1.8700
  • 500 $1.7600
  • 1,000 $1.7200
  • 2,000 $1.5600
  • 5,000 $1.5100
  • 10,000 $1.4700
$1.4700 / $3.2300 Buy Now

Part Details for BU90LV049A-E2

BU90LV049A-E2 Part Data Attributes

Parametric Data
BU90LV049A-E2 ROHM Semiconductor
Buy Now Datasheet
Compare Parts:
BU90LV049A-E2 ROHM Semiconductor Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDSO16, ROHS COMPLIANT, SSOP-16
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ROHM CO LTD
Part Package Code SOIC
Pin Count 16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer ROHM Semiconductor
Differential Output YES
Driver Number of Bits 2
Input Characteristics DIFFERENTIAL
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-644-A; TIA-644-A
JESD-30 Code R-PDSO-G16
Length 5 mm
Number of Functions 2
Number of Terminals 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Out Swing-Min 0.12 V
Output Low Current-Max 0.008 A
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSSOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Receive Delay-Max 3.7 ns
Receiver Number of Bits 2
Seated Height-Max 1.25 mm
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transmit Delay-Max 2.8 ns
Width 4.4 mm

BU90LV049A-E2 Related Parts

BU90LV049A-E2 Frequently Asked Questions (FAQ)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.

  • ROHM recommends following the derating guidelines in the datasheet, and ensuring that the device is operated within the specified temperature range. Additionally, consider using thermal management techniques such as heat sinks or fans to keep the device temperature within a safe operating range.

  • While the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum rating for the input pins is 7V. Exceeding this voltage can cause permanent damage to the device.

  • The BU90LV049A-E2 is designed for low-frequency applications up to 100 kHz. While it may work at higher frequencies, ROHM does not guarantee its performance or reliability. For high-frequency applications, consider using a device specifically designed for that purpose.

  • ROHM recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation. Additionally, ensure that the device is stored in its original packaging or an anti-static bag to prevent damage during transportation and storage.
