BU7486SFVM-TR Information
BU7486SFVM-TR by ROHM Semiconductor is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for BU7486SFVM-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
846-BU7486SFVM-TRCT-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8MSOP Min Qty: 1 Lead time: 9 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3000 In Stock |
|
$0.3450 / $0.8400 | Buy Now |
|
DISTI #
755-BU7486SFVM-TR
|
Mouser Electronics | Operational Amplifiers - Op Amps ICs, Amplifiers & Linear, Operational Amplifiers, High Speed, Ground Sense RoHS: Compliant | 0 |
|
$0.3450 / $0.8400 | Order Now |
|
DISTI #
74095002
|
Verical | Op Amp Dual High Speed Amplifier R-R O/P 5.5V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 1901 | Americas - 1203 |
|
$0.4012 / $0.4660 | Buy Now |
|
DISTI #
85539454
|
Verical | Op Amp Dual High Speed Amplifier R-R O/P 5.5V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 101 Package Multiple: 1 | Americas - 600 |
|
$0.4080 / $0.4560 | Buy Now |
|
|
Quest Components | 962 |
|
$0.5760 / $1.4400 | Buy Now | |
|
|
Ameya Holding Limited | IC OPAMP GROUND SENSE 8MSOP Min Qty: 1 | 100-Authorized Distributor |
|
$0.3993 / $1.0694 | Buy Now RFQ |
|
|
Vyrian | Amplifiers | 1453 |
|
RFQ |
Part Details for BU7486SFVM-TR

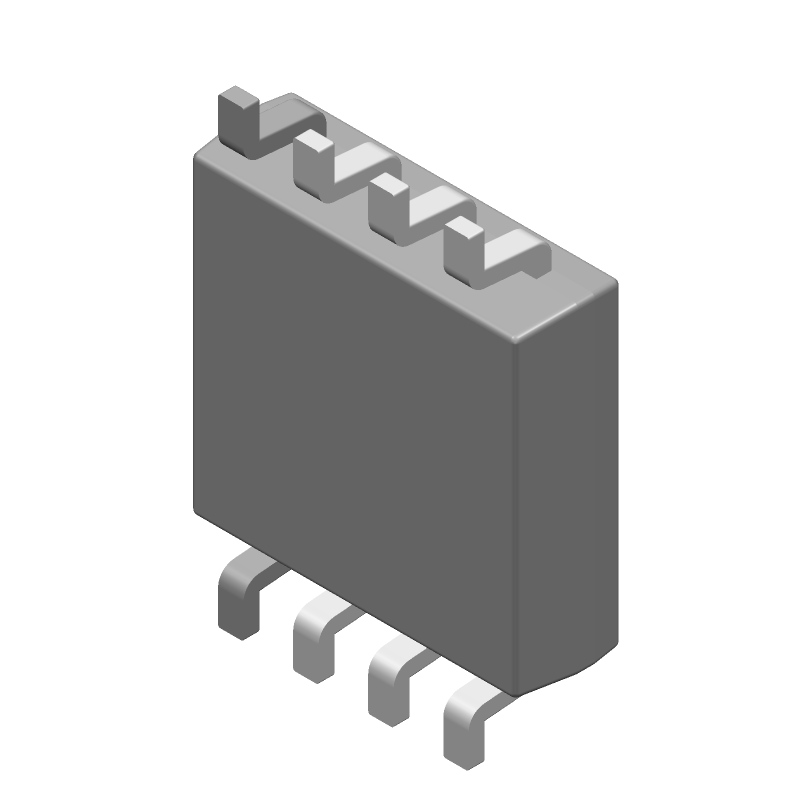

BU7486SFVM-TR CAD Models
BU7486SFVM-TR Part Data Attributes
|
|
BU7486SFVM-TR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BU7486SFVM-TR
ROHM Semiconductor
Operational Amplifier, 2 Func, 9500uV Offset-Max, CMOS, PDSO8, 2.90 X 4 MM, 0.90 MM HEIGHT, MSOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | 2.90 X 4 MM, 0.90 MM HEIGHT, MSOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Common-mode Reject Ratio-Nom | 60 dB | |
| Input Offset Voltage-Max | 9500 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 2.9 mm | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 0.9 mm | |
| Slew Rate-Nom | 10 V/us | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 2.8 mm |
