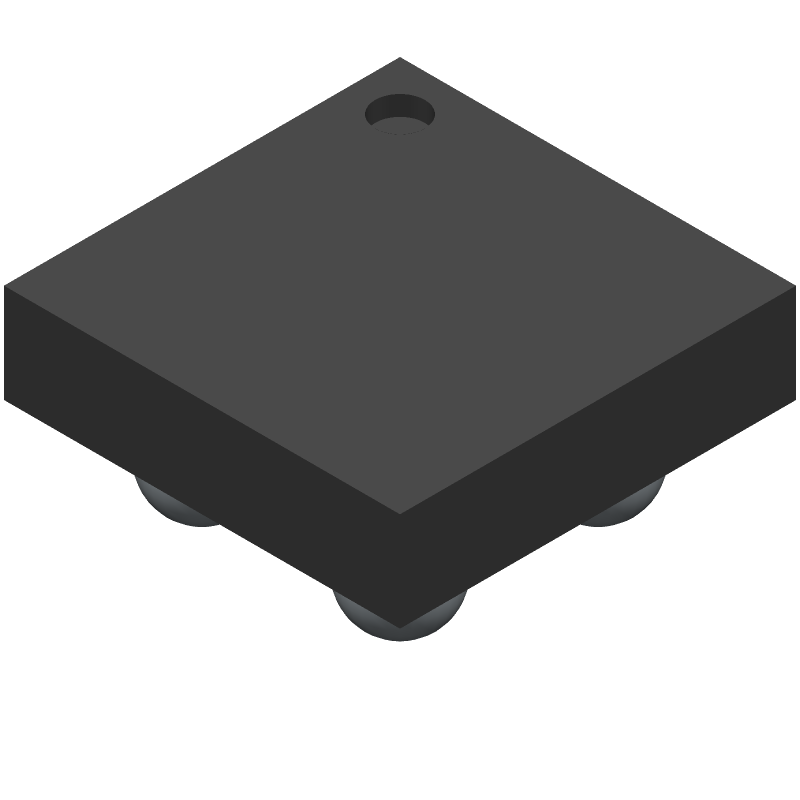

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BU52078GWZ-E2 by ROHM Semiconductor
Results Overview of BU52078GWZ-E2 by ROHM Semiconductor
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BU52078GWZ-E2 Information
BU52078GWZ-E2 by ROHM Semiconductor is a Magnetic Field Sensor.
Magnetic Field Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for BU52078GWZ-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15AC6403
|
Newark | Omnipolar Detection Hall Ic, 3.6V/Ucsp-4, Operating Point Typ:0.024T, Release Point Typ:0.0224T, Hysteresis Typ:-, Supply Voltage Min:1.65V, Supply Voltage Max:3.6V, Sensor Case/Package:Ucsp, No. Of Pins:4 Pin, Output Interface:- Rohs Compliant: Yes |Rohm BU52078GWZ-E2 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.1520 / $0.2800 | Buy Now |
|
DISTI #
BU52078GWZ-E2CT-ND
|
DigiKey | MAGNETIC SWITCH OMNIPOLAR Min Qty: 1 Lead time: 14 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6304 In Stock |
|
$0.1485 / $0.3200 | Buy Now |
|
DISTI #
755-BU52078GWZ-E2
|
Mouser Electronics | Board Mount Hall Effect / Magnetic Sensors Omnipolar Detection Hall IC Dual Outputs RoHS: Compliant | 1946 |
|
$0.1670 / $0.3200 | Buy Now |
|
DISTI #
65656491
|
Verical | Hall Effect Sensor 0.5mA Omnipolar 1.8V/2.5V/3.3V 4-Pin UCSP T/R Min Qty: 371 Package Multiple: 1 Date Code: 2201 | Americas - 6000 |
|
$0.3136 | Buy Now |
|
|
Quest Components | HALL EFFECT SENSOR, 16.4MT MIN, 30MT MAX, 0.2-1.6V, SQUARE, SURFACE MOUNT | 4800 |
|
$0.2135 / $0.6100 | Buy Now |
|
|
Quest Components | HALL EFFECT SENSOR, 16.4MT MIN, 30MT MAX, 0.2-1.6V, SQUARE, SURFACE MOUNT | 1036 |
|
$0.2928 / $0.7320 | Buy Now |
Part Details for BU52078GWZ-E2
BU52078GWZ-E2 CAD Models
BU52078GWZ-E2 Part Data Attributes
|
|
BU52078GWZ-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BU52078GWZ-E2
ROHM Semiconductor
Hall Effect Sensor, 16.4mT Min, 30mT Max, 0.2-1.6V, Square, Surface Mount, UCSP-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | UCSP-4 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Body Breadth | 0.8 mm | |
| Body Height | 0.4 mm | |
| Body Length or Diameter | 0.8 mm | |
| Hysteresis | 1.6 mT | |
| Magnetic Field Range-Max | 30 mT | |
| Magnetic Field Range-Min | 16.4 mT | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Current-Max | 0.008 mA | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Range | 0.2-1.6V | |
| Output Type | VOLTAGE OUTPUT | |
| Package Shape/Style | SQUARE | |
| Sensors/Transducers Type | MAGNETIC FIELD SENSOR,HALL EFFECT | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.65 V | |
| Surface Mount | YES | |
| Termination Type | SOLDER |
