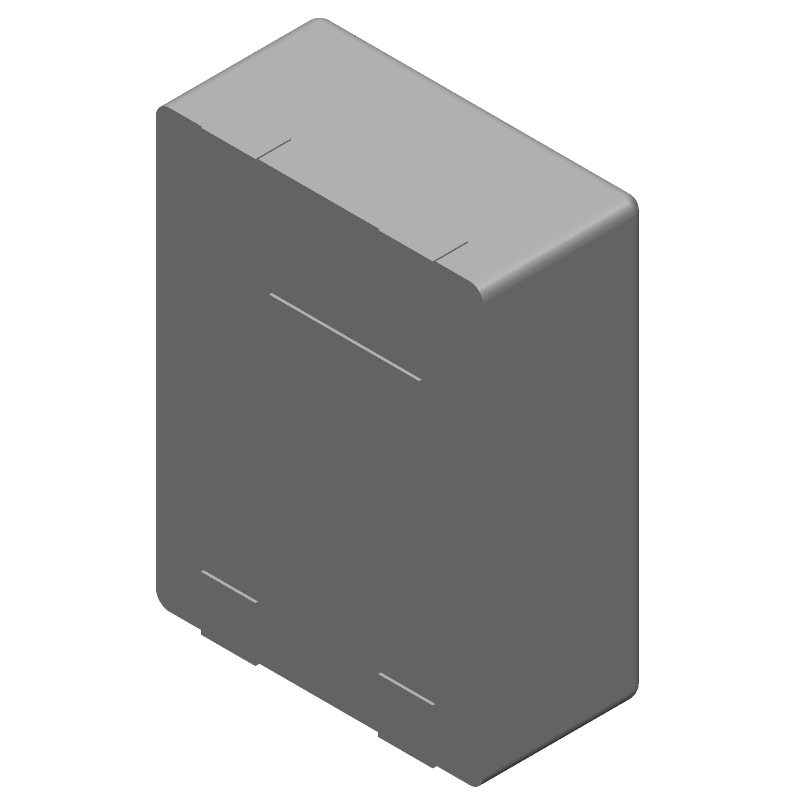

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BU2JTA2WNVX-TR by ROHM Semiconductor
Results Overview of BU2JTA2WNVX-TR by ROHM Semiconductor
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BU2JTA2WNVX-TR Information
BU2JTA2WNVX-TR by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BU2JTA2WNVX-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BU2JTA2WNVXTR-ND
|
DigiKey | IC REG LINEAR 2.85V 200MA 4SSON Min Qty: 5000 Lead time: 10 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.3034 / $0.3178 | Buy Now |
|
DISTI #
755-BU2JTA2WNVX-TR
|
Mouser Electronics | LDO Voltage Regulators High-Speed Load CMOS 2.85V Out 200mA RoHS: Compliant | 0 |
|
$0.2880 / $0.3100 | Order Now |
|
DISTI #
86988305
|
Verical | LDO Regulator Pos 2.85V 0.2A 4-Pin SSON-X EP T/R RoHS: Compliant Min Qty: 50 Package Multiple: 1 | Americas - 50 |
|
$1.4497 | Buy Now |
Part Details for BU2JTA2WNVX-TR
BU2JTA2WNVX-TR CAD Models
BU2JTA2WNVX-TR Part Data Attributes
|
|
BU2JTA2WNVX-TR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BU2JTA2WNVX-TR
ROHM Semiconductor
Fixed Positive LDO Regulator, 2.85V, CMOS, PDSO4, 1.20 X 1.60 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, SSON-4
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SON | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.72 V | |
| Dropout Voltage1-Nom | 0.36 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.5 V | |
| JESD-30 Code | R-PDSO-N4 | |
| Length | 1.6 mm | |
| Line Regulation-Max | 0.02% | |
| Load Regulation-Max | 0.08% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 125 °C | |
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 2.8785 V | |
| Output Voltage1-Min | 2.8215 V | |
| Output Voltage1-Nom | 2.85 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC4,.06,25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.6 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 1% | |
| Width | 1.2 mm |
