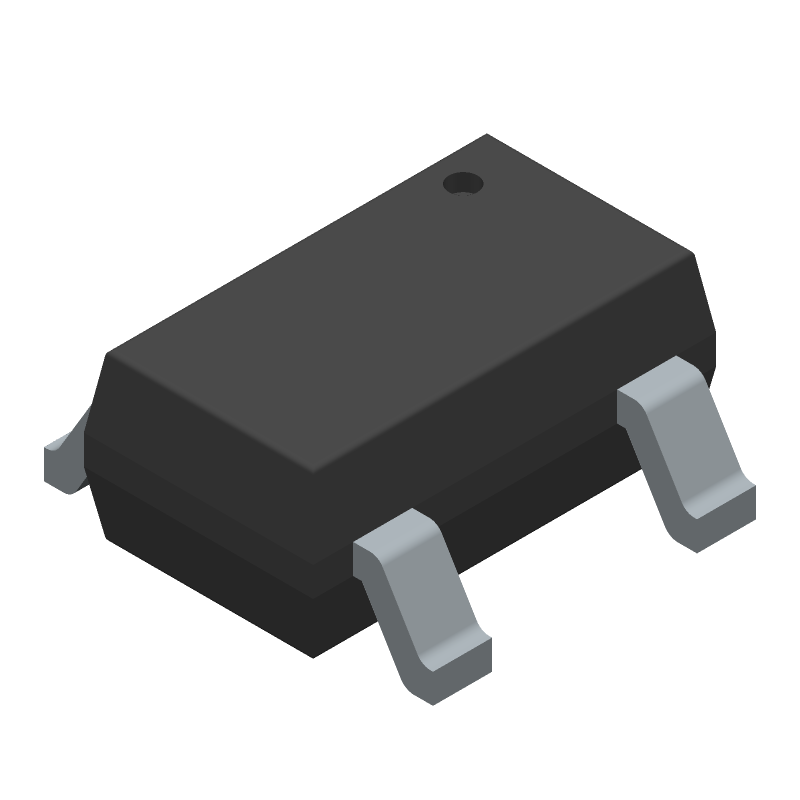

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BU25JA2VG-CGTR by ROHM Semiconductor
Results Overview of BU25JA2VG-CGTR by ROHM Semiconductor
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
BU25JA2VG-CGTR Information
BU25JA2VG-CGTR by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BU25JA2VG-CGTR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
846-BU25JA2VG-CGCT-ND
|
DigiKey | IC REG LINEAR 2.5V 200MA 5-SSOP Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2930 In Stock |
|
$0.3427 / $0.7900 | Buy Now |
|
DISTI #
755-BU25JA2VG-CGTR
|
Mouser Electronics | LDO Voltage Regulators 1ch 200mA CMOS LDO Regulator, In= 1.7 to 6V, Out= 1.8,3.3V Out= 0 to 200mA, 33 uA RoHS: Compliant | 2711 |
|
$0.3360 / $0.7900 | Buy Now |
|
DISTI #
61374849
|
Verical | LDO Regulator Pos 2.5V 0.2A 5-Pin SSOP T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 176 Package Multiple: 1 Date Code: 2201 | Americas - 3000 |
|
$0.5527 | Buy Now |
|
|
Quest Components | 2400 |
|
$0.4165 / $1.1900 | Buy Now |
Part Details for BU25JA2VG-CGTR
BU25JA2VG-CGTR CAD Models
BU25JA2VG-CGTR Part Data Attributes
|
|
BU25JA2VG-CGTR
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BU25JA2VG-CGTR
ROHM Semiconductor
Fixed Positive LDO Regulator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | SSOP-5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2017-08-31 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.19 V | |
| Dropout Voltage1-Nom | 0.1 V | |
| Input Voltage Absolute-Max | 6.5 V | |
| Input Voltage-Max | 6 V | |
| Input Voltage-Min | 3 V | |
| JESD-30 Code | R-PDSO-G5 | |
| Length | 2.9 mm | |
| Line Regulation-Max | 0.015% | |
| Load Regulation-Max | 0.01% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.2 A | |
| Output Voltage1-Max | 2.55 V | |
| Output Voltage1-Min | 2.45 V | |
| Output Voltage1-Nom | 2.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.25 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 2% | |
| Width | 1.6 mm |
