BU2050F-E2 Information
BU2050F-E2 by ROHM Semiconductor is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for BU2050F-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BU2050F-E2TR-ND
|
DigiKey | IC TRANSCEIVER 8/0 14SOP Min Qty: 2500 Lead time: 8 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.9987 / $1.0316 | Buy Now |
|
DISTI #
755-BU2050F-E2
|
Mouser Electronics | LED Lighting Driver ICs SERIAL IN/PARALLEL OUT DRIVER 14PIN RoHS: Compliant | 0 |
|
$0.9660 | Order Now |
|
DISTI #
36545261
|
Verical | LED Driver 24 Segment 14-Pin SOP T/R Min Qty: 104 Package Multiple: 1 Date Code: 1801 | Americas - 1664 |
|
$0.7089 / $0.7920 | Buy Now |
|
DISTI #
83139004
|
Verical | LED Driver 24 Segment 14-Pin SOP T/R Min Qty: 45 Package Multiple: 1 | Americas - 480 |
|
$0.8470 / $1.2200 | Buy Now |
|
|
Quest Components | SIPO BASED PERIPHERAL DRIVER, 0.025A, CMOS, PDSO14 | 1331 |
|
$0.8418 / $2.4050 | Buy Now |
|
DISTI #
BU2050F-E2
|
Avnet Silica | Serial INParallel Out Driver 14Pin SOP TR (Alt: BU2050F-E2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BU2050F-E2
|
Chip One Stop | Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 480 |
|
$0.5830 / $2.5000 | Buy Now |
Part Details for BU2050F-E2

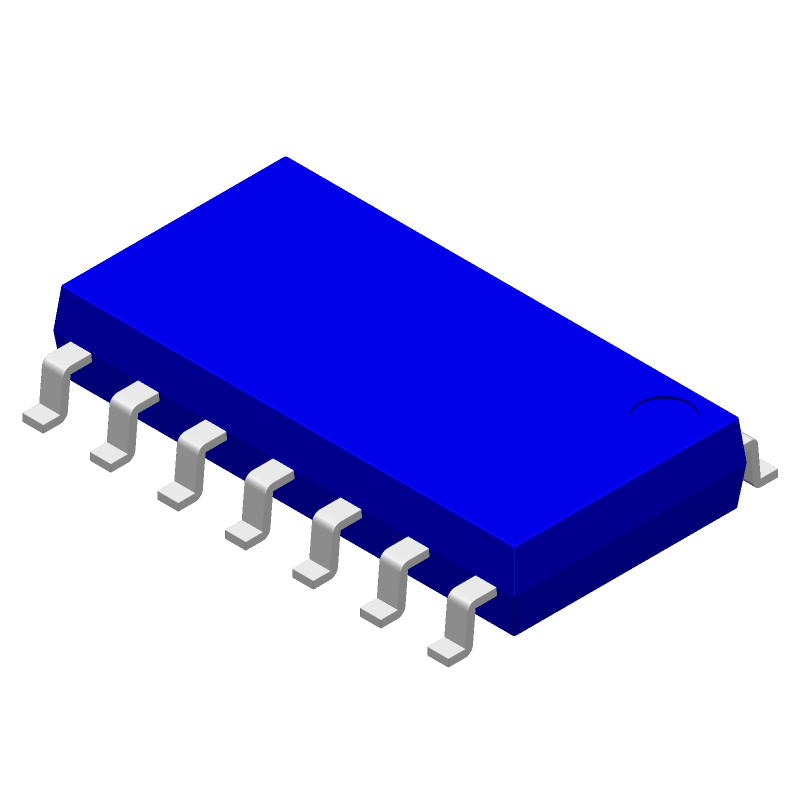

BU2050F-E2 CAD Models
BU2050F-E2 Part Data Attributes
|
|
BU2050F-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BU2050F-E2
ROHM Semiconductor
SIPO Based Peripheral Driver, 0.025A, CMOS, PDSO14, SOP-14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SOIC | |
| Package Description | SOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | COMMON-ANODE | |
| Display Mode | SEGMENT | |
| Interface IC Type | SIPO BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e2 | |
| Length | 8.7 mm | |
| Number of Functions | 1 | |
| Number of Segments | 8 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | SOURCE AND SINK | |
| Output Peak Current Limit-Nom | 0.025 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Turn-off Time | 0.1 µs | |
| Turn-on Time | 0.1 µs | |
| Width | 4.4 mm |
