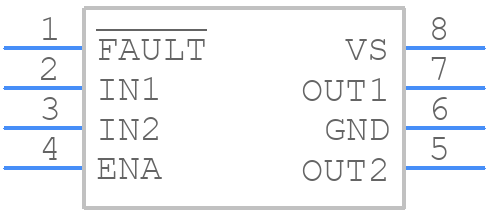

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BTS3408GXUMA2 by Infineon Technologies AG
Results Overview of BTS3408GXUMA2 by Infineon Technologies AG
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BTS3408GXUMA2 Information
BTS3408GXUMA2 by Infineon Technologies AG is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for BTS3408GXUMA2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50Y1848
|
Newark | Power Load Sw, Low Side, -40 To 150Deg C, Power Load Switch Type:Low Side, No. Of Channels:2Channels, Input Voltage:60V, Current Limit:1.5A, On State Resistance:0.48Ohm, Ic Case/Package:Soic, No. Of Pins:8Pins, Qualification:- Rohs Compliant: Yes |Infineon BTS3408GXUMA2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 2299 |
|
$2.4400 | Buy Now |
|
DISTI #
BTS3408GXUMA2CT-ND
|
DigiKey | IC PWR SWITCH N-CHAN 1:1 8SOIC Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1840 In Stock |
|
$1.2412 / $2.4600 | Buy Now |
|
DISTI #
BTS3408GXUMA2
|
Avnet Americas | Power Switch Lo Side 0.55A 8-Pin DSO - Tape and Reel (Alt: BTS3408GXUMA2) RoHS: Not Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 53 Weeks, 1 Days Container: Reel | 0 |
|
$1.0742 / $1.1299 | Buy Now |
|
DISTI #
50Y1848
|
Avnet Americas | Smart Power Switch, DMOS Output Stages, Low Side, 2 Outputs, 60V, 1.5A, SOIC-8 - Product that comes on tape, but is not reeled (Alt: 50Y1848) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 45 Weeks, 4 Days Container: Ammo Pack | 0 |
|
$1.7300 / $2.7400 | Buy Now |
|
DISTI #
83646726
|
Verical | Current Limit SW 2-IN 2-OUT -0.3V to 7V 2A Automotive AEC-Q100 8-Pin DSO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 2500 |
|
$1.4107 / $1.4554 | Buy Now |
|
DISTI #
BTS3408G
|
TME | IC: power switch, low-side, 550mA, Ch: 2, N-Channel, SMD, PG-DSO-8 Min Qty: 1 | 288 |
|
$1.5200 / $2.6800 | Buy Now |
|
DISTI #
BTS3408GXUMA2
|
IBS Electronics | BTS3408G SERIES 550 MOHM 1.5 A SMT SMART LOW SIDE POWER SWITCH - SOIC-8 Min Qty: 2500 Package Multiple: 1 | 0 |
|
$1.3520 | Buy Now |
|
DISTI #
ICIFP45537
|
Rutronik | 2xLSS 550mOhm 60V SO-8 SMD RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Container: Reel |
Stock DE - 5000 Stock HK - 0 Stock US - 0 Stock SG - 0 |
|
$1.5600 | Buy Now |
|
|
Chip Stock | 5000 |
|
RFQ | ||
|
DISTI #
SP001027114
|
EBV Elektronik | Power Switch Lo Side 055A 8Pin DSO (Alt: SP001027114) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for BTS3408GXUMA2
BTS3408GXUMA2 CAD Models
BTS3408GXUMA2 Part Data Attributes
|
|
BTS3408GXUMA2
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
BTS3408GXUMA2
Infineon Technologies AG
Buffer/Inverter Based Peripheral Driver, 2 Driver, 0.55A, MOS, PDSO8, GREEN, PLASTIC, SOP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Part Package Code | SOIC | |
| Package Description | SOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 45 Weeks, 4 Days | |
| Samacsys Manufacturer | Infineon | |
| Built-in Protections | TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | SINK | |
| Output Peak Current Limit-Nom | 0.55 A | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 4 mA | |
| Supply Voltage-Max | 60 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | BCD | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Turn-off Time | 8 µs | |
| Turn-on Time | 8 µs | |
| Width | 4 mm |
