BTS3104SDR Information
BTS3104SDR by Infineon Technologies AG is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for BTS3104SDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
726-BTS3104SDR
|
Mouser Electronics | Power Switch ICs - Power Distribution HITFET SMART LOWSIDE PWR SW RoHS: Compliant | 12524 |
|
$0.7690 / $2.6300 | Buy Now |
|
|
Win Source Electronics | Smart Low Side Power Switch | 5000 |
|
$1.4444 / $2.1666 | Buy Now |
Part Details for BTS3104SDR

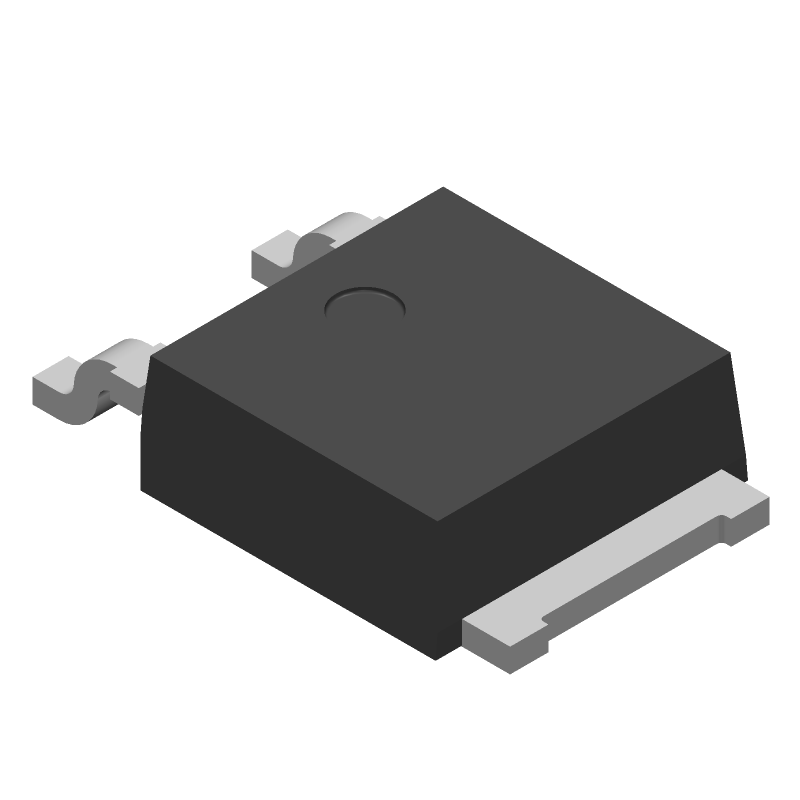

BTS3104SDR CAD Models
BTS3104SDR Part Data Attributes
|
|
BTS3104SDR
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
BTS3104SDR
Infineon Technologies AG
Buffer/Inverter Based Peripheral Driver, 1 Driver, 2.5A, MOS, PSSO3, GREEN, PLASTIC, TO-252, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Part Package Code | TO-252 | |
| Package Description | GREEN, PLASTIC, TO-252, 3 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Samacsys Manufacturer | Infineon | |
| Built-in Protections | TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL | |
| Driver Number of Bits | 1 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PSSO-G3 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Peak Current Limit-Nom | 2.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP3H,.38,90TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 2.35 mm | |
| Supply Voltage-Max | 10 V | |
| Supply Voltage-Min | 2 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | MOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.28 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Turn-off Time | 200 µs | |
| Turn-on Time | 120 µs | |
| Width | 6.22 mm |
