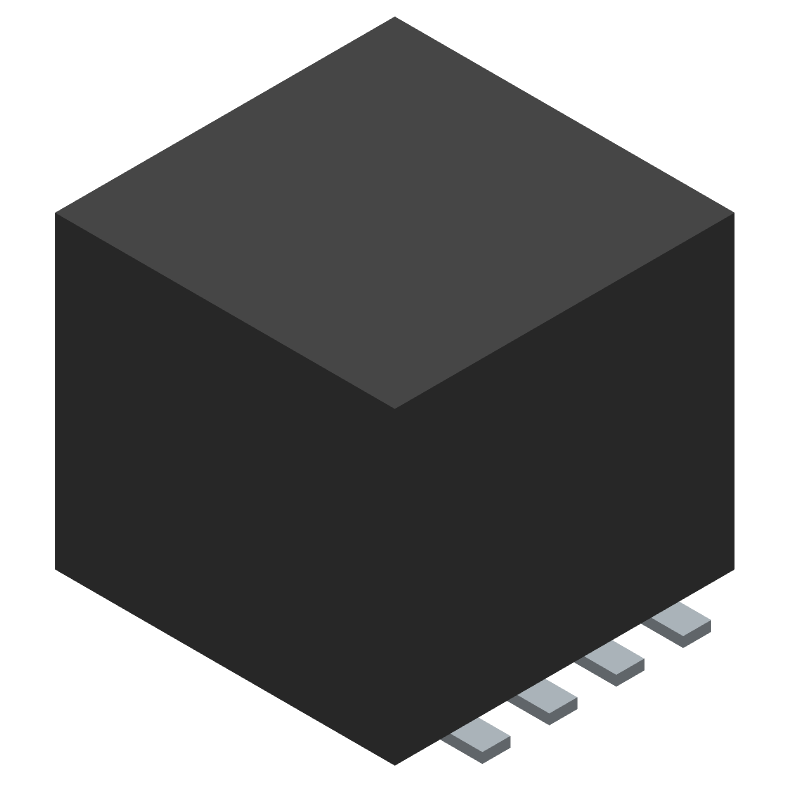

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSZ040N06LS5ATMA1 by Infineon Technologies AG
Results Overview of BSZ040N06LS5ATMA1 by Infineon Technologies AG
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Energy and Power Systems
Renewable Energy
Motor control systems
BSZ040N06LS5ATMA1 Information
BSZ040N06LS5ATMA1 by Infineon Technologies AG is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BSZ040N06LS5ATMA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39AH8782
|
Newark | Mosfet, N-Ch, 60V, 150Deg C, 69W Rohs Compliant: Yes |Infineon BSZ040N06LS5ATMA1 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5849 |
|
$0.7100 / $1.5700 | Buy Now |
|
DISTI #
86AK4585
|
Newark | Mosfet, N-Ch, 60V, 40A, Tsdson-Fl Rohs Compliant: Yes |Infineon BSZ040N06LS5ATMA1 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.6970 | Buy Now |
|
DISTI #
448-BSZ040N06LS5ATMA1CT-ND
|
DigiKey | MOSFET N-CH 60V 40A TSDSON Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
67450 In Stock |
|
$0.6478 / $1.8100 | Buy Now |
|
DISTI #
BSZ040N06LS5ATMA1
|
Avnet Americas | Power MOSFET, N Channel, 60 V, 40 A, 0.0033 ohm, TSDSON-FL, Surface Mount - Tape and Reel (Alt: BSZ040N06LS5ATMA1) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel | 55000 |
|
$0.4812 | Buy Now |
|
DISTI #
726-BSZ040N06LS5ATMA
|
Mouser Electronics | MOSFETs MV POWER MOS RoHS: Compliant | 30012 |
|
$0.6580 / $1.7700 | Buy Now |
|
DISTI #
V72:2272_16563285
|
Arrow Electronics | Trans MOSFET N-CH 60V 17A 8-Pin TSDSON EP T/R Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2228 Container: Cut Strips | Americas - 1225 |
|
$0.5957 / $1.6902 | Buy Now |
|
DISTI #
73928896
|
RS | Transistor, MOSFET, N-channel, power-transistor, 60V, halogen-free, Id 40A Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 0 Days Container: Bulk | 5 |
|
$1.3400 / $1.7900 | Buy Now |
|
|
Future Electronics | Trans MOSFET N-CH 60V 17A 8-Pin TSDSON EP T/R RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks Container: Reel | 5000Reel |
|
$0.5350 | Buy Now |
|
|
Future Electronics | Trans MOSFET N-CH 60V 17A 8-Pin TSDSON EP T/R RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks Container: Reel | 0Reel |
|
$0.5350 | Buy Now |
|
DISTI #
87218562
|
Verical | Trans MOSFET N-CH 60V 17A 8-Pin TSDSON EP T/R Min Qty: 377 Package Multiple: 1 Date Code: 2201 | Americas - 104212 |
|
$0.9966 | Buy Now |
Part Details for BSZ040N06LS5ATMA1
BSZ040N06LS5ATMA1 CAD Models
BSZ040N06LS5ATMA1 Part Data Attributes
|
|
BSZ040N06LS5ATMA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
BSZ040N06LS5ATMA1
Infineon Technologies AG
Power Field-Effect Transistor, 17A I(D), 60V, 0.004ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TSDSON-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | TSDSON-8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Avalanche Energy Rating (Eas) | 117 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 60 V | |
| Drain Current-Max (ID) | 17 A | |
| Drain-source On Resistance-Max | 0.004 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 8 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | N-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 160 A | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
BSZ040N06LS5ATMA1 Frequently Asked Questions (FAQ)
-
The BSZ040N06LS5ATMA1 has an operating temperature range of -55°C to 175°C.
-
To minimize switching losses, ensure the gate drive voltage is sufficient (typically 10-15V), and the gate resistance is minimized (e.g., using a low-impedance gate driver).
-
To minimize parasitic inductance, use a compact PCB layout with short, wide traces, and place the MOSFET close to the power source. Avoid using vias or narrow traces near the MOSFET.
-
Use a TVS diode or a zener diode to clamp overvoltages, and consider adding a current sense resistor and a fuse to detect and respond to overcurrent conditions.
-
The recommended gate resistor value depends on the specific application, but a typical value is in the range of 10-100 ohms.
