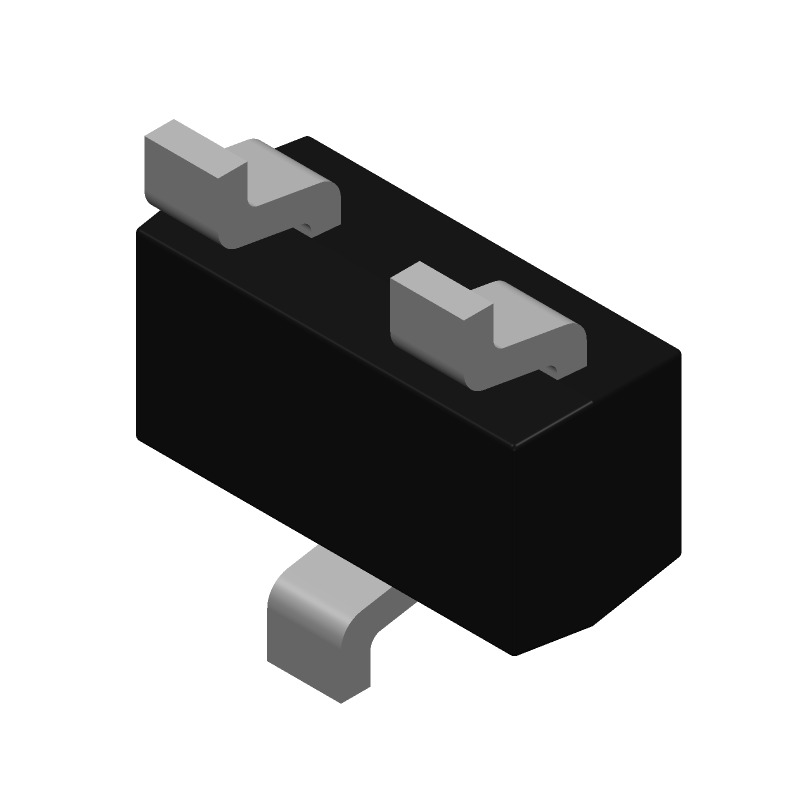

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSS138KT-TP by Micro Commercial Components
Results Overview of BSS138KT-TP by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BSS138KT-TP Information
BSS138KT-TP by Micro Commercial Components is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BSS138KT-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-BSS138KT-TPCT-ND
|
DigiKey | N-CHANNEL MOSFET, SOT-523 Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
14143 In Stock |
|
$0.0311 / $0.2600 | Buy Now |
|
DISTI #
833-BSS138KT-TP
|
Mouser Electronics | MOSFETs N-CHANNEL MOSFET, SOT-523 RoHS: Compliant | 872 |
|
$0.0320 / $0.2600 | Buy Now |
|
|
Vyrian | Transistors | 6845 |
|
RFQ |
Part Details for BSS138KT-TP
BSS138KT-TP CAD Models
BSS138KT-TP Part Data Attributes
|
|
BSS138KT-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BSS138KT-TP
Micro Commercial Components
Small Signal Field-Effect Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2020-10-09 | |
| Samacsys Manufacturer | MCC | |
| DS Breakdown Voltage-Min | 50 V | |
| Drain Current-Max (ID) | 0.25 A | |
| Drain-source On Resistance-Max | 2.5 Ω | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
BSS138KT-TP Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the BSS138KT-TP is -55°C to 150°C.
-
Yes, the BSS138KT-TP is suitable for high-frequency switching applications due to its low capacitance and fast switching times.
-
The maximum allowable power dissipation for the BSS138KT-TP is 1.44W at a junction temperature of 25°C.
-
Yes, the BSS138KT-TP can be used in high-voltage applications up to 50V, but it's essential to ensure that the device is properly biased and that the maximum voltage ratings are not exceeded.
-
The BSS138KT-TP is a logic-level MOSFET, which means it can be driven directly from a microcontroller or other low-voltage logic source.
