Transistors / Small Signal Field-Effect Transistors / BSS138BKDW-TP
Datasheets
BSS138BKDW-TP by: Micro Commercial Components

Small Signal Field-Effect Transistor, 0.22A I(D), 50V,

Part Details for BSS138BKDW-TP by Micro Commercial Components

Results Overview of BSS138BKDW-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

BSS138BKDW-TP Information

BSS138BKDW-TP by Micro Commercial Components is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for BSS138BKDW-TP

Part # Distributor Description Stock Price Buy
DISTI # 353-BSS138BKDW-TPCT-ND
DigiKey MOSFET 2N-CH 50V 0.22A SOT363 Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 3805
In Stock
  • 1 $0.4600
  • 10 $0.2820
  • 100 $0.1787
  • 500 $0.1337
  • 1,000 $0.1192
  • 3,000 $0.1006
  • 6,000 $0.0913
  • 9,000 $0.0865
  • 15,000 $0.0812
  • 21,000 $0.0780
  • 30,000 $0.0749
  • 75,000 $0.0682
$0.0682 / $0.4600 Buy Now
DISTI # 833-BSS138BKDW-TP
Mouser Electronics MOSFETs 0
  • 1 $0.4500
  • 10 $0.2820
  • 100 $0.1340
  • 1,000 $0.1170
  • 3,000 $0.0760
  • 9,000 $0.0650
$0.0650 / $0.4500 Order Now

Part Details for BSS138BKDW-TP

BSS138BKDW-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

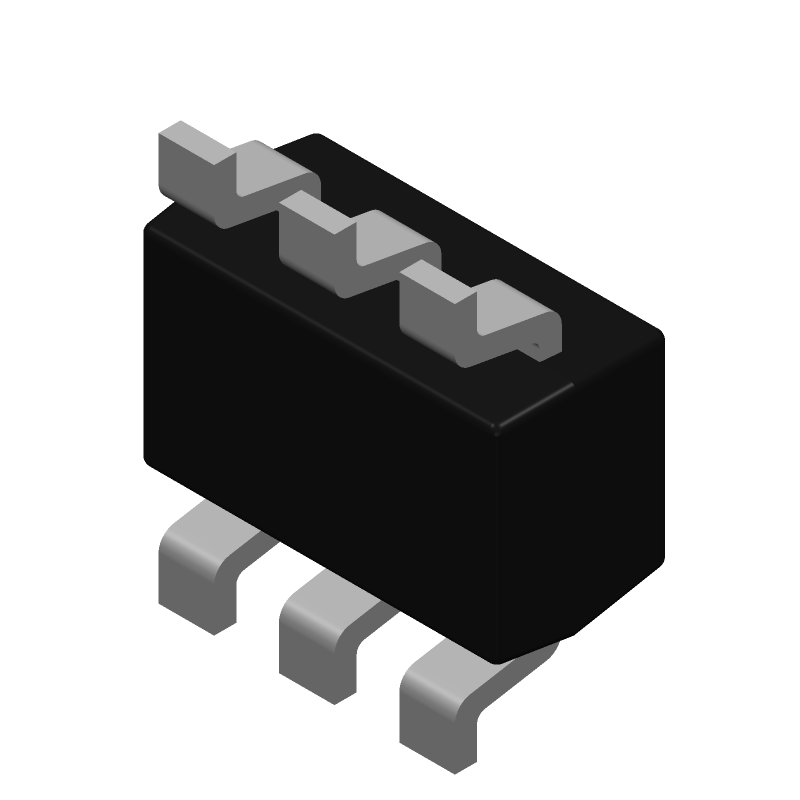

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BSS138BKDW-TP Part Data Attributes

Parametric Data
BSS138BKDW-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
BSS138BKDW-TP Micro Commercial Components Small Signal Field-Effect Transistor, 0.22A I(D), 50V,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer MCC
DS Breakdown Voltage-Min 50 V
Drain Current-Max (ID) 0.22 A
Drain-source On Resistance-Max 1.1 Ω
