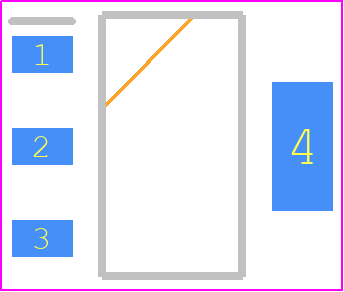

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSP373NH6327XTSA1 by Infineon Technologies AG
Results Overview of BSP373NH6327XTSA1 by Infineon Technologies AG
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BSP373NH6327XTSA1 Information
BSP373NH6327XTSA1 by Infineon Technologies AG is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BSP373NH6327XTSA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2617435
|
Farnell | MOSFET, N-CH, 100V, 1.8A, SOT-223-4 RoHS: Compliant Min Qty: 1 Lead time: 15 Weeks, 1 Days Container: Cut Tape | 342 |
|
$0.3190 / $1.0114 | Buy Now |
|
DISTI #
2617435RL
|
Farnell | MOSFET, N-CH, 100V, 1.8A, SOT-223-4 RoHS: Compliant Min Qty: 50 Lead time: 15 Weeks, 1 Days Container: Reel | 342 |
|
$0.3190 / $0.5250 | Buy Now |
|
DISTI #
4319022
|
Farnell | MOSFET, N-CH, 100V, 1.8A, SOT-223 RoHS: Compliant Min Qty: 1000 Lead time: 15 Weeks, 1 Days Container: Reel | 0 |
|
$0.2406 / $0.2804 | Buy Now |
|
DISTI #
BSP373NH6327XTSA1CT-ND
|
DigiKey | MOSFET N-CH 100V 1.8A SOT223-4 Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5236 In Stock |
|
$0.1991 / $0.9800 | Buy Now |
|
DISTI #
BSP373NH6327XTSA1
|
Avnet Americas | Trans MOSFET N-CH 100V 1.8A 4-Pin SOT-223 T/R - Tape and Reel (Alt: BSP373NH6327XTSA1) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
$0.1627 / $0.1733 | Buy Now |
|
DISTI #
726-BSP373NH6327XTSA
|
Mouser Electronics | MOSFETs N-Ch 100V 1.8A SOT-223-3 RoHS: Compliant | 2934 |
|
$0.1990 / $0.9600 | Buy Now |
|
DISTI #
E02:0323_07107340
|
Arrow Electronics | Trans MOSFET N-CH 100V 1.8A Automotive AEC-Q101 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks Date Code: 2512 | Europe - 22000 |
|
$0.2250 / $0.3019 | Buy Now |
|
DISTI #
88084479
|
Verical | Trans MOSFET N-CH 100V 1.8A Automotive AEC-Q101 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2512 | Americas - 22000 |
|
$0.2262 / $0.3035 | Buy Now |
|
DISTI #
70331011
|
Verical | Trans MOSFET N-CH 100V 1.8A Automotive AEC-Q101 4-Pin(3+Tab) SOT-223 T/R RoHS: Compliant Min Qty: 93 Package Multiple: 1 Date Code: 2236 | Americas - 3960 |
|
$0.2340 / $0.4720 | Buy Now |
|
DISTI #
BSP373NH6327XTSA1
|
TME | Transistor: N-MOSFET, unipolar, 100V, 1.8A, 1.8W, SOT223 Min Qty: 1 | 642 |
|
$0.3640 / $1.1800 | Buy Now |
Part Details for BSP373NH6327XTSA1
BSP373NH6327XTSA1 CAD Models
BSP373NH6327XTSA1 Part Data Attributes
|
|
BSP373NH6327XTSA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
BSP373NH6327XTSA1
Infineon Technologies AG
Small Signal Field-Effect Transistor, 1-Element, Silicon, GREEN, PLASTIC PACKAGE-4
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | SOT-223, 4 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | AVALANCHE RATED | |
| Avalanche Energy Rating (Eas) | 33 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 100 V | |
| Drain Current-Max (ID) | 1.8 A | |
| Drain-source On Resistance-Max | 0.24 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 21 pF | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 1.8 W | |
| Pulsed Drain Current-Max (IDM) | 7.3 A | |
| Reference Standard | AEC-Q101 | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Transistor Element Material | SILICON | |
| Turn-off Time-Max (toff) | 53.2 ns | |
| Turn-on Time-Max (ton) | 15.81 ns |
