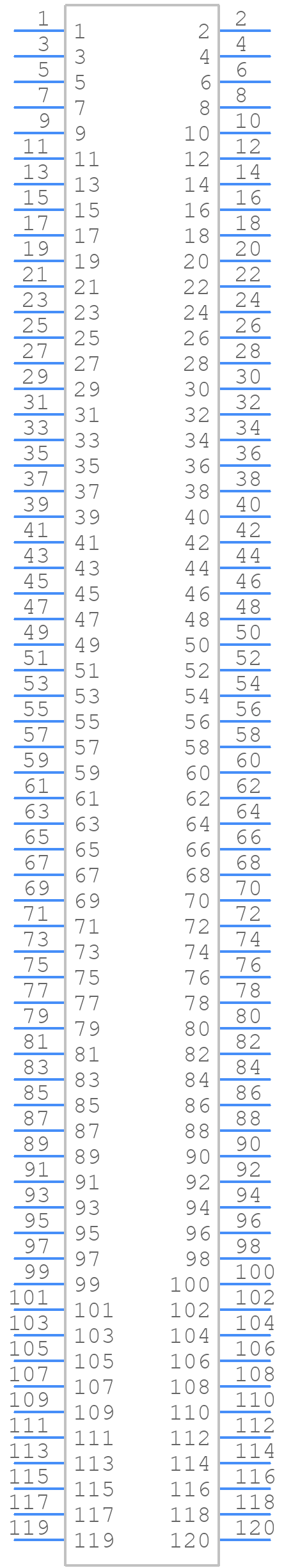

Part Symbol
-

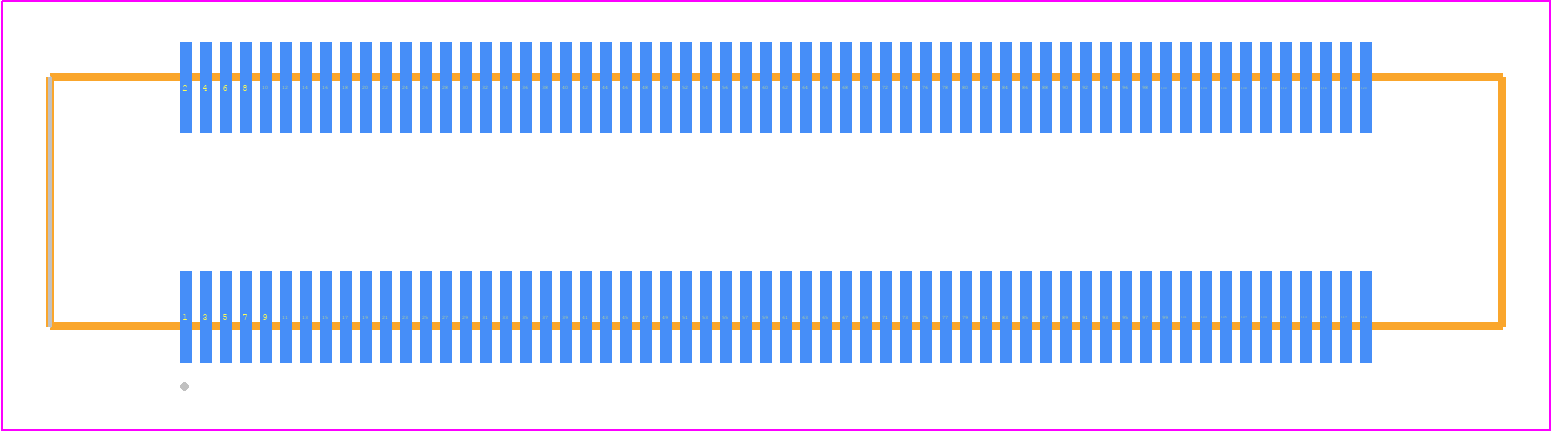

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BSH-060-01-F-D by Samtec Inc
Results Overview of BSH-060-01-F-D by Samtec Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BSH-060-01-F-D Information
BSH-060-01-F-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for BSH-060-01-F-D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BSH-060-01-F-D-ND
|
DigiKey | CONN SOCKET 120POS SMD GOLD Min Qty: 75 Lead time: 6 Weeks Container: Tray | Temporarily Out of Stock |
|
$5.8469 | Buy Now |
|
DISTI #
200-BSH06001FD
|
Mouser Electronics | Board to Board & Mezzanine Connectors 0.50 mm Basic Blade & Beam Socket Strip RoHS: Compliant | 91 |
|
$4.5300 / $5.8200 | Buy Now |
|
|
Onlinecomponents.com | 0.50 mm Basic Blade & Beam Socket Strip RoHS: Compliant | 0 |
|
$3.5300 / $8.3700 | Buy Now |
|
|
Quest Components | BOARD CONNECTOR, 120 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.02 INCH PITCH, SURFACE MOUNT TERMINAL, SOCKET | 13 |
|
$3.9750 / $7.9500 | Buy Now |
|
DISTI #
5cd8d4eccd7c1c4c38212282
|
Samtec | 0.50 mm Basic Blade & Beam Socket Strip RoHS: Compliant Min Qty: 75 Lead time: 8 Weeks, 4 Days Container: Tray | 0 |
|
$2.2600 / $5.8200 | Buy Now |
|
|
Master Electronics | 0.50 mm Basic Blade & Beam Socket Strip RoHS: Compliant | 0 |
|
$3.5300 / $8.3700 | Buy Now |
Part Details for BSH-060-01-F-D
BSH-060-01-F-D CAD Models
BSH-060-01-F-D Part Data Attributes
|
|
BSH-060-01-F-D
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
BSH-060-01-F-D
Samtec Inc
Board Connector, 120 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Socket,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 4 Weeks, 5 Days | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | NONE | |
| Body Breadth | 0.285 inch | |
| Body Depth | 0.12 inch | |
| Body Length | 1.428 inch | |
| Body/Shell Style | SOCKET | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.02 inch | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 5.715 mm | |
| Plating Thickness | FLASH inch | |
| Polarization Key | SHRD ENDS | |
| Rated Current (Signal) | 1.25 A | |
| Reference Standard | UL | |
| Terminal Pitch | 0.5 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 120 | |
| UL Flammability Code | 94V-0 |
