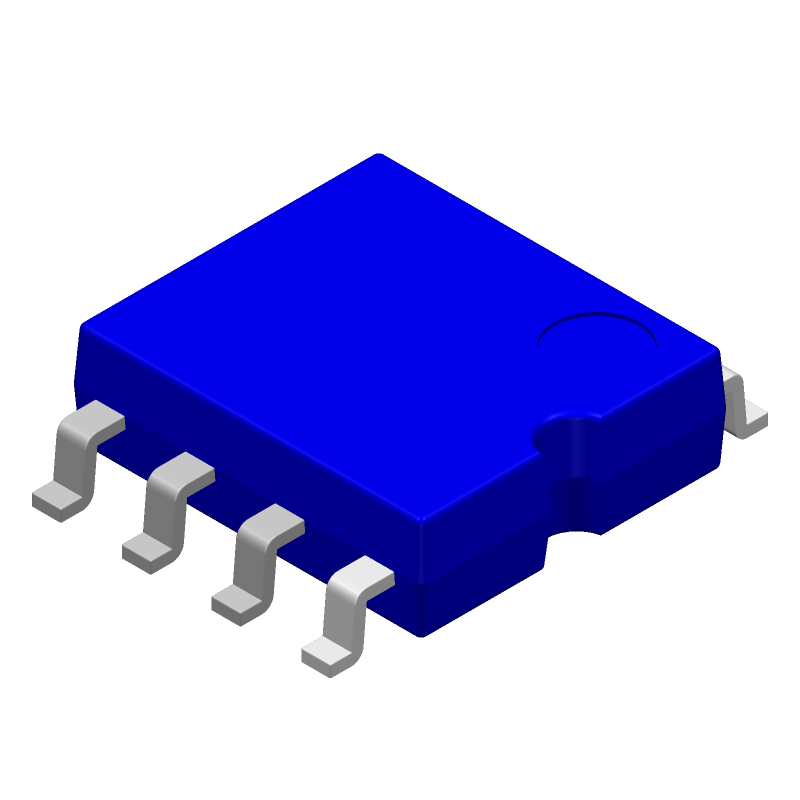

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BR93H46RF-2CE2 by ROHM Semiconductor
Results Overview of BR93H46RF-2CE2 by ROHM Semiconductor
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
BR93H46RF-2CE2 Information
BR93H46RF-2CE2 by ROHM Semiconductor is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for BR93H46RF-2CE2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BR93H46RF-2CE2CT-ND
|
DigiKey | IC EEPROM 1KBIT SPI 2MHZ 8SOP Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.3037 / $0.4500 | Buy Now |
|
DISTI #
755-BR93H46RF-2CE2
|
Mouser Electronics | EEPROM (3-Wire) 2MHz 1Kbit 2.5-5.5V RoHS: Compliant | 0 |
|
$0.2900 / $0.4500 | Order Now |
|
DISTI #
60613461
|
Verical | EEPROM Serial-3Wire 1K-bit 64 x 16 3.3V/5V Automotive 8-Pin SOP T/R RoHS: Compliant Min Qty: 178 Package Multiple: 1 Date Code: 1801 | Americas - 2500 |
|
$0.3986 / $0.4589 | Buy Now |
|
DISTI #
86988032
|
Verical | EEPROM Serial-3Wire 1K-bit 64 x 16 3.3V/5V Automotive 8-Pin SOP T/R RoHS: Compliant Min Qty: 18 Package Multiple: 1 Date Code: 1201 | Americas - 18 |
|
$4.3748 | Buy Now |
|
|
Quest Components | 2014 |
|
$0.4095 / $1.1700 | Buy Now |
Part Details for BR93H46RF-2CE2
BR93H46RF-2CE2 CAD Models
BR93H46RF-2CE2 Part Data Attributes
|
|
BR93H46RF-2CE2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BR93H46RF-2CE2
ROHM Semiconductor
EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | SOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | SEATED HT-CALCULATED | |
| Clock Frequency-Max (fCLK) | 2 MHz | |
| Data Retention Time-Min | 100 | |
| Endurance | 1000000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 5 mm | |
| Memory Density | 1024 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 16 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 64 words | |
| Number of Words Code | 64 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 64X16 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.71 mm | |
| Serial Bus Type | MICROWIRE | |
| Standby Current-Max | 0.00001 A | |
| Supply Current-Max | 0.003 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 4 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4.4 mm | |
| Write Cycle Time-Max (tWC) | 4 ms | |
| Write Protection | SOFTWARE |
