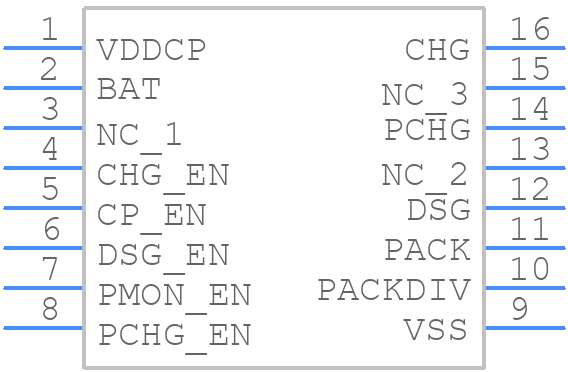

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BQ76200PW by Texas Instruments
Results Overview of BQ76200PW by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Smart Cities
Energy and Power Systems
Agriculture Technology
Renewable Energy
Telecommunications
Automotive
BQ76200PW Information
BQ76200PW by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BQ76200PW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-43316-5-ND
|
DigiKey | IC BATT PROT MULTI 3-16C 16TSSOP Min Qty: 1 Lead time: 18 Weeks Container: Tube |
543 In Stock |
|
$1.4717 / $2.8500 | Buy Now |
|
DISTI #
595-BQ76200PW
|
Mouser Electronics | Battery Management Fast high side NCH d rive A 595-BQ76200PWR RoHS: Compliant | 891 |
|
$1.4100 / $4.2000 | Buy Now |
|
|
Bristol Electronics | 320 |
|
RFQ | ||
|
|
Quest Components | POWER SUPPLY SUPPORT CIRCUIT, FIXED, 1 CHANNEL, PDSO16 | 256 |
|
$6.1875 / $11.2500 | Buy Now |
|
DISTI #
BQ76200PW
|
TME | IC: PMIC, battery monitor, 8÷75V, 3-16 x PbA, TSSOP16, 0÷75VDC Min Qty: 1 | 0 |
|
$1.4300 / $2.3000 | RFQ |
|
|
Vyrian | Other Function Semiconductors | 29023 |
|
RFQ | |
|
|
Win Source Electronics | IC BATT PROT MULTI 3-16C 16TSSOP | 54000 |
|
$0.4667 / $0.6027 | Buy Now |
Part Details for BQ76200PW
BQ76200PW CAD Models
BQ76200PW Part Data Attributes
|
|
BQ76200PW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
BQ76200PW
Texas Instruments
High-side n-channel FET driver 16-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TSSOP-16 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustable Threshold | NO | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| Input Voltage-Max | 75 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max (Isup) | 0.06 mA | |
| Supply Voltage-Max (Vsup) | 75 V | |
| Supply Voltage-Min (Vsup) | 8 V | |
| Supply Voltage-Nom (Vsup) | 48.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
