BM04B-PASS-1-TFT(LF)(SN) by: JST Manufacturing

Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,

Part Details for BM04B-PASS-1-TFT(LF)(SN) by JST Manufacturing

Results Overview of BM04B-PASS-1-TFT(LF)(SN) by JST Manufacturing

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BM04B-PASS-1-TFT(LF)(SN) Information

BM04B-PASS-1-TFT(LF)(SN) by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for BM04B-PASS-1-TFT(LF)(SN)

Part # Distributor Description Stock Price Buy
DISTI # 53X3012
Newark Wire-To-Board Connector, Pa Series, Surface Mount, Header, 4, 2 Mm, Tin Plated Contacts Rohs Compliant: Yes |Jst/japan Solderless Terminals BM04B-PASS-1-TFT(LF)(SN) RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 20000
  • 1 $0.5570
  • 1,000 $0.5110
  • 1,500 $0.4820
  • 2,500 $0.4640
  • 5,000 $0.4500
  • 12,500 $0.4210
$0.4210 / $0.5570 Buy Now
DISTI # 62X8753
Newark Conn, Header, 4Pos, 1Row, 2Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2Mm, No. Of Rows:1Rows, No. Of Contacts:4Contacts, Contact Termination Type:Surface Mount Straight, Product Range:Pa Series, Connector Shroud:Shrouded Rohs Compliant: Yes |Jst/japan Solderless Terminals BM04B-PASS-1-TFT(LF)(SN) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 1263
  • 1 $0.5280
  • 10 $0.5280
  • 100 $0.5280
$0.5280 Buy Now
DISTI # 306-4BPASS1TFTL
Mouser Electronics Headers & Wire Housings 4 Position Single Row 2 mm Top Entry SMT Shrouded Header RoHS: Compliant 12495
  • 1 $0.7400
  • 10 $0.6290
  • 25 $0.5970
  • 100 $0.5350
  • 250 $0.5160
  • 500 $0.4680
  • 1,000 $0.4150
  • 4,000 $0.3770
  • 8,000 $0.3460
$0.3460 / $0.7400 Buy Now
Future Electronics 4 Position Single Row 2 mm Top Entry SMT Shrouded Header RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 16 Weeks Container: Reel 500
Reel
  • 500 $0.3950
  • 1,000 $0.3900
  • 1,500 $0.3850
  • 2,500 $0.3750
$0.3750 / $0.3950 Buy Now
DISTI # JSTBM04B-PASS-1-TFTLFSN.P
Heilind Electronics CUT TAPE - PA SERIES, 4 POS, 2.00MM, SMT, T/E Americas - 32 in Stock
  • 1 $0.7363
  • 43 $0.7363
$0.7363 Buy Now
Future Electronics 4 Position Single Row 2 mm Top Entry SMT Shrouded Header Min Qty: 500 Package Multiple: 500 500
null
  • 500 $0.3950
  • 1,000 $0.3900
  • 1,500 $0.3850
  • 2,500 $0.3750
$0.3750 / $0.3950 Buy Now
DISTI # BM04B-PASS-1-TFT(LF)(SN)
IBS Electronics CONNECTOR HEADER PA SERIES 4 POSITION 2.00MM SURFACE MOUNT TOP ENTRY 250V WITH BOSS TIN NATURAL Min Qty: 500 Package Multiple: 1 500
  • 500 $0.5135
  • 1,000 $0.5070
  • 1,500 $0.5005
  • 2,000 $0.5005
  • 2,500 $0.4875
$0.4875 / $0.5135 Buy Now
DISTI # JSTBM04B-PASS-1-TFTLFSN.P
Interstate Connecting Components CUT TAPE - PA SERIES, 4 POS, 2.00MM, SMT, T/E 10
  • 1 $0.7363
  • 43 $0.7363
$0.7363 Buy Now
NexGen Digital   840
RFQ
DISTI # BM04B-PASS-1-TFT(LF)(SN)
Chip One Stop Interconnects RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 18594
  • 5 $0.8800
  • 50 $0.4300
  • 100 $0.3930
  • 200 $0.3910
  • 500 $0.3180
  • 1,000 $0.2980
  • 4,000 $0.2800
  • 8,000 $0.2640
  • 16,000 $0.2460
  • 32,000 $0.2400
$0.2400 / $0.8800 Buy Now
LCSC 1x4P 4P PA Tin 4 -25+85 3A 1 2mm Copper alloy Vertical welding SMDP2mm Wire To Board Connector ROHS 2007
  • 1 $0.4752
  • 10 $0.3786
  • 30 $0.3364
  • 100 $0.2836
  • 500 $0.2384
  • 1,000 $0.2248
$0.2248 / $0.4752 Buy Now
New Advantage Corporation 4 Position Single Row 2 mm Top Entry SMT Shrouded Header RoHS: Compliant Min Qty: 1 Package Multiple: 500 1000
  • 500 $0.6583
  • 1,000 $0.6077
$0.6077 / $0.6583 Buy Now

Part Details for BM04B-PASS-1-TFT(LF)(SN)

BM04B-PASS-1-TFT(LF)(SN) CAD Models

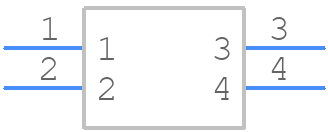

  • Part Symbol

    Part Symbol

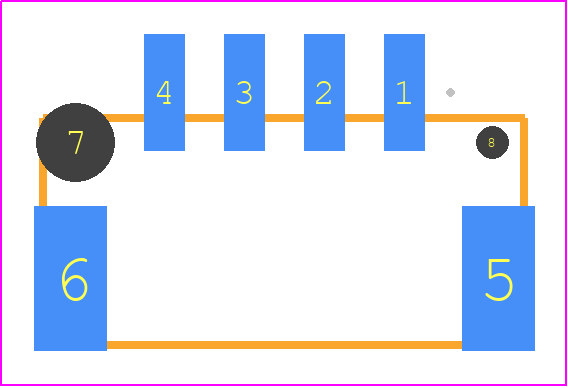

  • Footprint

    footprint

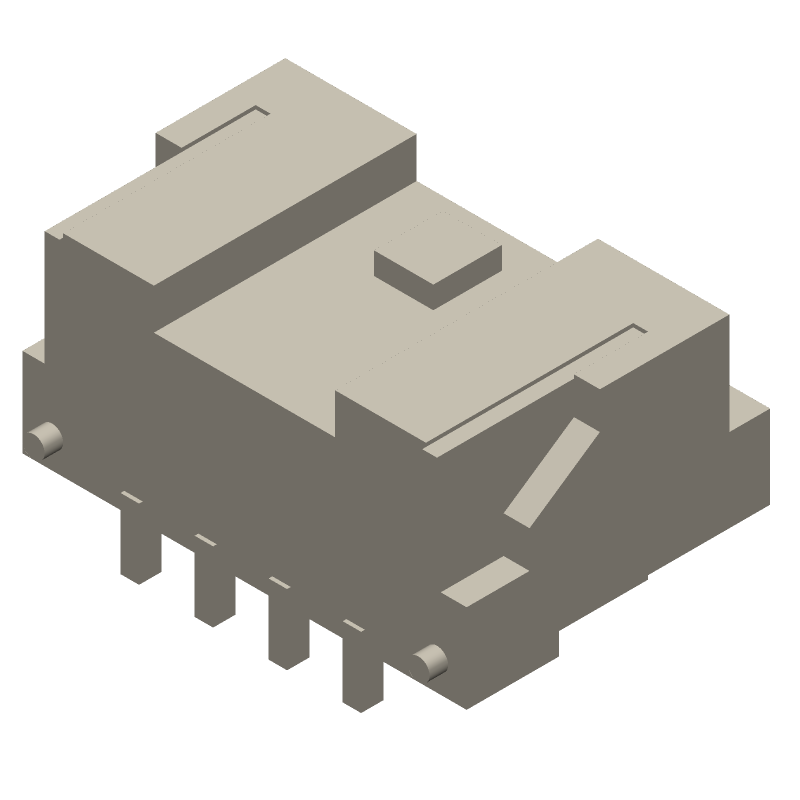

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BM04B-PASS-1-TFT(LF)(SN) Part Data Attributes

Parametric Data
BM04B-PASS-1-TFT(LF)(SN) JST Manufacturing
Buy Now Datasheet
Compare Parts:
BM04B-PASS-1-TFT(LF)(SN) JST Manufacturing Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer J S T MFG CO LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer JST (JAPAN SOLDERLESS TERMINALS)
Additional Feature SHROUDED, TOP ENTRY
Body Breadth 0.224 inch
Body Depth 0.35 inch
Body Length 0.472 inch
Connector Type BOARD CONNECTOR
Contact Design PREASSEM CONN
Contact Finish Mating TIN OVER COPPER
Contact Finish Termination Tin (Sn)
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 800VAC V
Filter Feature NO
IEC Conformance NO
Insulation Resistance 1000000000 Ω
Insulator Color IVORY
Insulator Material POLYAMIDE
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.079 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 3 A
Reference Standard UL
Terminal Pitch 2 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 4
UL Flammability Code 94V-0
