BM03B-SRSS-TB Information
BM03B-SRSS-TB by JST Manufacturing is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for BM03B-SRSS-TB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
455-BM03B-SRSS-TBCT-ND
|
DigiKey | CONN HEADER SMD 3POS 1MM Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
34258 In Stock |
|
$0.2232 / $0.4500 | Buy Now |
|
|
Bristol Electronics | 3000 |
|
RFQ | ||
|
DISTI #
BM03B-SRSS-TB
|
TME | Connector: wire-board, socket, male, SH,SR, 1mm, PIN: 3, SMT, 50V, 1A Min Qty: 1 | 31980 |
|
$0.2000 / $0.3620 | Buy Now |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 484 |
|
$0.7500 / $1.1500 | Buy Now |
|
DISTI #
BM03B-SRSS-TB
|
Maritex | Header for PCB, pitch 1.00mm, 3-contacts, SMD, male, top entry, 50V/1A Min Qty: 1 Package Multiple: 1 | 3 |
|
$0.1960 / $0.4990 | Buy Now |
|
|
Win Source Electronics | Disconnectable Insulation displacement connectors | CONN HEADER SMD 3POS 1MM | 108000 |
|
$0.0667 / $0.0861 | Buy Now |
Part Details for BM03B-SRSS-TB

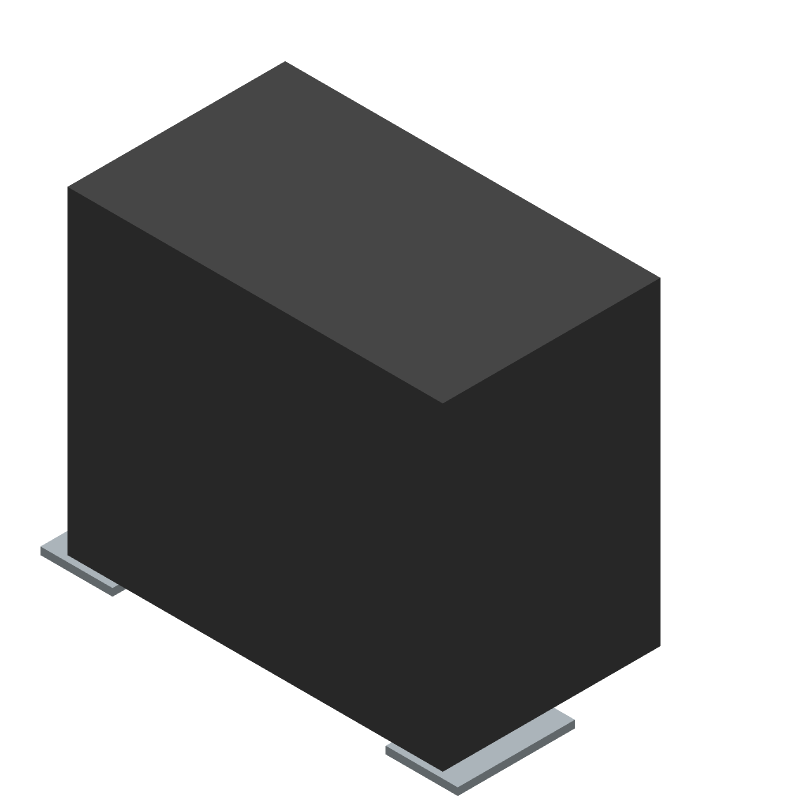

BM03B-SRSS-TB CAD Models
BM03B-SRSS-TB Part Data Attributes
|
|
BM03B-SRSS-TB
JST Manufacturing
Buy Now
Datasheet
|
Compare Parts:
BM03B-SRSS-TB
JST Manufacturing
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | J S T MFG CO LTD | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | JST (JAPAN SOLDERLESS TERMINALS) | |
| Additional Feature | TOP ENTRY | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | TIN | |
| Contact Finish Termination | TIN | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 1 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 3 | |
| UL Flammability Code | 94V-0 |
