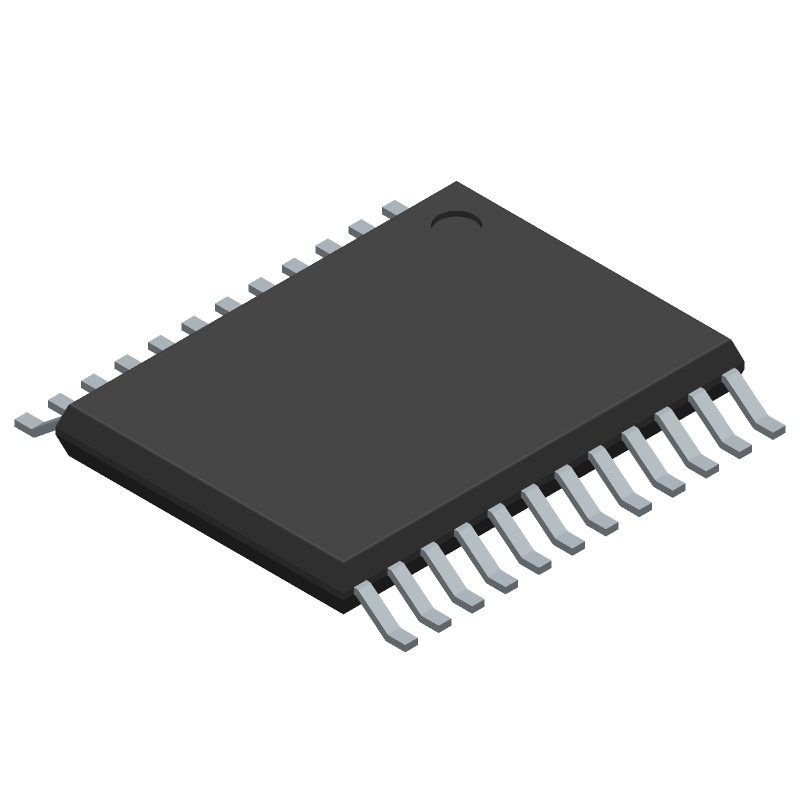

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD99010EFV-ME2 by ROHM Semiconductor
Results Overview of BD99010EFV-ME2 by ROHM Semiconductor
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Industrial Automation
Agriculture Technology
Medical Imaging
Electronic Manufacturing
BD99010EFV-ME2 Information
BD99010EFV-ME2 by ROHM Semiconductor is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BD99010EFV-ME2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BD99010EFV-ME2CT-ND
|
DigiKey | IC REG BUCK 3.3V 2A 24HTSSOP-B Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.1041 / $5.5100 | Buy Now |
|
DISTI #
755-BD99010EFV-ME2
|
Mouser Electronics | Switching Voltage Regulators 3.3Voutput 2A Low Iq DC/DC Buck Converter RoHS: Compliant | 1698 |
|
$2.9600 / $5.7100 | Buy Now |
|
DISTI #
36529988
|
Verical | Conv DC-DC 3.6V to 35V Synchronous Step Down Single-Out 3.3V 2A Automotive 24-Pin HTSSOP-B EP T/R RoHS: Compliant Min Qty: 29 Package Multiple: 1 Date Code: 1801 | Americas - 460 |
|
$2.9664 / $3.8091 | Buy Now |
|
DISTI #
85926339
|
Verical | Conv DC-DC 3.6V to 35V Synchronous Step Down Single-Out 3.3V 2A Automotive 24-Pin HTSSOP-B EP T/R RoHS: Compliant Min Qty: 17 Package Multiple: 1 | Americas - 100 |
|
$3.8800 / $6.0400 | Buy Now |
|
DISTI #
86987387
|
Verical | Conv DC-DC 3.6V to 35V Synchronous Step Down Single-Out 3.3V 2A Automotive 24-Pin HTSSOP-B EP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 1401 | Americas - 2 |
|
$35.0645 | Buy Now |
|
|
Bristol Electronics | 1908 |
|
RFQ | ||
|
|
Quest Components | 1526 |
|
$3.4920 / $6.9840 | Buy Now | |
|
|
Quest Components | 369 |
|
$2.8364 / $5.1570 | Buy Now | |
|
DISTI #
BD99010EFV-ME2
|
Avnet Silica | (Alt: BD99010EFV-ME2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BD99010EFV-ME2
|
Chip One Stop | Semiconductors RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 100 |
|
$2.2300 / $6.0400 | Buy Now |
Part Details for BD99010EFV-ME2
BD99010EFV-ME2 CAD Models
BD99010EFV-ME2 Part Data Attributes
|
|
BD99010EFV-ME2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD99010EFV-ME2
ROHM Semiconductor
DC-DC Regulated Power Supply Module,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | FORCED PULSE WIDTH MODULATION | |
| Input Voltage-Max | 35 V | |
| Input Voltage-Min | 3.6 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-XDSO-G24 | |
| Length | 7.8 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 3.37 V | |
| Output Voltage-Min | 3.23 V | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVSSOP | |
| Package Equivalence Code | TSSOP24,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 500 kHz | |
| Technology | HYBRID | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 5.6 mm |
BD99010EFV-ME2 Frequently Asked Questions (FAQ)
-
ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
-
To ensure stable operation with a high-impedance input source, add a capacitor (e.g., 10nF to 100nF) between the input pin and the GND pin to reduce noise and oscillation. Additionally, consider adding a series resistor (e.g., 1kΩ to 10kΩ) to the input pin to limit the input current.
-
Although the datasheet doesn't specify a maximum voltage for the EN pin, it's recommended to limit the voltage to VCC + 0.3V to prevent damage to the internal circuitry. Typically, this means not exceeding 5.5V for a 5V VCC supply.
-
While the BD99010EFV-ME2 is rated for operation up to 105°C, it's essential to consider the derating of the maximum power dissipation and the potential for reduced reliability at high temperatures. Consult ROHM's application notes and thermal design guidelines for more information.
-
To troubleshoot issues with the output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure the input voltage is within the specified range, the output load is within the recommended range, and the feedback resistors are correctly selected. Also, verify that the output capacitor is suitable for the application and meets the recommended specifications.
