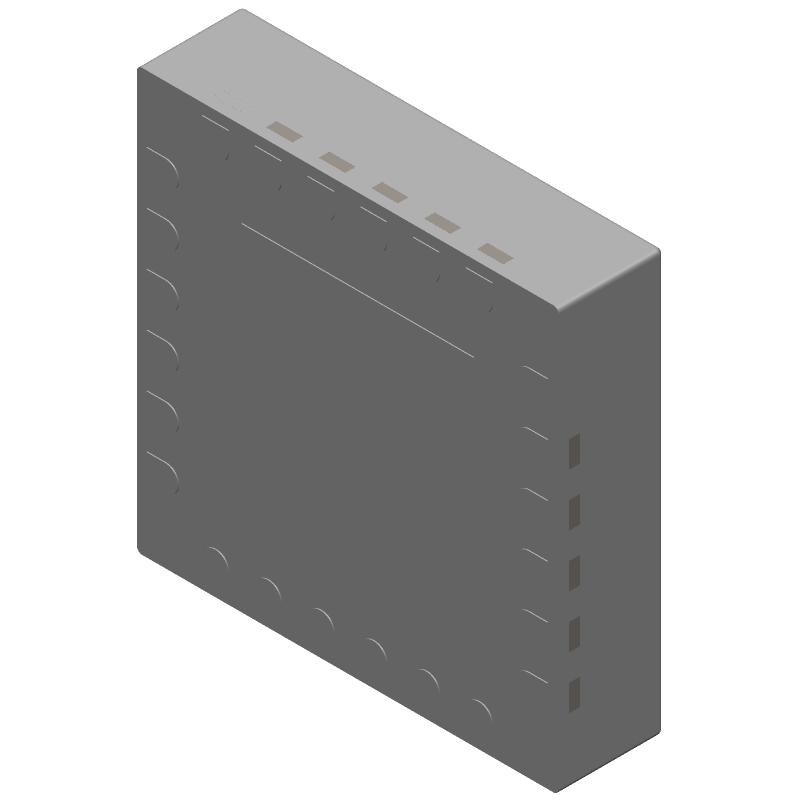

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD95861MUV-E2 by ROHM Semiconductor
Results Overview of BD95861MUV-E2 by ROHM Semiconductor
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BD95861MUV-E2 Information
BD95861MUV-E2 by ROHM Semiconductor is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BD95861MUV-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AH6755
|
Newark | Dc/Dc Conv, Sync Buck, 800Khz, 100Degc, Topology:Synchronous Buck (Step Down), Input Voltage Min:7.5V, Input Voltage Max:18V, No. Of Outputs:1Outputs, Dc/Dc Converter Ic Case:Vqfn, No. Of Pins:24Pins, Output Current:6A, Output Rohs Compliant: Yes |Rohm BD95861MUV-E2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 85 |
|
$0.8610 / $1.7500 | Buy Now |
|
DISTI #
BD95861MUV-E2CT-ND
|
DigiKey | IC REG BUCK ADJ 6A 20VQFN Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
8847 In Stock |
|
$0.7827 / $1.6400 | Buy Now |
|
DISTI #
755-BD95861MUV-E2
|
Mouser Electronics | Switching Voltage Regulators IC Pwr Swtch Reg Integrated FET RoHS: Compliant | 14856 |
|
$0.7350 / $1.6400 | Buy Now |
|
|
Future Electronics | BD95861MUV Series 18 V 6A 1 ch Synchronous Buck DC/DC Converter - VQFN-24 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 17 Weeks Container: Reel | 15000Reel |
|
$0.7100 | Buy Now |
|
DISTI #
87625666
|
Verical | Conv DC-DC 7.5V to 18V Step Down Single-Out 0.8V to 5.5V 6A 24-Pin VQFN-V EP T/R Min Qty: 87 Package Multiple: 1 Date Code: 2401 | Americas - 2500 |
|
$1.6072 | Buy Now |
|
DISTI #
69268299
|
Verical | Conv DC-DC 7.5V to 18V Step Down Single-Out 0.8V to 5.5V 6A 24-Pin VQFN-V EP T/R Min Qty: 42 Package Multiple: 1 Date Code: 2324 | Americas - 50 |
|
$1.1500 / $1.5700 | Buy Now |
|
|
Quest Components | 2000 |
|
$0.7905 / $2.1080 | Buy Now | |
|
|
Future Electronics | BD95861MUV Series 18 V 6A 1 ch Synchronous Buck DC/DC Converter - VQFN-24 Min Qty: 2500 Package Multiple: 2500 |
15000 null |
|
$0.7550 | Buy Now |
|
|
Velocity Electronics | Our Stock | 2500 |
|
RFQ | |
|
DISTI #
BD95861MUV-E2
|
Avnet Silica | Conv DCDC SingleOUT Step Down 75V to 18V 24Pin VQFN Embossed TR (Alt: BD95861MUV-E2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 19 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BD95861MUV-E2
BD95861MUV-E2 CAD Models
BD95861MUV-E2 Part Data Attributes
|
|
BD95861MUV-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD95861MUV-E2
ROHM Semiconductor
Switching Regulator, 800kHz Switching Freq-Max, VQFN-24
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | VQFN-24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | OUTPUT VOLTAGE RANGE FROM 0.8 V TO 5.5 V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 7.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-XQCC-N24 | |
| Length | 4 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Voltage-Nom | 3.3 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 800 kHz | |
| Temperature Grade | OTHER | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4 mm |
BD95861MUV-E2 Frequently Asked Questions (FAQ)
-
ROHM recommends a 2-layer or 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
-
To ensure stable operation with a high-ESR output capacitor, add a 10nF to 22nF ceramic capacitor in parallel with the output capacitor to reduce the overall ESR. Additionally, ensure the output capacitor is placed close to the IC to minimize parasitic inductance.
-
ROHM recommends a 10uF to 22uF X5R or X7R ceramic capacitor with a voltage rating of 10V or higher, placed as close to the VIN pin as possible, to reduce input voltage ripple and noise.
-
The output voltage can be adjusted by connecting a resistor divider network between the VOUT pin and the GND pin. The recommended resistor values can be calculated using the formula provided in the datasheet, or by using ROHM's online voltage adjustment calculator tool.
-
The BD95861MUV-E2 is rated for operation up to 105°C ambient temperature. However, to ensure reliable operation, ROHM recommends derating the output current and operating temperature to prevent overheating and reduce the risk of thermal shutdown.
