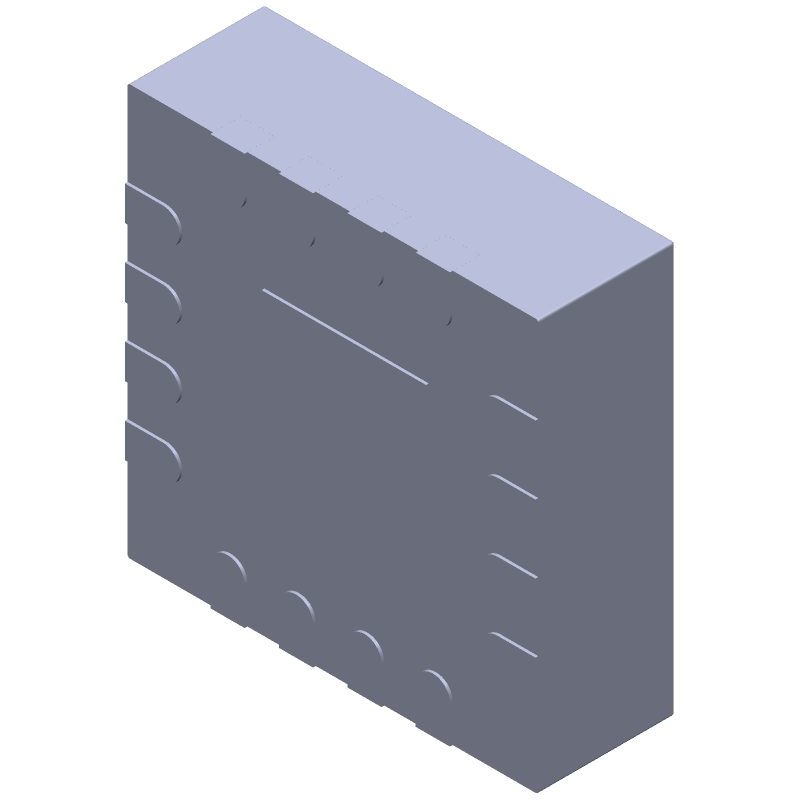

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD95821MUV-E2 by ROHM Semiconductor
Results Overview of BD95821MUV-E2 by ROHM Semiconductor
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BD95821MUV-E2 Information
BD95821MUV-E2 by ROHM Semiconductor is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BD95821MUV-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK6493
|
Newark | Dc/Dc Conv, Sync Buck, 800Khz, 100Deg C Rohs Compliant: Yes |Rohm BD95821MUV-E2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.6430 / $1.6000 | Buy Now |
|
DISTI #
BD95821MUV-E2CT-ND
|
DigiKey | IC REG BUCK ADJ 2A 16VQFN Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2080 In Stock |
|
$0.4277 / $0.9600 | Buy Now |
|
DISTI #
755-BD95821MUV-E2
|
Mouser Electronics | Switching Voltage Regulators IC Pwr Swtch Reg Integrated FET RoHS: Compliant | 5935 |
|
$0.4020 / $0.9600 | Buy Now |
|
DISTI #
86267964
|
Verical | Conv DC-DC 7.5V to 15V Synchronous Step Down Single-Out 0.8V to 5.5V 2A 16-Pin VQFN-V EP T/R RoHS: Compliant Min Qty: 122 Package Multiple: 1 Date Code: 2306 | Americas - 2975 |
|
$0.5240 / $0.9210 | Buy Now |
|
DISTI #
66376055
|
Verical | Conv DC-DC 7.5V to 15V Synchronous Step Down Single-Out 0.8V to 5.5V 2A 16-Pin VQFN-V EP T/R RoHS: Compliant Min Qty: 144 Package Multiple: 1 Date Code: 2201 | Americas - 2799 |
|
$0.7977 | Buy Now |
|
DISTI #
65086740
|
Verical | Conv DC-DC 7.5V to 15V Synchronous Step Down Single-Out 0.8V to 5.5V 2A 16-Pin VQFN-V EP T/R RoHS: Compliant Min Qty: 144 Package Multiple: 1 Date Code: 2201 | Americas - 2394 |
|
$0.4822 / $0.5370 | Buy Now |
|
|
Quest Components | 4154 |
|
$0.4515 / $1.5050 | Buy Now | |
|
DISTI #
BD95821MUV-E2
|
Avnet Silica | (Alt: BD95821MUV-E2) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 19 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BD95821MUV-E2
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2975 |
|
$0.3560 / $0.9210 | Buy Now |
|
|
LCSC | Step-down type Adjustable 2A 800mV5.5V 7.5V15V VQFN-16-EP(3x3) DC-DC Converters ROHS | 2 |
|
$1.4952 / $1.5857 | Buy Now |
Part Details for BD95821MUV-E2
BD95821MUV-E2 CAD Models
BD95821MUV-E2 Part Data Attributes
|
|
BD95821MUV-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD95821MUV-E2
ROHM Semiconductor
Switching Regulator, 800kHz Switching Freq-Max, VQFN-16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | ADJUSTABLE OUTPUT MODE FROM 0.8 TO 5.5V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Input Voltage-Max | 15 V | |
| Input Voltage-Min | 7.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-XQCC-N16 | |
| Length | 3 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 800 kHz | |
| Temperature Grade | OTHER | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3 mm |
BD95821MUV-E2 Frequently Asked Questions (FAQ)
-
ROHM recommends a 2-layer or 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
-
To ensure stable output voltage regulation, it's essential to decouple the input voltage with a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel. Additionally, a 1uF ceramic capacitor should be placed close to the output pin to filter out high-frequency noise.
-
The maximum allowable ripple voltage on the input pin is 1Vp-p. Exceeding this value may affect the regulator's stability and output voltage accuracy.
-
While the BD95821MUV-E2 is rated for operation up to 125°C, it's essential to consider the derating curve for output current and input voltage to ensure reliable operation in high-temperature environments.
-
To protect the device from overcurrent and short-circuit conditions, it's recommended to add an external current limiting resistor or a fuse in series with the input pin. Additionally, a TVS diode can be used to protect against voltage surges and spikes.
