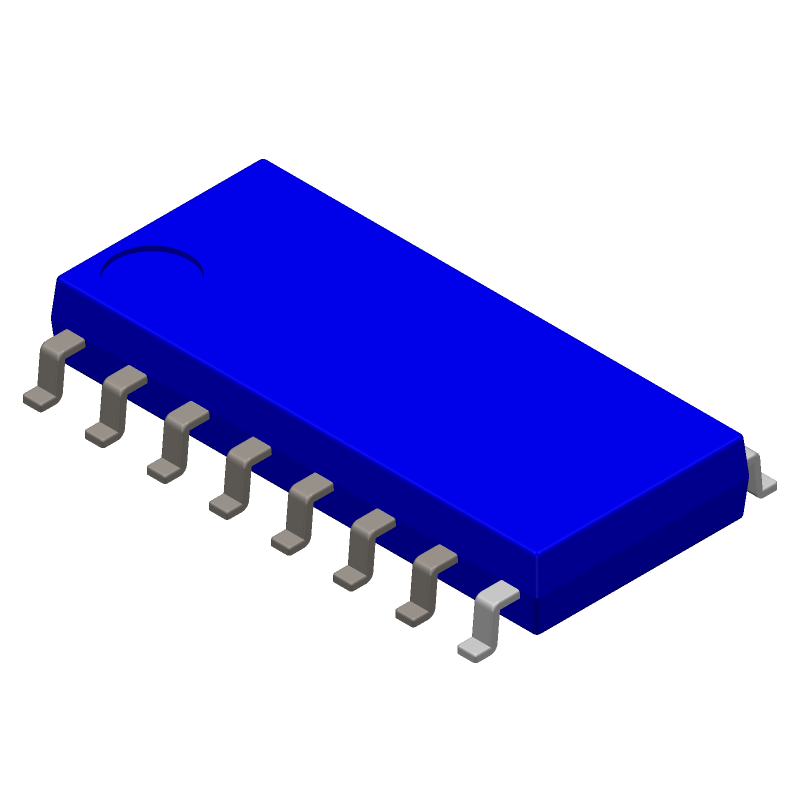

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD9409F-E2 by ROHM Semiconductor
Results Overview of BD9409F-E2 by ROHM Semiconductor
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
Electronic Manufacturing
BD9409F-E2 Information
BD9409F-E2 by ROHM Semiconductor is a Display Driver.
Display Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for BD9409F-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BD9409F-E2CT-ND
|
DigiKey | IC LED DRIVER CTRLR PWM 16SOP Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
192 In Stock |
|
$0.6949 / $1.4700 | Buy Now |
|
DISTI #
755-BD9409F-E2
|
Mouser Electronics | LED Lighting Driver ICs Std Boost 1Ch 11.5-35V SOP16 RoHS: Compliant | 358 |
|
$0.6760 / $1.4700 | Buy Now |
|
DISTI #
87729596
|
Verical | LED Driver 12V/15V/18V/24V 16-Pin SOP T/R RoHS: Compliant Min Qty: 67 Package Multiple: 1 Date Code: 2036 | Americas - 498 |
|
$0.9360 / $1.4100 | Buy Now |
|
DISTI #
52969373
|
Verical | LED Driver 12V/15V/18V/24V 16-Pin SOP T/R RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 1701 | Americas - 50 |
|
$1.5043 | Buy Now |
|
DISTI #
BD9409F-E2
|
TTI | LED Lighting Driver ICs Std Boost 1Ch 11.5-35V SOP16 RoHS: Compliant pbFree: Pb-Free Min Qty: 2500 Package Multiple: 2500 Container: Reel | Americas - 0 |
|
$0.6510 / $0.6780 | Buy Now |
|
DISTI #
BD9409F-E2
|
Chip One Stop | Opto-electronics RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 498 |
|
$0.5350 / $1.4100 | Buy Now |
|
|
LCSC | 50kHz1000kHz PWM 1 boost converter SOP-16-4.4mm LED Drivers ROHS | 2 |
|
$2.1650 / $2.2963 | Buy Now |
Part Details for BD9409F-E2
BD9409F-E2 CAD Models
BD9409F-E2 Part Data Attributes
|
|
BD9409F-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD9409F-E2
ROHM Semiconductor
LED Driver,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | SOP-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LED DISPLAY DRIVER | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 10 mm | |
| Multiplexed Display Capability | NO | |
| Number of Functions | 1 | |
| Number of Segments | 4 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1.71 mm | |
| Supply Current-Max | 5.6 mA | |
| Supply Voltage-Max | 35 V | |
| Supply Voltage-Min | 11.5 V | |
| Supply Voltage-Nom | 24 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4.4 mm | |
| fmax-Min | 0.002 MHz |
BD9409F-E2 Frequently Asked Questions (FAQ)
-
ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
-
To ensure output voltage stability, it's essential to use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a sufficient capacitance value. ROHM recommends a 10uF or larger ceramic capacitor with an ESR of 10mΩ or less.
-
Although the datasheet specifies a maximum input voltage of 18V, ROHM recommends limiting the input voltage to 15V or less to ensure reliable operation and prevent damage to the internal components.
-
The BD9409F-E2 is rated for operation up to 105°C, but ROHM recommends derating the output current and input voltage to ensure reliable operation at high temperatures. Consult the datasheet and ROHM's application notes for specific guidelines.
-
ROHM recommends using a scope to monitor the input and output voltages, as well as the current consumption. Check for proper PCB layout, component selection, and thermal design. Consult ROHM's application notes and technical support resources for further guidance.
