BD7542SF-E2 Information
BD7542SF-E2 by ROHM Semiconductor is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for BD7542SF-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
846-BD7542SF-E2TR-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8SOP Min Qty: 2500 Lead time: 14 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.8218 / $0.8499 | Buy Now |
|
DISTI #
755-BD7542SF-E2
|
Mouser Electronics | Operational Amplifiers - Op Amps High Voltage 5-14.5V 4mA, 0.3 slew rate RoHS: Compliant | 0 |
|
$0.7920 | Order Now |
|
DISTI #
87730302
|
Verical | Op Amp Dual Low Power Amplifier R-R I/O ±7.25V/14.5V 8-Pin SOP T/R RoHS: Compliant Min Qty: 82 Package Multiple: 1 Date Code: 1939 | Americas - 100 |
|
$0.6310 / $0.7840 | Buy Now |
|
DISTI #
86988600
|
Verical | Op Amp Dual Low Power Amplifier R-R I/O ±7.25V/14.5V 8-Pin SOP T/R RoHS: Compliant Min Qty: 50 Package Multiple: 1 | Americas - 50 |
|
$1.4497 | Buy Now |
|
DISTI #
BD7542SF-E2
|
TME | IC: operational amplifier Min Qty: 1 | 0 |
|
$0.2420 / $0.5710 | RFQ |
|
|
Ameya Holding Limited | IC OPAMP GP 600KHZ RRO 8SOP Min Qty: 1 | 2500-Authorized Distributor |
|
$0.6860 / $1.5000 | Buy Now RFQ |
|
DISTI #
BD7542SF-E2
|
Avnet Silica | OP Amp Dual GP 725V145V 8Pin SOP TR (Alt: BD7542SF-E2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BD7542SF-E2

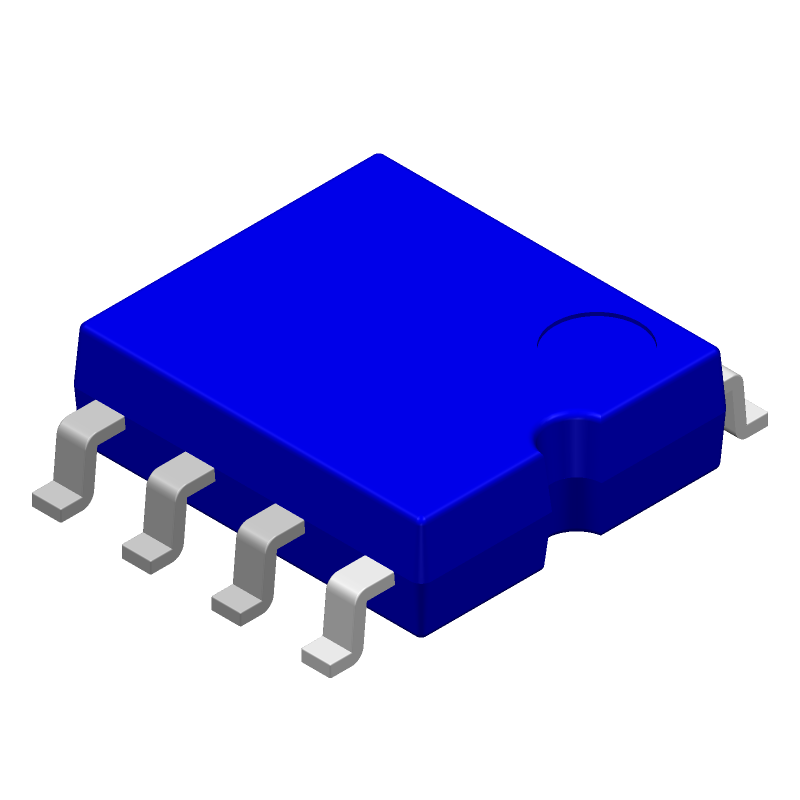

BD7542SF-E2 CAD Models
BD7542SF-E2 Part Data Attributes
|
|
BD7542SF-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD7542SF-E2
ROHM Semiconductor
Operational Amplifier, 2 Func, 10000uV Offset-Max, CMOS, PDSO8, SOP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Common-mode Reject Ratio-Nom | 60 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 10000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 5 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Slew Rate-Nom | 0.3 V/us | |
| Supply Current-Max | 0.9 mA | |
| Supply Voltage Limit-Max | 15.5 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 600 | |
| Voltage Gain-Min | 3160 | |
| Width | 4.4 mm |
