BD69730FV-GE2 Information
BD69730FV-GE2 by ROHM Semiconductor is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for BD69730FV-GE2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AH6680
|
Newark | Motor Driver, -40 To 105Deg C, Motor Type:Dc Brushless, No. Of Outputs:1Outputs, Output Current:12Ma, Output Voltage:9.5V, Driver Case Style:Ssop-B, No. Of Pins:16Pins, Supply Voltage Min:4.3V, Supply Voltage Max:17V, Operating Rohs Compliant: Yes |Rohm BD69730FV-GE2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.6250 / $1.3700 | Buy Now |
|
DISTI #
BD69730FV-GE2CT-ND
|
DigiKey | IC MOTOR DRIVER 4.3V-17V 16SSOPB Min Qty: 1 Lead time: 11 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2500 In Stock |
|
$0.5150 / $1.2000 | Buy Now |
|
DISTI #
755-BD69730FV-GE2
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers DC Brshlss Full-Wave Fan Mtr Drv w/PWM RoHS: Compliant | 1145 |
|
$0.5150 / $1.2000 | Buy Now |
|
DISTI #
88800752
|
Verical | Dual Half Bridge Motor Driver 12V 16-Pin SSOP-B T/R RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 2401 | Americas - 2500 |
|
$0.7149 / $0.8230 | Buy Now |
|
|
Quest Components | 2000 |
|
$0.6855 / $2.2850 | Buy Now | |
|
DISTI #
BD69730FV-GE2
|
Avnet Asia | Brushless DC Motor Driver 4.3 to 17V 16-Pin SSOP-B Emboss T/R (Alt: BD69730FV-GE2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ |
Part Details for BD69730FV-GE2

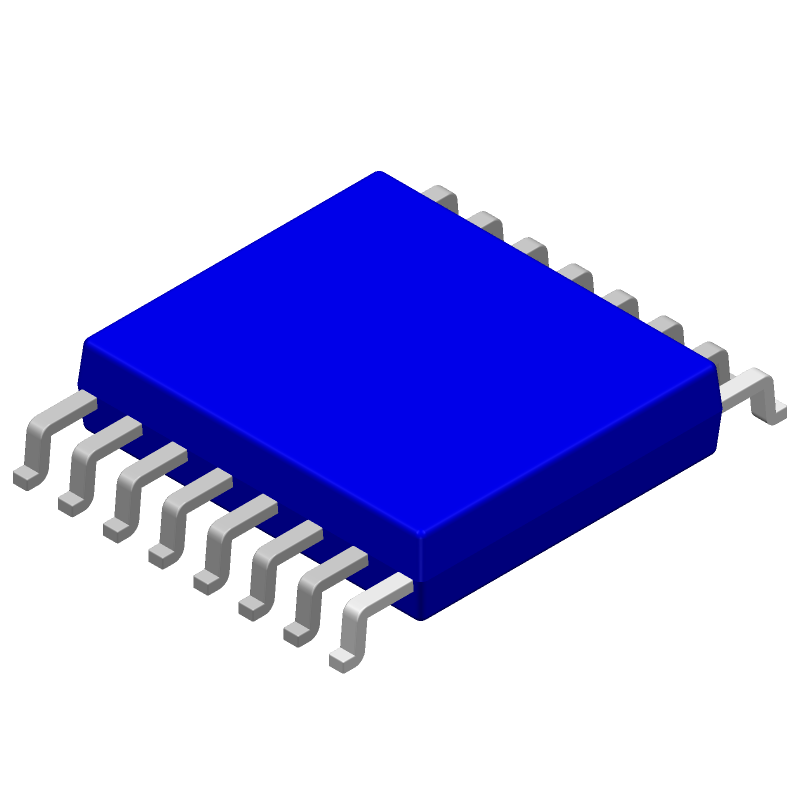

BD69730FV-GE2 CAD Models
BD69730FV-GE2 Part Data Attributes
|
|
BD69730FV-GE2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD69730FV-GE2
ROHM Semiconductor
Brushless DC Motor Controller, PDSO16, 5 X 6.40 MM, 1.35 MM HEIGHT, HALOGEN FREE, SSOP-16
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Analog IC - Other Type | BRUSHLESS DC MOTOR CONTROLLER | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 5 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1.35 mm | |
| Supply Voltage-Max (Vsup) | 17 V | |
| Supply Voltage-Min (Vsup) | 4.3 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4.4 mm |
BD69730FV-GE2 Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
-
Use a capacitor with an ESR of 10 ohms or less, and ensure that the capacitor is placed close to the IC. Additionally, add a 1-10nF ceramic capacitor in parallel to the output capacitor to filter high-frequency noise.
-
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the IC.
-
The BD69730FV-GE2 is rated for operation up to 105°C. However, the IC's performance and reliability may degrade at high temperatures. Ensure that the IC is properly heat-sinked and that the operating temperature is within the specified range.
-
Check the PCB layout for noise coupling, ensure that the input and output capacitors are properly decoupled, and verify that the feedback network is properly connected. Also, check for any signs of overheating or excessive current draw.
