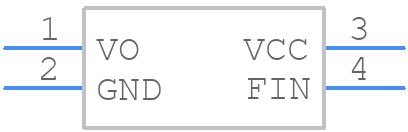

Part Symbol
-
Footprint
-

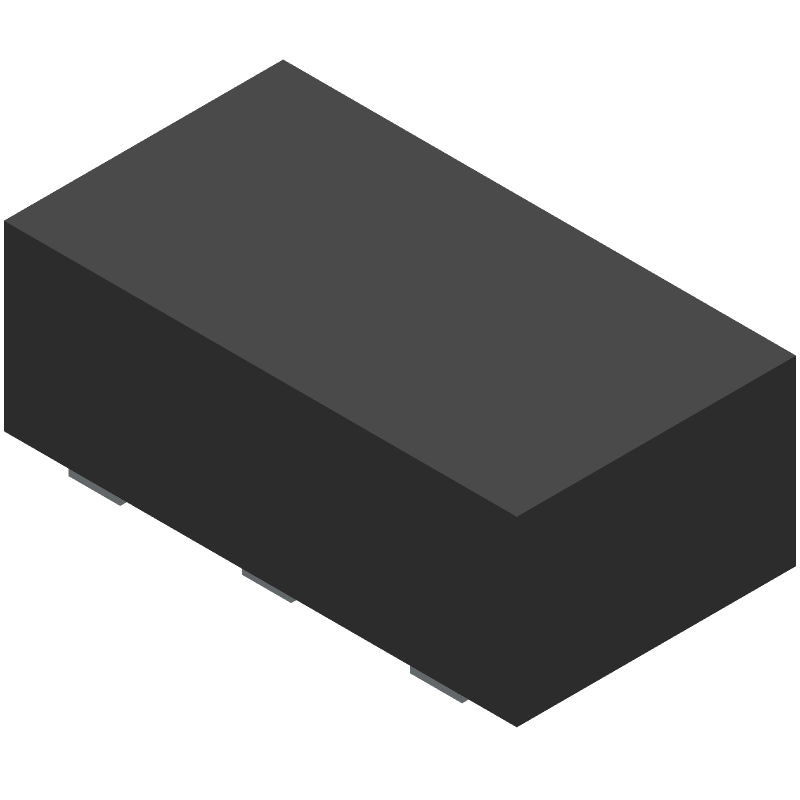

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD54FA1FP3-ZTL by ROHM Semiconductor
Results Overview of BD54FA1FP3-ZTL by ROHM Semiconductor
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BD54FA1FP3-ZTL Information
BD54FA1FP3-ZTL by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BD54FA1FP3-ZTL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
01AH6615
|
Newark | Ldo, Fixed, 5.4V, 0.1A, -25 To 85Deg C, Output Type:Fixed, Input Voltage Min:8.4V, Input Voltage Max:25V, Fixed Output Voltage Nom.:5.4V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:100Ma, Dropoutrohs Compliant: Yes |Rohm BD54FA1FP3-ZTL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 724 |
|
$0.2120 / $0.7500 | Buy Now |
|
DISTI #
BD54FA1FP3-ZTLCT-ND
|
DigiKey | IC REG LINEAR 5.4V 100MA SOT89-3 Min Qty: 1 Lead time: 24 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2364 In Stock |
|
$0.1262 / $0.3300 | Buy Now |
|
DISTI #
755-BD54FA1FP3-ZTL
|
Mouser Electronics | LDO Voltage Regulators 100mA 25-6 LDO 5.4V Std SOT89-3K RoHS: Compliant | 1342 |
|
$0.1280 / $0.3300 | Buy Now |
|
DISTI #
65656350
|
Verical | LDO Regulator Pos 5.4V 0.1A 4-Pin(3+Tab) SOT89-K T/R RoHS: Compliant Min Qty: 265 Package Multiple: 1 Date Code: 2201 | Americas - 1000 |
|
$0.2762 / $0.2963 | Buy Now |
|
DISTI #
76828237
|
Verical | LDO Regulator Pos 5.4V 0.1A 4-Pin(3+Tab) SOT89-K T/R RoHS: Compliant Min Qty: 189 Package Multiple: 1 | Americas - 980 |
|
$0.2770 | Buy Now |
|
DISTI #
65057930
|
Verical | LDO Regulator Pos 5.4V 0.1A 4-Pin(3+Tab) SOT89-K T/R RoHS: Compliant Min Qty: 265 Package Multiple: 1 Date Code: 2201 | Americas - 750 |
|
$0.2856 / $0.2963 | Buy Now |
|
|
Quest Components | 1400 |
|
$0.3520 / $0.8800 | Buy Now | |
|
DISTI #
BD54FA1FP3-ZTL
|
Avnet Silica | LDO Regulator Pos 54V 100mA 3Pin SOT89 Emboss TR (Alt: BD54FA1FP3-ZTL) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BD54FA1FP3-ZTL
BD54FA1FP3-ZTL CAD Models
BD54FA1FP3-ZTL Part Data Attributes
|
|
BD54FA1FP3-ZTL
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD54FA1FP3-ZTL
ROHM Semiconductor
Fixed Positive LDO Regulator, 5.4V, PSSO3, 4.50 X 4.095 MM, 1.60 MM HEIGHT, SOT-89, 3 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Dropout Voltage1-Max | 3 V | |
| Dropout Voltage1-Nom | 1 V | |
| Input Voltage-Max | 25 V | |
| Input Voltage-Min | 8.4 V | |
| JESD-30 Code | R-PSSO-F3 | |
| Length | 4.5 mm | |
| Load Regulation-Max | 0.081% | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 150 °C | |
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.454 V | |
| Output Voltage1-Min | 5.346 V | |
| Output Voltage1-Nom | 5.4 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOF | |
| Package Equivalence Code | TO-243 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.6 mm | |
| Surface Mount | YES | |
| Terminal Form | FLAT | |
| Terminal Pitch | 1.5 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 1% | |
| Width | 2.45 mm |
BD54FA1FP3-ZTL Frequently Asked Questions (FAQ)
-
ROHM recommends a thermal pad size of at least 2.5mm x 2.5mm, with multiple vias to the ground plane to ensure efficient heat dissipation. A minimum of 3mm clearance around the device is also recommended to prevent thermal coupling with adjacent components.
-
To ensure stable operation with a high-ESR output capacitor, ROHM recommends using a capacitor with an ESR of less than 100mΩ. Additionally, a 1μF ceramic capacitor in parallel with the output capacitor can help to improve stability.
-
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may cause damage to the device. It's recommended to use a voltage limiter or a resistor divider network to ensure the EN pin voltage remains within the specified range.
-
While the BD54FA1FP3-ZTL is rated for operation up to 125°C, ROHM recommends derating the output current and voltage to ensure reliable operation in high-temperature environments. Consult the datasheet and ROHM's application notes for specific guidance.
-
To troubleshoot oscillation or instability issues, check the PCB layout for proper thermal design, ensure the output capacitor is properly selected and placed, and verify that the input voltage is within the specified range. Also, check for any noise or ripple on the input voltage and ensure that the device is not overheating.
