BD3541NUV-E2 Information
BD3541NUV-E2 by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BD3541NUV-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK6476
|
Newark | Ldo, Adj, 0.65-2.7V, 1A, -10 To 85Deg C Rohs Compliant: Yes |Rohm BD3541NUV-E2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.6730 / $1.4800 | Buy Now |
|
DISTI #
755-BD3541NUV-E2
|
Mouser Electronics | LDO Voltage Regulators 1.0A 5V Nch FET Ultra LDO RoHS: Compliant | 475 |
|
$0.5760 / $1.2800 | Buy Now |
|
DISTI #
36542546
|
Verical | LDO Regulator Pos 0.643V to 2.7V 1A 10-Pin VSON-V EP T/R RoHS: Compliant Min Qty: 126 Package Multiple: 1 Date Code: 1601 | Americas - 2386 |
|
$0.5817 / $0.6499 | Buy Now |
|
DISTI #
69268226
|
Verical | LDO Regulator Pos 0.643V to 2.7V 1A 10-Pin VSON-V EP T/R RoHS: Compliant Min Qty: 56 Package Multiple: 1 Date Code: 2244 | Americas - 100 |
|
$0.7140 / $0.8070 | Buy Now |
|
|
Quest Components | 1908 |
|
$0.6913 / $1.9750 | Buy Now |
Part Details for BD3541NUV-E2

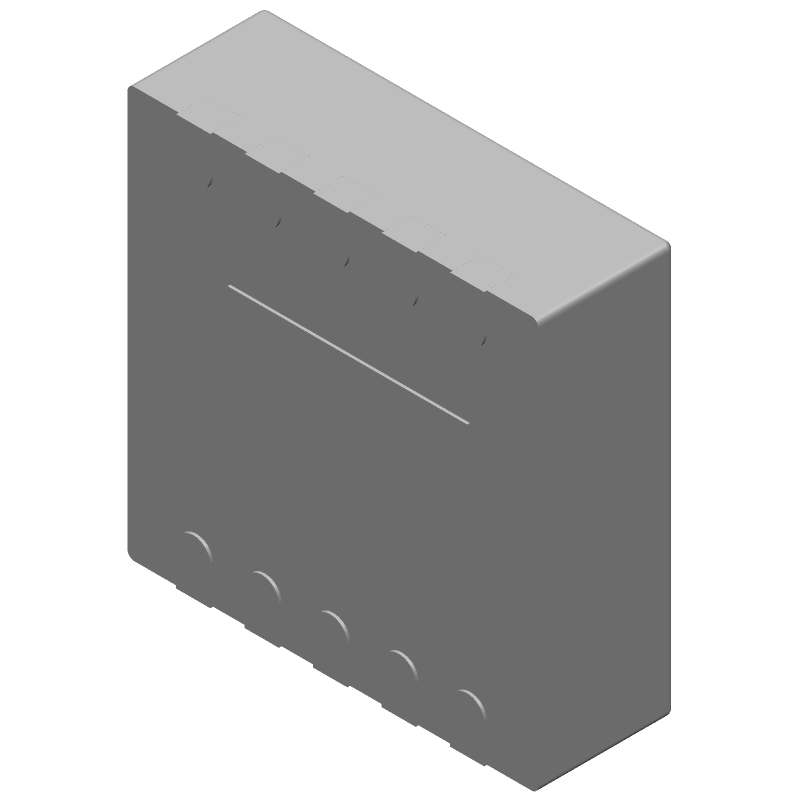

BD3541NUV-E2 CAD Models
