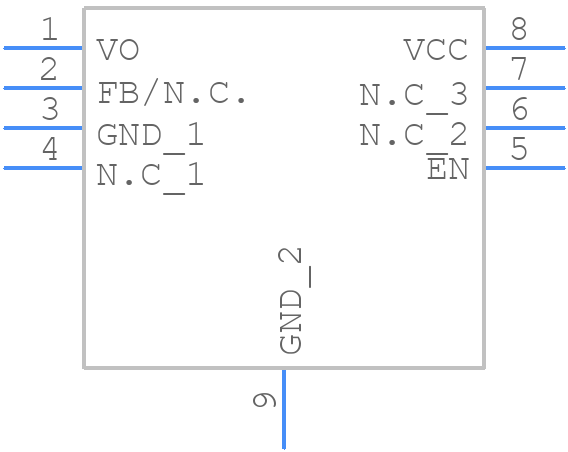

Part Symbol
-

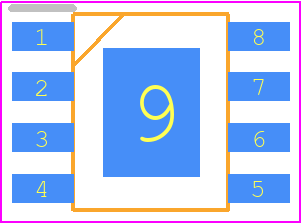

Footprint
-

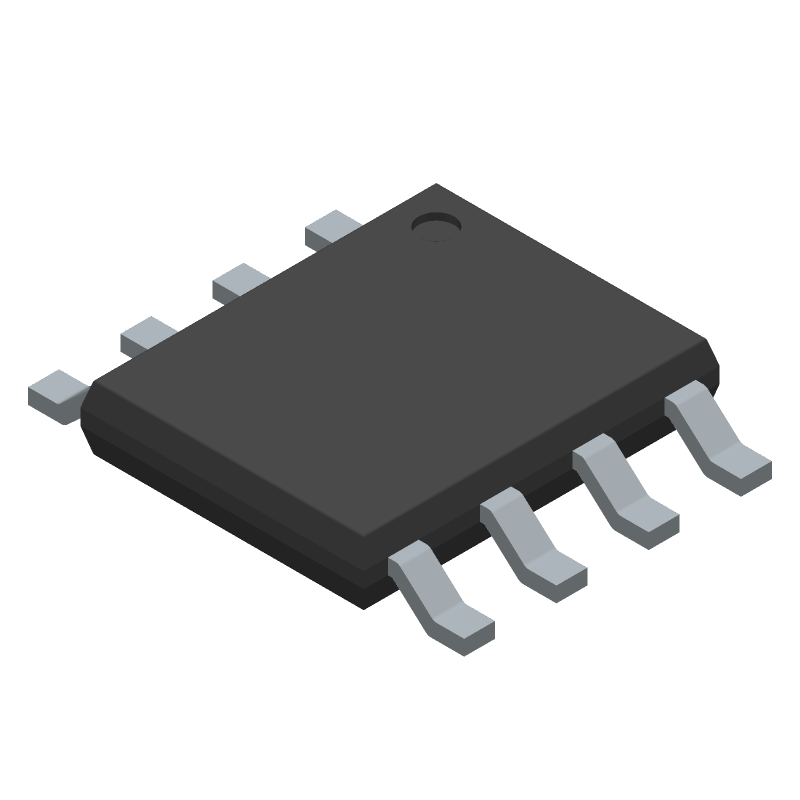

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD30FC0WEFJ-E2 by ROHM Semiconductor
Results Overview of BD30FC0WEFJ-E2 by ROHM Semiconductor
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BD30FC0WEFJ-E2 Information
BD30FC0WEFJ-E2 by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BD30FC0WEFJ-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BD30FC0WEFJ-E2CT-ND
|
DigiKey | IC REG LINEAR 3V 1A 8-HTSOP-J Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.5317 / $1.1700 | Buy Now |
|
DISTI #
755-BD30FC0WEFJ-E2
|
Mouser Electronics | LDO Voltage Regulators 35V Voltage 1A LDO Reg RoHS: Compliant | 3156 |
|
$0.5000 / $1.1900 | Buy Now |
|
DISTI #
87727817
|
Verical | LDO Regulator Pos 3V 1A 8-Pin HTSOP-J EP T/R RoHS: Compliant Min Qty: 70 Package Multiple: 1 Date Code: 2020 | Americas - 500 |
|
$0.6140 / $0.8800 | Buy Now |
|
DISTI #
86987238
|
Verical | LDO Regulator Pos 3V 1A 8-Pin HTSOP-J EP T/R RoHS: Compliant Min Qty: 30 Package Multiple: 1 | Americas - 30 |
|
$2.5124 | Buy Now |
|
DISTI #
BD30FC0WEFJ-E2
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 500 |
|
$0.3990 / $1.3500 | Buy Now |
Part Details for BD30FC0WEFJ-E2
BD30FC0WEFJ-E2 CAD Models
BD30FC0WEFJ-E2 Part Data Attributes
|
|
BD30FC0WEFJ-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD30FC0WEFJ-E2
ROHM Semiconductor
Fixed Positive LDO Regulator, 3V, PDSO8, HTSOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | HTSOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Dropout Voltage1-Nom | 1 V | |
| Input Voltage-Max | 26.5 V | |
| Input Voltage-Min | 4 V | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.9 mm | |
| Load Regulation-Max | 0.06% | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 150 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 3.03 V | |
| Output Voltage1-Min | 2.97 V | |
| Output Voltage1-Nom | 3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 1% | |
| Width | 3.9 mm |
