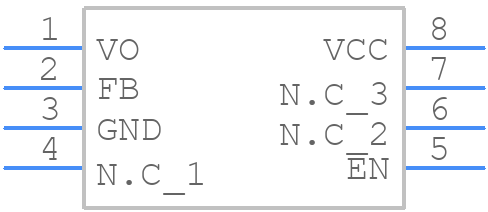

Part Symbol
-
Footprint
-

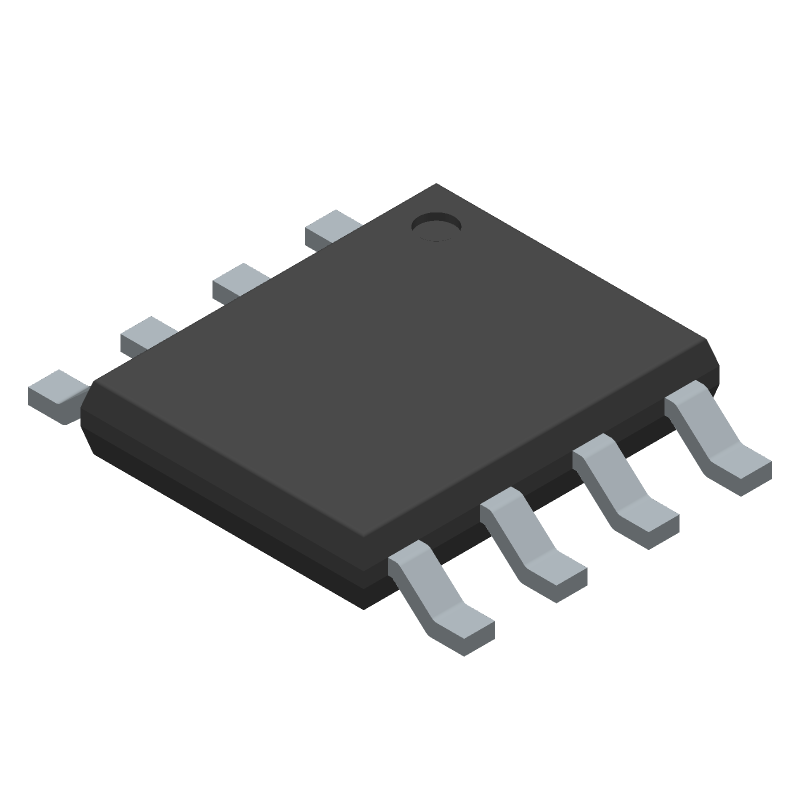

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD18IC0WEFJ-E2 by ROHM Semiconductor
Results Overview of BD18IC0WEFJ-E2 by ROHM Semiconductor
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BD18IC0WEFJ-E2 Information
BD18IC0WEFJ-E2 by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BD18IC0WEFJ-E2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08X1267
|
Newark | Fixed Ldo Voltage Regulator, 2.4V To 5.5V, 400Mv Dropout, 1.8Vout, 1Aout, Htsop-8 Rohs Compliant: Yes |Rohm BD18IC0WEFJ-E2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.3300 / $0.9800 | Buy Now |
|
DISTI #
BD18IC0WEFJ-E2CT-ND
|
DigiKey | IC REG LINEAR 1.8V 1A 8-HTSOP-J Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2146 In Stock |
|
$0.3400 / $0.7900 | Buy Now |
|
DISTI #
755-BD18IC0WEFJ-E2
|
Mouser Electronics | LDO Voltage Controllers LDO Reg Pos 1.8V 1A RoHS: Compliant | 19 |
|
$0.3330 / $0.7900 | Buy Now |
|
DISTI #
72487433
|
Verical | LDO Regulator Pos 1.8V 1A 8-Pin HTSOP-J EP T/R RoHS: Compliant Min Qty: 189 Package Multiple: 1 Date Code: 2329 | Americas - 3145 |
|
$0.4230 / $0.7580 | Buy Now |
|
DISTI #
63340870
|
Verical | LDO Regulator Pos 1.8V 1A 8-Pin HTSOP-J EP T/R RoHS: Compliant Min Qty: 265 Package Multiple: 1 Date Code: 2201 | Americas - 1500 |
|
$0.4341 | Buy Now |
|
DISTI #
61211991
|
Verical | LDO Regulator Pos 1.8V 1A 8-Pin HTSOP-J EP T/R RoHS: Compliant Min Qty: 265 Package Multiple: 1 Date Code: 2201 | Americas - 516 |
|
$0.4341 | Buy Now |
|
|
Quest Components | FIXED POSITIVE LDO REGULATOR, 1.8V, CMOS, PDSO8 | 1612 |
|
$0.3520 / $0.8800 | Buy Now |
|
DISTI #
BD18IC0WEFJ-E2
|
IBS Electronics | LDO REGULATOR POS 1.8V 1A 8-PIN HTSOP-J EMBOSSED T/R Min Qty: 2500 Package Multiple: 1 | 0 |
|
$0.2535 / $0.2665 | Buy Now |
|
DISTI #
BD18IC0WEFJ-E2
|
Avnet Silica | LDO Regulator Pos 18V 1A 8Pin HTSOPJ Embossed TR (Alt: BD18IC0WEFJ-E2) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BD18IC0WEFJ-E2
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 3145 |
|
$0.3040 / $0.7580 | Buy Now |
Part Details for BD18IC0WEFJ-E2
BD18IC0WEFJ-E2 CAD Models
BD18IC0WEFJ-E2 Part Data Attributes
|
|
BD18IC0WEFJ-E2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD18IC0WEFJ-E2
ROHM Semiconductor
Fixed Positive LDO Regulator, 1.8V, CMOS, PDSO8, 4.9 X 6 MM, 1 MM HEIGHT, ROHS COMPLIANT, HTSOP-8
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.6 V | |
| Dropout Voltage1-Nom | 0.4 V | |
| Input Voltage Absolute-Max | 7 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2.4 V | |
| JESD-30 Code | R-PDSO-G8 | |
| Length | 4.9 mm | |
| Line Regulation-Max | 0.018% | |
| Load Regulation-Max | 0.027% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 150 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 1.818 V | |
| Output Voltage1-Min | 1.782 V | |
| Output Voltage1-Nom | 1.8 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSOP | |
| Package Equivalence Code | TSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 1% | |
| Width | 3.9 mm |
