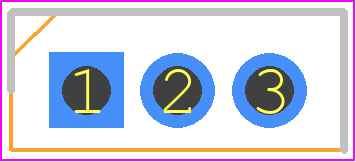

Footprint
-

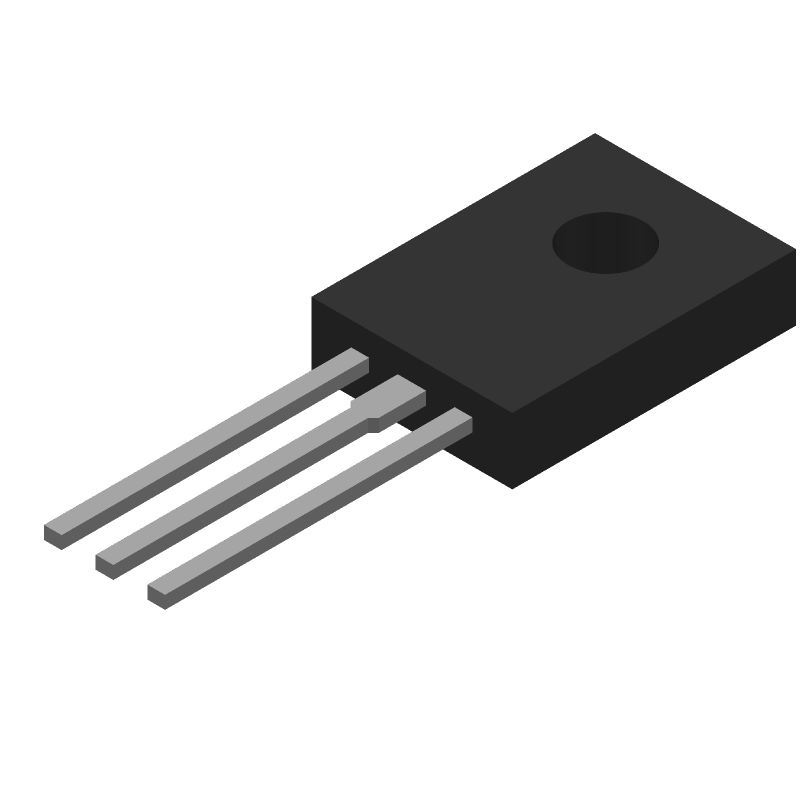

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BD13510STU by onsemi
Results Overview of BD13510STU by onsemi
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BD13510STU Information
BD13510STU by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BD13510STU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AH8477
|
Newark | Trans, Npn, 45V, 1.5A, 150Deg C, 12.5W Rohs Compliant: Yes |Onsemi BD13510STU RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1808 |
|
$0.4550 / $0.6740 | Buy Now |
|
DISTI #
BD13510STU-ND
|
DigiKey | TRANS NPN 45V 1.5A TO-126-3 Min Qty: 1 Lead time: 10 Weeks Container: Tube |
1442 In Stock |
|
$0.3380 / $1.1700 | Buy Now |
|
DISTI #
BD13510STU
|
Avnet Americas | Trans GP BJT NPN 45V 1.5A 3-Pin(3+Tab) TO-126 Rail - Rail/Tube (Alt: BD13510STU) RoHS: Compliant Min Qty: 3840 Package Multiple: 1920 Lead time: 111 Weeks, 0 Days Container: Tube | 0 |
|
RFQ | |
|
DISTI #
512-BD13510STU
|
Mouser Electronics | Bipolar Transistors - BJT NPN Si Transistor Epitaxial RoHS: Compliant | 1808 |
|
$0.3200 / $0.5300 | Buy Now |
|
|
Onlinecomponents.com | 1.5 A, 45V NPN Power Bipolar Junction Transistor |
1920 Partner Stock |
|
$0.2398 / $0.2979 | Buy Now |
|
DISTI #
85964122
|
Verical | Trans GP BJT NPN 45V 1.5A 1250mW 3-Pin TO-126 Tube RoHS: Compliant Min Qty: 986 Package Multiple: 1 Date Code: 2201 | Americas - 13364 |
|
$0.2620 / $0.3804 | Buy Now |
|
|
Rochester Electronics | Power Bipolar Transistor, 1.5A, 45V, NPN, TO-126, Plastic/Epoxy, 3 Pin RoHS: Compliant Status: Active Min Qty: 1 | 13982 |
|
$0.2096 / $0.3381 | Buy Now |
|
DISTI #
BD13510STU
|
TME | Transistor: NPN, bipolar, 45V, 1.5A, 12.5W, TO126ISO Min Qty: 1 | 1636 |
|
$0.3270 / $0.5360 | Buy Now |
|
DISTI #
BD13510STU
|
IBS Electronics | BIPOLAR TRANSISTORS - BJT NPN SI TRANSISTOR EPITAXIAL Min Qty: 750 Package Multiple: 1 | 1920 |
|
$0.1700 | Buy Now |
|
DISTI #
BD13510STU
|
Avnet Silica | Trans GP BJT NPN 45V 15A 3Pin3Tab TO126 Rail (Alt: BD13510STU) RoHS: Compliant Min Qty: 3840 Package Multiple: 1920 Lead time: 11 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BD13510STU
BD13510STU CAD Models
BD13510STU Part Data Attributes
|
|
BD13510STU
onsemi
Buy Now
Datasheet
|
Compare Parts:
BD13510STU
onsemi
1.5 A, 45V NPN Power Bipolar Junction Transistor, TO-126-3, 1920-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-126-3 | |
| Manufacturer Package Code | 340AS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 1.5 A | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 63 | |
| JEDEC-95 Code | TO-126 | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 13 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 50 MHz |
BD13510STU Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern around the device.
-
Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
-
Use low-ESR capacitors (e.g., X5R or X7R dielectrics) with a minimum capacitance of 10 μF for the input and 22 μF for the output. Ensure the capacitors are placed close to the device and connected with short, low-inductance traces.
-
Use a shielded enclosure, keep the device and associated components away from the PCB edge, and use a common-mode choke or ferrite bead on the input lines. Ensure proper grounding and decoupling of the device.
-
Apply the input voltage (VIN) first, followed by the enable signal (EN). Ensure the input voltage is stable before applying the enable signal.
