BD00C0AWFP-CE2 Information
BD00C0AWFP-CE2 by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for BD00C0AWFP-CE2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84Y9616
|
Newark | Ldo, Adj, Aec-Q100, 1A, 3V-15V, To-252-5, Output Type:Adjustable, Input Voltage Min:4V, Input Voltage Max:26.5V, Fixed Output Voltage Nom.:-, Adjustable Output Voltage Min:1V, Adjustable Output Voltage Max:15V, Output Current:1A, Rohs Compliant: Yes |Rohm BD00C0AWFP-CE2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 198 |
|
$0.8320 / $1.6200 | Buy Now |
|
DISTI #
BD00C0AWFP-CE2CT-ND
|
DigiKey | IC REG LINEAR POS ADJ 1A TO252-5 Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
940 In Stock |
|
$0.6460 / $1.3800 | Buy Now |
|
DISTI #
755-BD00C0AWFP-CE2
|
Mouser Electronics | LDO Voltage Regulators 4-26.5V TO252-5 15A LDO Regulator RoHS: Compliant | 74 |
|
$0.6060 / $1.3800 | Buy Now |
|
DISTI #
62842189
|
Verical | LDO Regulator Pos 1V to 15V 1A Automotive 5-Pin(4+Tab) TO-252 T/R Min Qty: 65 Package Multiple: 1 Date Code: 2201 | Americas - 1330 |
|
$1.2042 | Buy Now |
|
DISTI #
61184563
|
Verical | LDO Regulator Pos 1V to 15V 1A Automotive 5-Pin(4+Tab) TO-252 T/R Min Qty: 65 Package Multiple: 1 Date Code: 2101 | Americas - 900 |
|
$1.1634 / $1.3162 | Buy Now |
|
DISTI #
36527675
|
Verical | LDO Regulator Pos 1V to 15V 1A Automotive 5-Pin(4+Tab) TO-252 T/R Min Qty: 65 Package Multiple: 1 Date Code: 1701 | Americas - 120 |
|
$1.2574 / $1.3162 | Buy Now |
|
|
Quest Components | 1880 |
|
$1.0845 / $2.8920 | Buy Now | |
|
DISTI #
BD00C0AWFP-CE2
|
IBS Electronics | LDO REGULATOR POS 1V TO 15V 1A AUTOMOTIVE AEC-Q100 5-PIN(4+, TAB) TO-252 T/R Min Qty: 2000 Package Multiple: 1 | 0 |
|
$0.7345 / $0.7670 | Buy Now |
|
DISTI #
BD00C0AWFP-CE2
|
Avnet Asia | LDO Regulator Pos 1 to 15V 1A 5-Pin TO-252 Emboss T/R (Alt: BD00C0AWFP-CE2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 24 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
BD00C0AWFP-CE2
|
Avnet Silica | LDO Regulator Pos 1 to 15V 1A 5Pin TO252 Emboss TR (Alt: BD00C0AWFP-CE2) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 17 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BD00C0AWFP-CE2

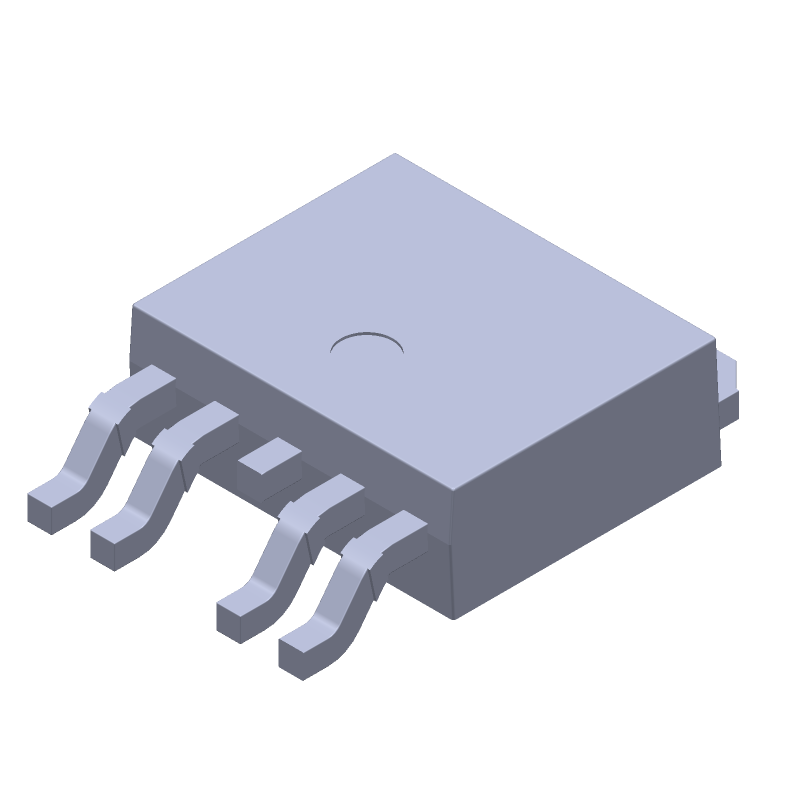

BD00C0AWFP-CE2 CAD Models
BD00C0AWFP-CE2 Part Data Attributes
|
|
BD00C0AWFP-CE2
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BD00C0AWFP-CE2
ROHM Semiconductor
Fixed Positive LDO Regulator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | TO-252, 5/4 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Adjustability | ADJUSTABLE | |
| Dropout Voltage1-Max | 0.5 V | |
| Dropout Voltage1-Nom | 0.3 V | |
| JESD-30 Code | R-PSSO-G4 | |
| Length | 6.5 mm | |
| Load Regulation-Max(%) | 0.02% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 15 V | |
| Output Voltage1-Min | 1 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-252 | |
| Package Equivalence Code | SMSIP5H,.37,50TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 2.5 mm | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 5.5 mm |
