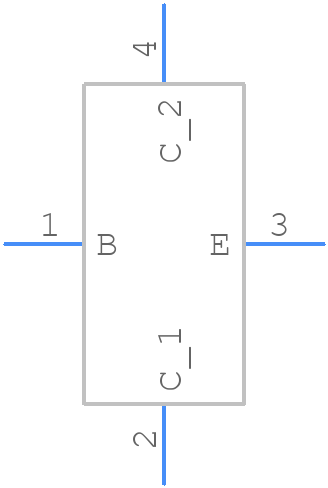

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BCX5616TA by Diodes Incorporated
Results Overview of BCX5616TA by Diodes Incorporated
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BCX5616TA Information
BCX5616TA by Diodes Incorporated is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BCX5616TA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
61M4996
|
Newark | Transistor, Npn, 80V, 1A, 1W, Sot-89, Transistor Polarity:Npn, Collector Emitter Voltage Max:80V, Continuous Collector Current:1A, Power Dissipation:1W, Transistor Mounting:Surface Mount, No. Of Pins:4Pins, Product Range:- Rohs Compliant: Yes |Diodes Inc. BCX5616TA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3468 |
|
$0.1330 / $0.3340 | Buy Now |
|
DISTI #
86AK4322
|
Newark | Transistor, Npn, 80V, 1A, Sot-89 Rohs Compliant: Yes |Diodes Inc. BCX5616TA RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0660 / $0.0890 | Buy Now |
|
DISTI #
BCX5616CT-ND
|
DigiKey | TRANS NPN 80V 1A SOT-89-3 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1791 In Stock |
|
$0.0512 / $0.3700 | Buy Now |
|
DISTI #
BCX5616TA
|
Avnet Americas | Bipolar (BJT) Single Transistor, NPN, 80 V, 1 A, 1 W, SOT-89, Surface Mount - Tape and Reel (Alt: BCX5616TA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0422 / $0.0448 | Buy Now |
|
DISTI #
BCX5616TA
|
Avnet Americas | Bipolar (BJT) Single Transistor, NPN, 80 V, 1 A, 1 W, SOT-89, Surface Mount - Tape and Reel (Alt: BCX5616TA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0395 / $0.0422 | Buy Now |
|
DISTI #
522-BCX5616TA
|
Mouser Electronics | Bipolar Transistors - BJT NPN Medium Power RoHS: Compliant | 22606 |
|
$0.0560 / $0.3100 | Buy Now |
|
DISTI #
70437738
|
RS | Transistor NPN 1A 80V 100hfe SOT89 Min Qty: 50 Package Multiple: 1 Container: Bulk | 0 |
|
$0.1530 / $0.1800 | RFQ |
|
|
Future Electronics | BCP5616 Series NPN 1 A 80 V SMT Silicon Medium Power Transistor - SOT-89 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Container: Reel | 161000Reel |
|
$0.0416 / $0.0457 | Buy Now |
|
|
Future Electronics | BCP5616 Series NPN 1 A 80 V SMT Silicon Medium Power Transistor - SOT-89 Min Qty: 1000 Package Multiple: 1000 |
323000 null |
|
$0.0416 / $0.0457 | Buy Now |
|
DISTI #
BCX5616TA
|
TME | Transistor: NPN, bipolar, 80V, 1A, 1.3W, SOT89 Min Qty: 1 | 875 |
|
$0.0513 / $0.1067 | Buy Now |
Part Details for BCX5616TA
BCX5616TA CAD Models
BCX5616TA Part Data Attributes
|
|
BCX5616TA
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
BCX5616TA
Diodes Incorporated
Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 1 A | |
| Collector-Base Capacitance-Max | 25 pF | |
| Collector-Emitter Voltage-Max | 80 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 2 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 150 MHz | |
| VCEsat-Max | 0.5 V |
