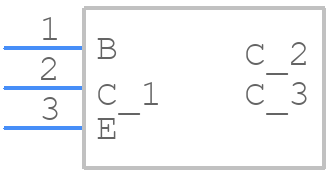

Part Symbol
-
Footprint
-

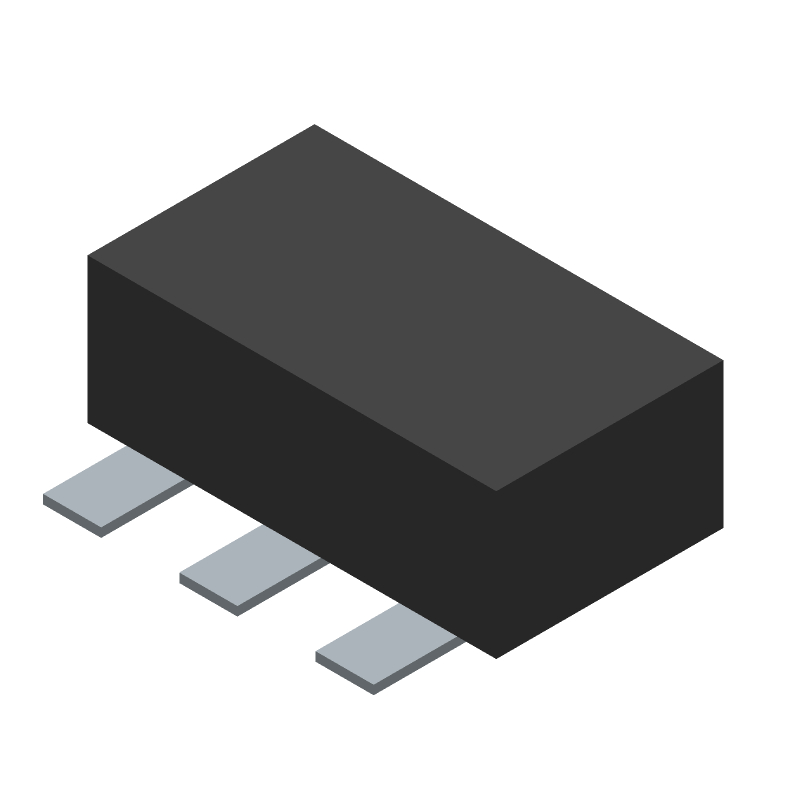

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BCX5616H6327XTSA1 by Infineon Technologies AG
Results Overview of BCX5616H6327XTSA1 by Infineon Technologies AG
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BCX5616H6327XTSA1 Information
BCX5616H6327XTSA1 by Infineon Technologies AG is an Other Transistor.
Other Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BCX5616H6327XTSA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
448-BCX5616H6327XTSA1TR-ND
|
DigiKey | TRANS NPN 80V 1A PG-SOT89 Min Qty: 7000 Lead time: 4 Weeks Container: Tape & Reel (TR) | Limited Supply - Call |
|
$0.1190 | Buy Now |
|
DISTI #
BCX5616H6327XTSA1
|
Avnet Americas | Trans GP BJT NPN 80V 1A 4-Pin(3+Tab) SOT-89 T/R - Tape and Reel (Alt: BCX5616H6327XTSA1) RoHS: Compliant Min Qty: 7000 Package Multiple: 1000 Lead time: 4 Weeks, 0 Days Container: Reel | 0 |
|
$0.0933 / $0.0994 | Buy Now |
|
DISTI #
726-BCX5616H6327XTSA
|
Mouser Electronics | Bipolar Transistors - BJT AF TRANSISTORS RoHS: Compliant | 21214 |
|
$0.0990 / $0.3100 | Buy Now |
|
DISTI #
V72:2272_06391833
|
Arrow Electronics | Trans GP BJT NPN 80V 1A 2000mW Automotive AEC-Q101 4-Pin(3+Tab) SOT-89 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2143 Container: Cut Strips | Americas - 10 |
|
$0.0978 / $0.1488 | Buy Now |
|
DISTI #
SP001125482
|
EBV Elektronik | Trans GP BJT NPN 80V 1A 4Pin3Tab SOT89 TR (Alt: SP001125482) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 5 Weeks, 0 Days | EBV - 60000 |
|
Buy Now | |
|
|
New Advantage Corporation | SOT89-4/NPN Silicon AF Transistors RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 48000 |
|
$0.4031 / $0.4367 | Buy Now |
|
|
Vyrian | Transistors | 67954 |
|
RFQ |
Part Details for BCX5616H6327XTSA1
BCX5616H6327XTSA1 CAD Models
BCX5616H6327XTSA1 Part Data Attributes
|
|
BCX5616H6327XTSA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
BCX5616H6327XTSA1
Infineon Technologies AG
Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Collector Current-Max (IC) | 1 A | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Operating Temperature-Max | 150 °C | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 2 W | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) |
Alternate Parts for BCX5616H6327XTSA1
This table gives cross-reference parts and alternative options found for BCX5616H6327XTSA1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BCX5616H6327XTSA1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BCX56-16-TP | Micro Commercial Components | $0.1453 | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, PLASTIC, PACKAGE-3 | BCX5616H6327XTSA1 vs BCX56-16-TP |
| BCX56-16 | NXP Semiconductors | Check for Price | TRANSISTOR 1000 mA, 80 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-243, PLASTIC, SC-62, 3 PIN, BIP General Purpose Small Signal | BCX5616H6327XTSA1 vs BCX56-16 |
| BCX56-16E6433 | Infineon Technologies AG | Check for Price | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, | BCX5616H6327XTSA1 vs BCX56-16E6433 |
| BCX56-16-TAPE-13 | NXP Semiconductors | Check for Price | TRANSISTOR 1000 mA, 80 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal | BCX5616H6327XTSA1 vs BCX56-16-TAPE-13 |
| BCX56-16TA | Zetex / Diodes Inc | Check for Price | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon | BCX5616H6327XTSA1 vs BCX56-16TA |
| BCX56-16 | WEITRON INTERNATIONAL CO., LTD. | Check for Price | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, LEAD FREE, PLASTIC PACKAGE-3 | BCX5616H6327XTSA1 vs BCX56-16 |
| BCX56-16E6327 | Infineon Technologies AG | Check for Price | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, | BCX5616H6327XTSA1 vs BCX56-16E6327 |
| BCX56-16 | Diodes Incorporated | Check for Price | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, | BCX5616H6327XTSA1 vs BCX56-16 |
