BCS-125-L-D-PE by: Samtec Inc

Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT

Part Details for BCS-125-L-D-PE by Samtec Inc

Results Overview of BCS-125-L-D-PE by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

BCS-125-L-D-PE Information

BCS-125-L-D-PE by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for BCS-125-L-D-PE

Part # Distributor Description Stock Price Buy
DISTI # 3937-BCS-125-L-D-PE-ND
DigiKey CONN RCPT 50POS 0.1 GOLD PCB Min Qty: 1 Lead time: 2 Weeks Container: Bulk MARKETPLACE PRODUCT 1556
In Stock
  • 1 $40.2000
$40.2000 Buy Now
DISTI # SAM1007-25-ND
DigiKey CONN RCPT 50POS 0.1 GOLD PCB Min Qty: 1 Lead time: 2 Weeks Container: Tube Temporarily Out of Stock
  • 1 $7.5300
  • 10 $6.4020
  • 100 $5.4411
  • 500 $5.4068
$5.4068 / $7.5300 Buy Now
DISTI # 200-BCS125LDPE
Mouser Electronics Headers & Wire Housings Pass-Through Socket Strip RoHS: Compliant 10
  • 1 $7.6900
  • 9 $7.3700
  • 27 $6.3800
  • 54 $6.0200
  • 108 $5.0700
  • 252 $5.0500
  • 504 $4.6600
  • 1,008 $4.4000
$4.4000 / $7.6900 Buy Now
Onlinecomponents.com .100" (2.54 mm) Tiger Claw™ Pass-through Socket Strip RoHS: Compliant 0
  • 5 $8.2100
  • 25 $6.6700
  • 50 $6.5700
  • 100 $5.3300
  • 250 $5.1000
  • 500 $4.0800
  • 1,000 $3.4000
  • 2,500 $2.6800
$2.6800 / $8.2100 Buy Now
DISTI # 85031463
Verical Conn Socket Strip SKT 50 POS 2.54mm Solder ST Top Entry Thru-Hole TIGER CLAW™ Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Americas - 2287
  • 2 $7.3700
  • 10 $6.7800
  • 25 $6.3800
  • 50 $6.0200
  • 100 $4.8900
$4.8900 / $7.3700 Buy Now
Quest Components 50 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET 52
  • 1 $11.4660
  • 10 $7.6440
  • 34 $7.0707
$7.0707 / $11.4660 Buy Now
Quest Components 50 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, SOCKET 18
  • 1 $5.8500
  • 3 $3.9000
  • 7 $2.9250
$2.9250 / $5.8500 Buy Now
DISTI # 5cd8d413cd7c1c4c38202117
Samtec Pass-Through Socket Strip, 0.100" pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 2287
  • 1 $7.3700
  • 10 $6.7800
  • 25 $6.3800
  • 50 $6.0200
  • 100 $4.8900
  • 500 $3.9800
  • 1,000 $3.2200
  • 2,000 $2.6000
$2.6000 / $7.3700 Buy Now
DISTI # 000000000000098010
Sager Headers & Wire Housings Pass-Through Socket Strip, 0.100 pitch Min Qty: 1 2287
  • 1 $7.3700
  • 10 $6.7800
  • 25 $6.3800
  • 50 $6.0200
  • 100 $4.8900
  • 500 $3.9800
$3.9800 / $7.3700 Buy Now
DISTI # BCS-125-L-D-PE
Avnet Abacus PCB Receptacle BoardtoBoard 254 mm 2 Rows 50 Contacts Through Hole Mount (Alt: BCS-125-L-D-PE) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics .100" (2.54 mm) Tiger Claw™ Pass-through Socket Strip RoHS: Compliant 0
  • 5 $8.2100
  • 25 $6.6700
  • 50 $6.5700
  • 100 $5.3300
  • 250 $5.1000
  • 500 $4.0800
  • 1,000 $3.4000
  • 2,500 $2.6800
$2.6800 / $8.2100 Buy Now

Part Details for BCS-125-L-D-PE

BCS-125-L-D-PE CAD Models

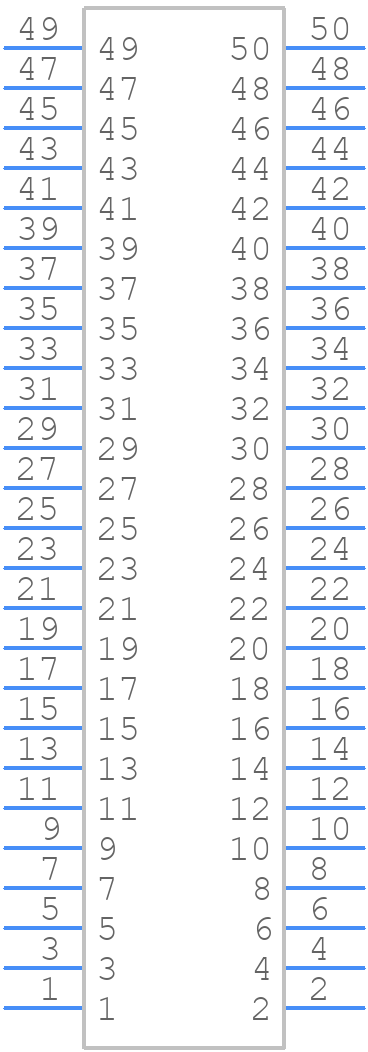

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BCS-125-L-D-PE Part Data Attributes

Parametric Data
BCS-125-L-D-PE Samtec Inc
Buy Now Datasheet
Compare Parts:
BCS-125-L-D-PE Samtec Inc Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 1 Week
Samacsys Manufacturer SAMTEC
Body Breadth 0.2 inch
Body Depth 0.293 inch
Body Length 2.5 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (10) OVER NICKEL (50)
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 4.448 N
Insulator Color BLACK
Insulator Material GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS ARE AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 7.6 mm
Plating Thickness 10u inch
Rated Current (Signal) 4.6 A
Reference Standard UL
Terminal Length 0.128 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 50
UL Flammability Code 94V-0
