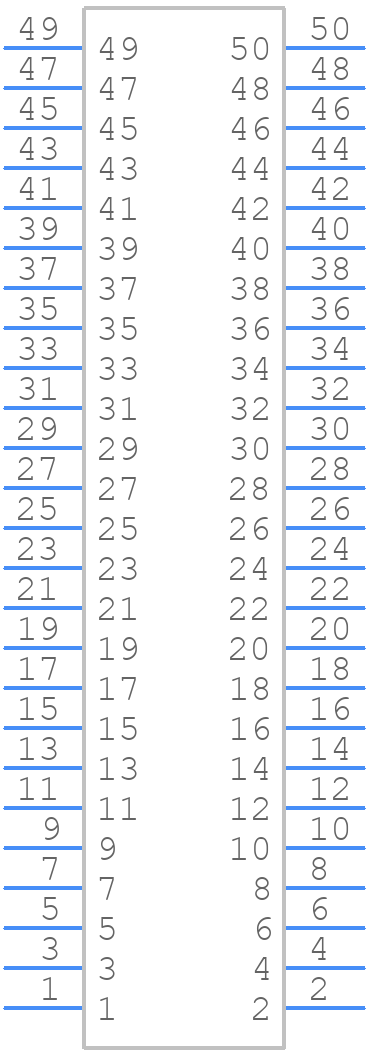

Part Symbol
-

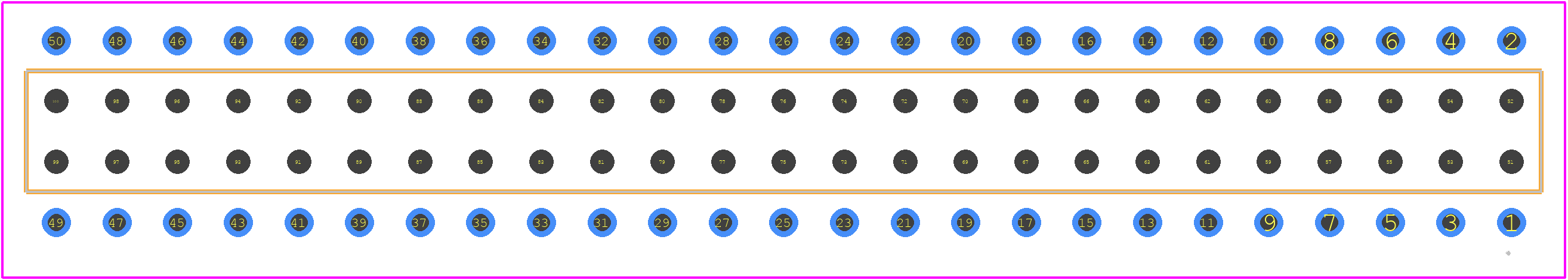

Footprint
-

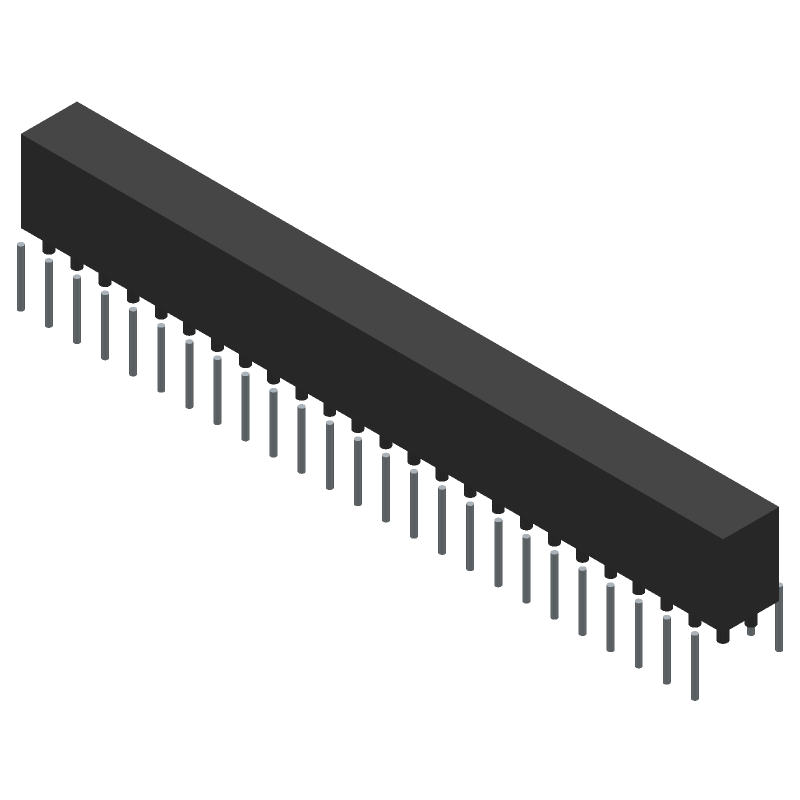

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BCS-125-L-D-PE-BE by Samtec Inc
Results Overview of BCS-125-L-D-PE-BE by Samtec Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
BCS-125-L-D-PE-BE Information
BCS-125-L-D-PE-BE by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for BCS-125-L-D-PE-BE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87P2636
|
Newark | Socket, 2.54Mm, Pass-Through, 50 Position, 2Row, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:50Contacts, Connector Mounting:Through Hole Mount, Product Range:Bcs Series Rohs Compliant: Yes |Samtec BCS-125-L-D-PE-BE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 2790 |
|
$5.3400 / $10.7400 | Buy Now |
|
DISTI #
3937-BCS-125-L-D-PE-BE-ND
|
DigiKey | CONN RCPT 50POS 0.1 GOLD PCB Min Qty: 1 Lead time: 6 Weeks Container: Tube MARKETPLACE PRODUCT |
3522 In Stock |
|
$44.1800 | Buy Now |
|
DISTI #
SAM12450-ND
|
DigiKey | CONN RCPT 50POS 0.1 GOLD PCB Min Qty: 1 Lead time: 6 Weeks Container: Tube |
8 In Stock |
|
$5.6400 / $8.1000 | Buy Now |
|
DISTI #
BCS-125-L-D-PE-BE
|
Avnet Americas | Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Tube - Rail/Tube (Alt: BCS-125-L-D-PE-BE) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube | 668 Factory Stock |
|
$5.1552 / $7.9380 | Buy Now |
|
DISTI #
200-BCS125LDPEBE
|
Mouser Electronics | Headers & Wire Housings Pass-Through Socket Strip RoHS: Compliant | 2 |
|
$4.5100 / $8.1000 | Buy Now |
|
|
Onlinecomponents.com | .100" (2.54 mm) Tiger Claw™ Pass-through Socket Strip RoHS: Compliant | 662 Factory Stock |
|
$2.9400 / $9.0400 | Buy Now |
|
DISTI #
85054996
|
Verical | Conn Socket Strip SKT 50 POS 2.54mm Solder ST Bottom Entry Thru-Hole TIGER CLAW™ Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 | Americas - 662 |
|
$5.3700 / $8.1000 | Buy Now |
|
DISTI #
5cd8d3c2cd7c1c4c381fc14d
|
Samtec | Pass-Through Socket Strip, 0.100" pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 662 |
|
$2.8600 / $8.1000 | Buy Now |
|
|
Powell Electronics | .100 2.54 mm Tiger Claw Pass-through Skt Min Qty: 1 | 441 |
|
$5.3700 / $8.1000 | Buy Now |
|
DISTI #
000000000000736106
|
Sager | Headers & Wire Housings Pass-Through Socket Strip, 0.100 pitch Min Qty: 1 | 662 |
|
$4.3700 / $8.1000 | Buy Now |
Part Details for BCS-125-L-D-PE-BE
BCS-125-L-D-PE-BE CAD Models
BCS-125-L-D-PE-BE Part Data Attributes
|
|
BCS-125-L-D-PE-BE
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
BCS-125-L-D-PE-BE
Samtec Inc
Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Socket, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | ELP, BOTTOM ENTRY | |
| Body Breadth | 0.2 inch | |
| Body Depth | 0.29 inch | |
| Body Length | 2.5 inch | |
| Body/Shell Style | SOCKET | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD (10) OVER NICKEL (50) | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 10 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 375VAC V | |
| Durability | 500 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 1.39 N | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Contact Row Spacing | 0.1 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 7.62 mm | |
| Plating Thickness | 10u inch | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL, CSA | |
| Terminal Length | 0.14 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 50 | |
| Withdrawl Force-Min | .834 N |
Alternate Parts for BCS-125-L-D-PE-BE
This table gives cross-reference parts and alternative options found for BCS-125-L-D-PE-BE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BCS-125-L-D-PE-BE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BCS-125-T-D-PE-BE | Samtec Inc | $5.8211 | Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, | BCS-125-L-D-PE-BE vs BCS-125-T-D-PE-BE |
BCS-125-L-D-PE-BE Frequently Asked Questions (FAQ)
-
The recommended mating sequence for the BCS-125-L-D-PE-BE connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
-
Yes, the BCS-125-L-D-PE-BE connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
-
The maximum operating temperature for the BCS-125-L-D-PE-BE connector is 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
-
The BCS-125-L-D-PE-BE connector has a standard mating height of 12.5mm. However, Samtec offers custom mating heights upon request. Contact Samtec's technical support for more information.
-
Yes, the BCS-125-L-D-PE-BE connector is designed for automated assembly processes. It has a pick-and-place compatible design and can be used with standard assembly equipment.
