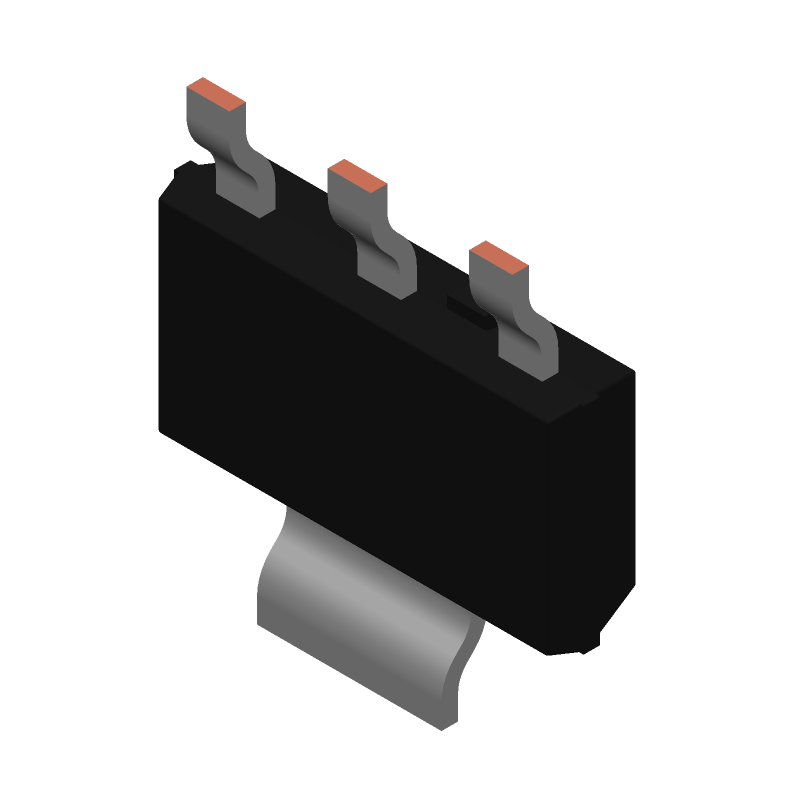

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BCP56TX by Nexperia
Results Overview of BCP56TX by Nexperia
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
BCP56TX Information
BCP56TX by Nexperia is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BCP56TX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98Y2101
|
Newark | Transistor, Bipolar, Aec-Q101, Npn, 80V, Transistor Polarity:Npn, Collector Emitter Voltage V(Br)Ceo:80V, Transition Frequency Ft:180Mhz, Power Dissipation Pd:650Mw, Dc Collector Current:1A, Dc Current Gain Hfe:40Hfe, Transistor Caserohs Compliant: Yes |Nexperia BCP56TX RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1050 |
|
$0.1190 / $0.3750 | Buy Now |
|
DISTI #
1727-2536-1-ND
|
DigiKey | TRANS NPN 80V 1A SOT-223 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
624 In Stock |
|
$0.0468 / $0.3900 | Buy Now |
|
DISTI #
BCP56TX
|
Avnet Americas | Trans GP BJT NPN 80V 1A 4-Pin SOT-223 T/R - Tape and Reel (Alt: BCP56TX) RoHS: Compliant Min Qty: 16000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0374 / $0.0387 | Buy Now |
|
DISTI #
771-BCP56TX
|
Mouser Electronics | Bipolar Transistors - BJT 20 V, 2 A NPN medium power transistor RoHS: Compliant | 1910 |
|
$0.0480 / $0.3300 | Buy Now |
|
DISTI #
V72:2272_15994034
|
Arrow Electronics | Trans GP BJT NPN 80V 1A 1800mW 4-Pin(3+Tab) SC-73 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2237 Container: Cut Strips | Americas - 631 |
|
$0.0304 / $0.1462 | Buy Now |
|
|
Future Electronics | BCP56 Series 80 V 1 A Surface Mount Medium Power Transistor - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks Container: Reel | 81000Reel |
|
$0.0419 / $0.0461 | Buy Now |
|
DISTI #
85964823
|
Verical | Trans GP BJT NPN 80V 1A 1800mW 4-Pin(3+Tab) SC-73 T/R RoHS: Compliant Min Qty: 6370 Package Multiple: 1 Date Code: 1801 | Americas - 30000 |
|
$0.0440 / $0.0589 | Buy Now |
|
DISTI #
68372718
|
Verical | Trans GP BJT NPN 80V 1A 1800mW 4-Pin(3+Tab) SC-73 T/R RoHS: Compliant Min Qty: 133 Package Multiple: 1 Date Code: 2237 | Americas - 631 |
|
$0.0304 / $0.0551 | Buy Now |
|
|
Rochester Electronics | BCP56T - Small Signal Bipolar Transistor, 1A, 80V, NPN, Silicon RoHS: Compliant Status: Active Min Qty: 1 | 30000 |
|
$0.0352 / $0.0568 | Buy Now |
|
DISTI #
BCP56TX
|
TTI | Bipolar Transistors - BJT 20 V, 2 A NPN medium power transistor RoHS: Compliant pbFree: Pb-Free Min Qty: 10000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.0420 / $0.0440 | Buy Now |
Part Details for BCP56TX
BCP56TX CAD Models
BCP56TX Part Data Attributes
|
|
BCP56TX
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BCP56TX
Nexperia
BCP56T Series - 80 V, 1 A NPN medium power transistors@en-us SC-73 4-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SC-73 | |
| Package Description | SC-73, 4 PIN | |
| Pin Count | 4 | |
| Manufacturer Package Code | SOT223 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 1 A | |
| Collector-Emitter Voltage-Max | 80 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 63 | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 155 MHz |
Alternate Parts for BCP56TX
This table gives cross-reference parts and alternative options found for BCP56TX. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BCP56TX, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BCP56-10TX | Nexperia | $0.1051 | BCP56T Series - 80 V, 1 A NPN medium power transistors@en-us SC-73 4-Pin | BCP56TX vs BCP56-10TX |
| BCP56TF | Nexperia | $0.1222 | BCP56T Series - 80 V, 1 A NPN medium power transistors@en-us SC-73 4-Pin | BCP56TX vs BCP56TF |
| BCP5610TA | Diodes Incorporated | $0.1461 | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, PLASTIC PACKAGE-4 | BCP56TX vs BCP5610TA |
| BCX5610TC | Diodes Incorporated | Check for Price | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, | BCP56TX vs BCX5610TC |
BCP56TX Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BCP56TX is -40°C to 150°C.
-
To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
-
The recommended storage temperature range for the BCP56TX is -40°C to 30°C.
-
Yes, the BCP56TX is AEC-Q101 qualified, making it suitable for use in automotive applications.
-
Follow standard soldering and assembly practices, such as using a soldering iron with a temperature below 260°C and avoiding excessive mechanical stress.
