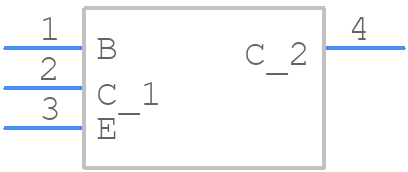

Part Symbol
-

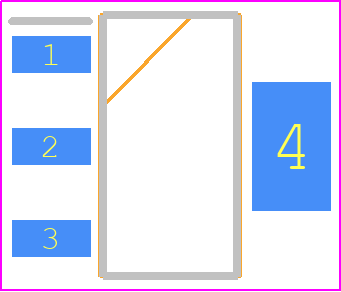

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BCP56-16TX by Nexperia
Results Overview of BCP56-16TX by Nexperia
- Distributor Offerings: (26 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
BCP56-16TX Information
BCP56-16TX by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BCP56-16TX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
34AH6698
|
Newark | Bcp56-16T/Sot223/Sc-73 Rohs Compliant: Yes |Nexperia BCP56-16TX RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 9000 |
|
$0.0370 / $0.0420 | Buy Now |
|
DISTI #
98Y2100
|
Newark | Transistor, Npn, 80V, 1A, Sot-223, Transistor Polarity:Npn, Collector Emitter Voltage Max:80V, Continuous Collector Current:1A, Power Dissipation:650Mw, Transistor Mounting:Surface Mount, No. Of Pins:4Pins, Product Range:Bcp56 Seriesrohs Compliant: Yes |Nexperia BCP56-16TX RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 3941 |
|
$0.0640 | Buy Now |
|
DISTI #
86AK4295
|
Newark | Transistor, Npn, 80V, 1A, Sot-223 Rohs Compliant: Yes |Nexperia BCP56-16TX RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1370 | Buy Now |
|
DISTI #
1727-2538-1-ND
|
DigiKey | TRANS NPN 80V 1A SOT-223 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4411 In Stock |
|
$0.0547 / $0.3900 | Buy Now |
|
DISTI #
BCP56-16TX
|
Avnet Americas | Bipolar (BJT) Single Transistor, NPN, 80 V, 1 A, 650 mW, SOT-223, Surface Mount - Tape and Reel (Alt: BCP56-16TX) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 9000 |
|
$0.0397 | Buy Now |
|
DISTI #
771-BCP56-16TX
|
Mouser Electronics | Bipolar Transistors - BJT 80 V, 1 A NPN medium power transistors RoHS: Compliant | 6364 |
|
$0.0480 / $0.3900 | Buy Now |
|
DISTI #
E02:0323_10182527
|
Arrow Electronics | Trans GP BJT NPN 80V 1A 1800mW 4-Pin(3+Tab) SC-73 T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks Date Code: 2507 | Europe - 14000 |
|
$0.0415 / $0.0731 | Buy Now |
|
DISTI #
V36:1790_15994036
|
Arrow Electronics | Trans GP BJT NPN 80V 1A 1800mW 4-Pin(3+Tab) SC-73 T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks Date Code: 2508 | Americas - 6000 |
|
$0.0393 / $0.0720 | Buy Now |
|
DISTI #
V72:2272_15994036
|
Arrow Electronics | Trans GP BJT NPN 80V 1A 1800mW 4-Pin(3+Tab) SC-73 T/R RoHS: Compliant Min Qty: 5 Package Multiple: 1 Lead time: 8 Weeks Date Code: 1912 Container: Cut Strips | Americas - 5 |
|
$0.0727 | Buy Now |
|
|
Future Electronics | BCP56 Series 1 A SMT NPN Medium Power Transistor - SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks Container: Reel | 5000Reel |
|
$0.0419 / $0.0461 | Buy Now |
Part Details for BCP56-16TX
BCP56-16TX CAD Models
BCP56-16TX Part Data Attributes
|
|
BCP56-16TX
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BCP56-16TX
Nexperia
BCP56T Series - 80 V, 1 A NPN medium power transistors@en-us SC-73 4-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SC-73 | |
| Package Description | SC-73, 4 PIN | |
| Pin Count | 4 | |
| Manufacturer Package Code | SOT223 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 1 A | |
| Collector-Emitter Voltage-Max | 80 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 100 | |
| JESD-30 Code | R-PDSO-G4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 155 MHz |
BCP56-16TX Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BCP56-16TX is -40°C to 150°C.
-
To ensure reliability, it's essential to follow proper thermal management practices, such as providing adequate heat sinking and ensuring good airflow around the device.
-
The recommended storage condition for the BCP56-16TX is in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and relative humidity below 60%.
-
Yes, the BCP56-16TX is designed to withstand high-vibration environments, but it's essential to follow proper mounting and soldering techniques to ensure reliable operation.
-
To prevent ESD damage, handle the BCP56-16TX with anti-static wrist straps, mats, or other ESD protection devices, and avoid touching the device's pins or leads.
