Transistors / Small Signal Bipolar Transistors / BC858AW
Datasheets
BC858AW by:

Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3

Part Details for BC858AW by PanJit Semiconductor

Results Overview of BC858AW by PanJit Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BC858AW Information

BC858AW by PanJit Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Part Details for BC858AW

BC858AW CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

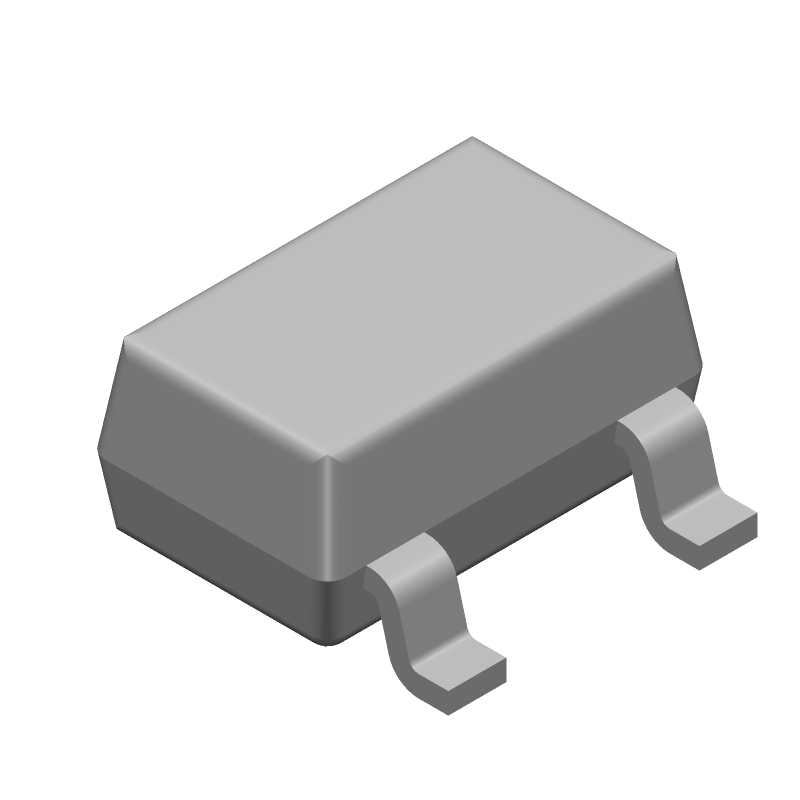

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BC858AW Part Data Attributes

Parametric Data
BC858AW PanJit Semiconductor
Buy Now Datasheet
Compare Parts:
BC858AW PanJit Semiconductor Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANJIT INTERNATIONAL INC
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-3
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer PANJIT
Collector Current-Max (IC) 0.1 A
Collector-Emitter Voltage-Max 30 V
Configuration SINGLE
DC Current Gain-Min (hFE) 110
JESD-30 Code R-PDSO-G3
Number of Elements 1
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type PNP
Qualification Status Not Qualified
Surface Mount YES
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application AMPLIFIER
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 200 MHz

Alternate Parts for BC858AW

This table gives cross-reference parts and alternative options found for BC858AW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BC858AW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BC858AW-7-F Diodes Incorporated $0.0203 Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, GREEN, PLASTIC PACKAGE-3 BC858AW vs BC858AW-7-F
BC858ATRL NXP Semiconductors Check for Price TRANSISTOR 100 mA, 30 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal BC858AW vs BC858ATRL
BC858AW_R2_00001 PanJit Semiconductor Check for Price Small Signal Bipolar Transistor, 0.1A I(C), PNP, BC858AW vs BC858AW_R2_00001
BC858ALT1 Motorola Mobility LLC Check for Price 100mA, 30V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-236AB BC858AW vs BC858ALT1
BC858AW-TAPE-13 NXP Semiconductors Check for Price TRANSISTOR 100 mA, 30 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal BC858AW vs BC858AW-TAPE-13
BC858AW Lite-On Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, GREEN, PLASTIC PACKAGE-3 BC858AW vs BC858AW
BC858AE6433 Infineon Technologies AG Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon BC858AW vs BC858AE6433
BC858AW_R1_00001 PanJit Semiconductor Check for Price Small Signal Bipolar Transistor, 0.1A I(C), PNP, BC858AW vs BC858AW_R1_00001
Part Number Manufacturer Composite Price Description Compare
BC858AWT3 onsemi Check for Price TRANSISTOR 100 mA, 30 V, PNP, Si, SMALL SIGNAL TRANSISTOR, SC-70, 3 PIN, BIP General Purpose Small Signal BC858AW vs BC858AWT3
BC858ATC Diodes Incorporated Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon BC858AW vs BC858ATC
BC858AWT1 onsemi Check for Price 100 mA, 30V PNP Bipolar Junction Transistor, SC-70 (SOT-323) 3 LEAD, 3000-REEL BC858AW vs BC858AWT1
BC858A-TAPE-13 NXP Semiconductors Check for Price TRANSISTOR 100 mA, 30 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal BC858AW vs BC858A-TAPE-13
BC858A-13 Diodes Incorporated Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3 BC858AW vs BC858A-13
BC858A-TAPE-7 NXP Semiconductors Check for Price TRANSISTOR 100 mA, 30 V, PNP, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal BC858AW vs BC858A-TAPE-7
BC858AWT1 Motorola Mobility LLC Check for Price 100mA, 30V, PNP, Si, SMALL SIGNAL TRANSISTOR BC858AW vs BC858AWT1
BC858A YAGEO Corporation Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon BC858AW vs BC858A
BC858ATR Central Semiconductor Corp Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 30V V(BR)CEO, 1-Element, PNP, Silicon, BC858AW vs BC858ATR
BC858AMTF Fairchild Semiconductor Corporation Check for Price PNP Epitaxial Silicon Transistor, 3LD, SOT23, JEDEC TO-236, LOW PROFILE, 3000/TAPE REEL BC858AW vs BC858AMTF
