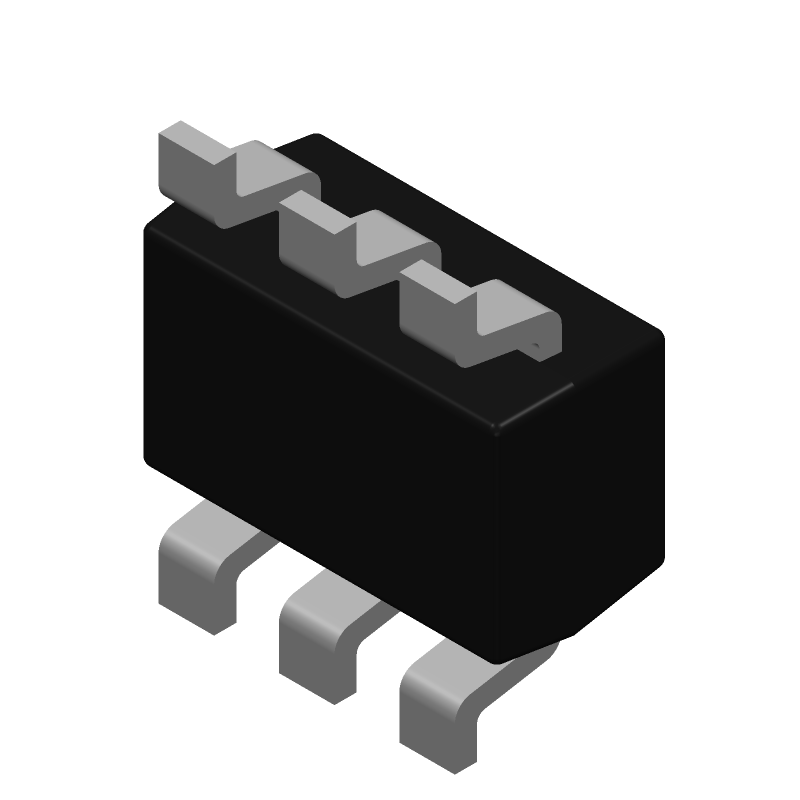

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC857BS-TP by Micro Commercial Components
Results Overview of BC857BS-TP by Micro Commercial Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Security and Surveillance
Audio and Video Systems
BC857BS-TP Information
BC857BS-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC857BS-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-BC857BS-TPCT-ND
|
DigiKey | TRANS 2PNP 45V 200MA SOT-363 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
10703 In Stock |
|
$0.0251 / $0.2300 | Buy Now |
|
DISTI #
833-BC857BS-TP
|
Mouser Electronics | Bipolar Transistors - BJT PNP -50Vcbo -45Vceo 300mW -5Vebo -200mA RoHS: Compliant | 0 |
|
$0.0250 / $0.0360 | Order Now |
|
DISTI #
E54:1762_15786078
|
Arrow Electronics | Trans GP BJT PNP 45V 0.2A 300mW 6-Pin SOT-363 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2504 | Europe - 3000 |
|
$0.0250 / $0.0360 | Buy Now |
|
DISTI #
87732823
|
Verical | Trans GP BJT PNP 45V 0.2A 300mW 6-Pin SOT-363 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2504 | Americas - 3000 |
|
$0.0250 / $0.0360 | Buy Now |
|
DISTI #
BC857BS-TP
|
TME | Transistor: PNP x2, bipolar, 45V, 0.2A, 300mW, SOT363 Min Qty: 10 | 0 |
|
$0.0365 / $0.0585 | RFQ |
|
|
LCSC | 45V 300mW 2202mA5V 200mA PNP SOT-363 Bipolar (BJT) ROHS | 2820 |
|
$0.0144 / $0.0273 | Buy Now |
Part Details for BC857BS-TP
BC857BS-TP CAD Models
BC857BS-TP Part Data Attributes
|
|
BC857BS-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BC857BS-TP
Micro Commercial Components
Small Signal Bipolar Transistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | SOT-363, 6 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Base Capacitance-Max | 3.5 pF | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| DC Current Gain-Min (hFE) | 220 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 200 MHz | |
| VCEsat-Max | 0.65 V |
BC857BS-TP Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the BC857BS-TP is -55°C to 150°C, although the datasheet only specifies a storage temperature range.
-
To ensure reliability in high-humidity environments, it's recommended to follow proper handling and storage procedures, such as storing the devices in a dry, nitrogen-filled environment, and using moisture-sensitive packaging.
-
The maximum allowable power dissipation for the BC857BS-TP is dependent on the ambient temperature and the thermal resistance of the device. A safe estimate is to limit the power dissipation to 500 mW at 25°C ambient temperature.
-
While the BC857BS-TP can be used as a switch, its frequency response is limited to around 100 kHz due to its internal capacitances and resistances. For high-frequency applications, a faster transistor with a higher fT (transition frequency) may be required.
-
To prevent EOS damage, ensure that the device is operated within its recommended voltage and current ratings, and that it is protected from voltage spikes and surges using transient voltage suppressors or other protection circuits.
