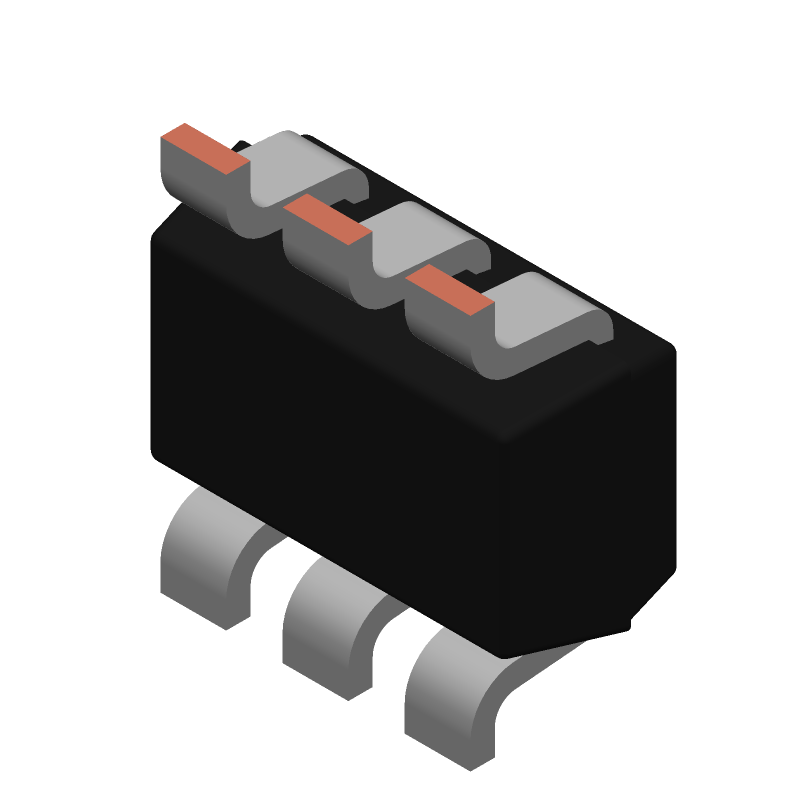

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC856S,115 by Nexperia
Results Overview of BC856S,115 by Nexperia
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Telecommunications
BC856S,115 Information
BC856S,115 by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC856S,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2114880RL
|
Farnell | TRANSISTOR, PNP/PNP, 65V, SOT363 RoHS: Compliant Min Qty: 500 Lead time: 7 Weeks, 1 Days Container: Reel | 2760 |
|
$0.0436 / $0.0600 | Buy Now |
|
DISTI #
2114880
|
Farnell | TRANSISTOR, PNP/PNP, 65V, SOT363 RoHS: Compliant Min Qty: 5 Lead time: 7 Weeks, 1 Days Container: Cut Tape | 2760 |
|
$0.0436 / $0.2280 | Buy Now |
|
DISTI #
4275560
|
Farnell | RoHS: Compliant Min Qty: 3000 Container: Each | 0 |
|
$0.0256 | Buy Now |
|
DISTI #
2439033
|
Farnell | TRANSISTOR, PNP/PNP, 65V, SOT363, REEL RoHS: Compliant Min Qty: 3000 Lead time: 7 Weeks, 1 Days Container: Reel | 0 |
|
$0.0235 / $0.0267 | Buy Now |
|
DISTI #
1727-4864-1-ND
|
DigiKey | TRANS 2PNP 65V 100MA 6-TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
67005 In Stock |
|
$0.0255 / $0.2300 | Buy Now |
|
DISTI #
BC856S,115
|
Avnet Americas | - Tape and Reel (Alt: BC856S,115) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel | 21000 |
|
$0.0331 | Buy Now |
|
DISTI #
771-BC856S115
|
Mouser Electronics | Bipolar Transistors - BJT 65 V, 100 mA PNP/PNP general-purpose transistor RoHS: Compliant | 35322 |
|
$0.0260 / $0.2300 | Buy Now |
|
DISTI #
A03:0893_00016547
|
Arrow Electronics | Trans GP BJT PNP 65V 0.1A 400mW 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2420 | Asia - 255000 |
|
$0.0157 / $0.0340 | Buy Now |
|
DISTI #
E02:0323_00016547
|
Arrow Electronics | Trans GP BJT PNP 65V 0.1A 400mW 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2451 | Europe - 126000 |
|
$0.0177 / $0.0347 | Buy Now |
|
DISTI #
E21:3489_00016547
|
Arrow Electronics | Trans GP BJT PNP 65V 0.1A 400mW 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 4088 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2423 | Europe - 34214 |
|
$0.0172 / $0.0243 | Buy Now |
Part Details for BC856S,115
BC856S,115 CAD Models
BC856S,115 Part Data Attributes
|
|
BC856S,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BC856S,115
Nexperia
vp_BC856S - 65 V, 100 mA PNP/PNP general-purpose transistor@en-us TSSOP 6-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TSSOP | |
| Package Description | PLASTIC, SC-88, 6 PIN | |
| Pin Count | 6 | |
| Manufacturer Package Code | SOT363 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 6 Weeks | |
| Date Of Intro | 2017-02-01 | |
| Samacsys Manufacturer | Nexperia | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 65 V | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| DC Current Gain-Min (hFE) | 110 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Reference Standard | IEC-60134 | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz |
BC856S,115 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC856S,115 is -55°C to 150°C.
-
Yes, the BC856S,115 can be used as a switch due to its high current gain and low saturation voltage.
-
The maximum collector current rating for the BC856S,115 is 1.5 A.
-
Yes, the BC856S,115 is suitable for high-frequency applications due to its high transition frequency (fT) of 250 MHz.
-
The typical storage temperature range for the BC856S,115 is -55°C to 150°C.
