Transistors / Small Signal Bipolar Transistors / BC856BMTF
Datasheets
BC856BMTF by:

PNP Epitaxial Silicon Transistor, SOT-23-3, 3000-REEL

Part Details for BC856BMTF by onsemi

Results Overview of BC856BMTF by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Telecommunications

BC856BMTF Information

BC856BMTF by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for BC856BMTF

Part # Distributor Description Stock Price Buy
DISTI # 15R3416
Newark Transistor, Pnp, -65V, Sot-23, Transistor Polarity:Pnp, Collector Emitter Voltage Max:65V, Continuous Collector Current:100Ma, Power Dissipation:310Mw, Transistor Mounting:Surface Mount, No. Of Pins:3Pins, Transition Frequency:150Mhzrohs Compliant: Yes |Onsemi BC856BMTF RoHS: Compliant Min Qty: 21000 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
Buy Now
DISTI # BC856BMTF
Avnet Silica Trans GP BJT PNP 65V 01A 3Pin SOT23 TR (Alt: BC856BMTF) RoHS: Compliant Min Qty: 27000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days Silica - 0
Buy Now
DISTI # BC856BMTF
EBV Elektronik Trans GP BJT PNP 65V 01A 3Pin SOT23 TR (Alt: BC856BMTF) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days EBV - 0
Buy Now

Part Details for BC856BMTF

BC856BMTF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

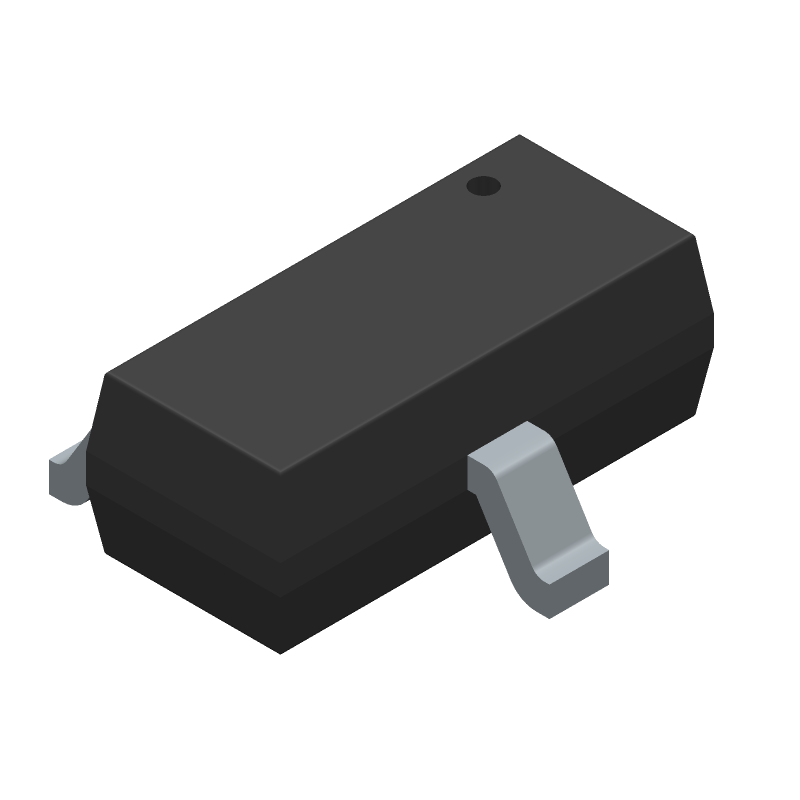

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BC856BMTF Part Data Attributes

Parametric Data
BC856BMTF onsemi
Buy Now Datasheet
Compare Parts:
BC856BMTF onsemi PNP Epitaxial Silicon Transistor, SOT-23-3, 3000-REEL
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer ONSEMI
Part Package Code SOT-23-3
Package Description SOT-23, 3 PIN
Manufacturer Package Code 318BM
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 4 Weeks
Samacsys Manufacturer onsemi
Collector Current-Max (IC) 0.1 A
Collector-Base Capacitance-Max 6 pF
Collector-Emitter Voltage-Max 65 V
Configuration SINGLE
DC Current Gain-Min (hFE) 200
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type PNP
Power Dissipation-Max (Abs) 0.31 W
Qualification Status Not Qualified
Surface Mount YES
Terminal Finish TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 150 MHz
VCEsat-Max 0.65 V

Alternate Parts for BC856BMTF

This table gives cross-reference parts and alternative options found for BC856BMTF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BC856BMTF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BC856B Vishay Semiconductors Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, TO-236AB, BC856BMTF vs BC856B
BC856B-R1-10001 PanJit Semiconductor Check for Price Transistor BC856BMTF vs BC856B-R1-10001
BC856B-R2-10001 PanJit Semiconductor Check for Price Small Signal Bipolar Transistor BC856BMTF vs BC856B-R2-10001
BC856-B Samsung Semiconductor Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN BC856BMTF vs BC856-B
BC856BD87Z Fairchild Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, BC856BMTF vs BC856BD87Z
BC856B Promax-Johnton Electronic Corporation Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN BC856BMTF vs BC856B
BC856B PanJit Semiconductor Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, ROHS COMPLIANT PACKAGE-3 BC856BMTF vs BC856B
BC856BS62Z Fairchild Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon BC856BMTF vs BC856BS62Z
BC856B_R1_10001 PanJit Semiconductor Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN BC856BMTF vs BC856B_R1_10001
BC856BMTF Fairchild Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, SOT-23, 3 PIN BC856BMTF vs BC856BMTF
Part Number Manufacturer Composite Price Description Compare
2SC4555-5 SANYO Electric Co Ltd Check for Price Small Signal Bipolar Transistor, 0.5A I(C), 15V V(BR)CEO, 1-Element, NPN, Silicon, ULTRASMALL, MCP, 3 PIN BC856BMTF vs 2SC4555-5
PDTA144WK Nexperia Check for Price Small Signal Bipolar Transistor BC856BMTF vs PDTA144WK
MMUN2214T3 Motorola Mobility LLC Check for Price 100mA, 50V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB BC856BMTF vs MMUN2214T3
BC856B/T3 Nexperia Check for Price Small Signal Bipolar Transistor BC856BMTF vs BC856B/T3
BC856B-7 Diodes Incorporated Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 65V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC PACKAGE-3 BC856BMTF vs BC856B-7
TMPTA43RLX Allegro MicroSystems LLC Check for Price Small Signal Bipolar Transistor, 200V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB, BC856BMTF vs TMPTA43RLX
DRC2543E Panasonic Electronic Components Check for Price Small Signal Bipolar Transistor, 0.5A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, MINI3-G3-B, 3 PIN BC856BMTF vs DRC2543E
UN9213 Panasonic Electronic Components Check for Price Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SS-MINI PACKAGE-3 BC856BMTF vs UN9213
BCW66GLT Allegro MicroSystems LLC Check for Price Small Signal Bipolar Transistor, 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB, BC856BMTF vs BCW66GLT
2SC3325OTE85L Toshiba America Electronic Components Check for Price TRANSISTOR 500 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236, BIP General Purpose Small Signal BC856BMTF vs 2SC3325OTE85L

BC856BMTF Related Parts

BC856BMTF Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the BC856BMTF is -55°C to 150°C.

  • Yes, the BC856BMTF is suitable for switching applications due to its high switching speed and low saturation voltage.

  • The maximum collector current rating for the BC856BMTF is 1 A.

  • Yes, the BC856BMTF is designed to have low noise characteristics, making it suitable for audio and other noise-sensitive applications.

  • Yes, the BC856BMTF is suitable for linear amplifier circuits due to its high current gain and low distortion characteristics.
