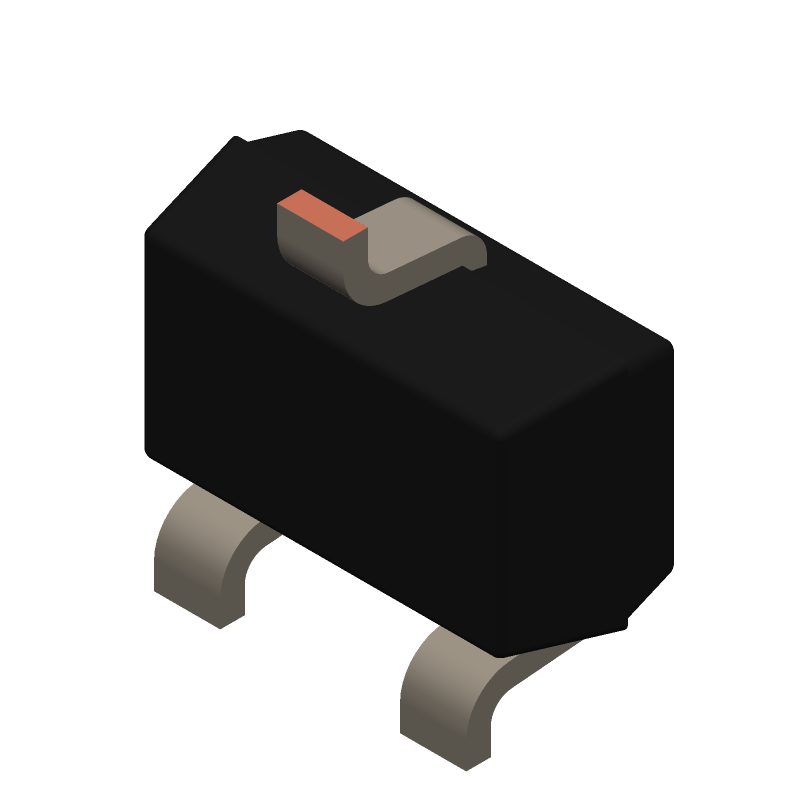

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC849BW,135 by Nexperia
Results Overview of BC849BW,135 by Nexperia
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BC849BW,135 Information
BC849BW,135 by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC849BW,135
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-BC849BW,135CT-ND
|
DigiKey | TRANS NPN 30V 0.1A SOT-323 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
10000 In Stock |
|
$0.0180 / $0.1800 | Buy Now |
|
DISTI #
BC849BW,135
|
Avnet Americas | Trans GP BJT NPN 30V 0.1A 3-Pin SC-70 T/R - Tape and Reel (Alt: BC849BW,135) RoHS: Compliant Min Qty: 60000 Package Multiple: 10000 Lead time: 6 Weeks, 0 Days Container: Reel | 0 |
|
$0.0111 / $0.0130 | Buy Now |
|
DISTI #
771-BC849BW135
|
Mouser Electronics | Bipolar Transistors - BJT NPN general purpose transistor RoHS: Compliant | 8701 |
|
$0.0160 / $0.1600 | Buy Now |
|
DISTI #
86094092
|
Verical | Trans GP BJT NPN 30V 0.1A 200mW Automotive 3-Pin SC-70 T/R RoHS: Compliant Min Qty: 15152 Package Multiple: 1 Date Code: 2101 | Americas - 290000 |
|
$0.0208 / $0.0248 | Buy Now |
|
|
Rochester Electronics | BC849BW - NPN general purpose transistors RoHS: Compliant Status: Active Min Qty: 1 | 290000 |
|
$0.0166 / $0.0268 | Buy Now |
|
DISTI #
BC849BW,135
|
Avnet Silica | Trans GP BJT NPN 30V 01A 3Pin SC70 TR (Alt: BC849BW,135) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for BC849BW,135
BC849BW,135 CAD Models
BC849BW,135 Part Data Attributes
|
|
BC849BW,135
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BC849BW,135
Nexperia
BC849W; BC850W - NPN general purpose transistors@en-us SC-70 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SC-70 | |
| Package Description | PLASTIC, UMT3, SMD, SC-70, CMPAK-3 | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT323 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 6 Weeks | |
| Date Of Intro | 1993-10-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | LOW NOISE | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Base Capacitance-Max | 3 pF | |
| Collector-Emitter Voltage-Max | 30 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 200 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz | |
| VCEsat-Max | 0.6 V |
BC849BW,135 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC849BW,135 is -40°C to 150°C.
-
Yes, the BC849BW,135 is suitable for high-frequency applications up to 100 MHz due to its low transition frequency (fT) of 150 MHz.
-
The recommended storage temperature range for the BC849BW,135 is -40°C to 150°C, with a relative humidity of 60% or less.
-
Yes, the BC849BW,135 can be used in switching applications due to its low saturation voltage (VCE(sat)) of 0.2 V and high current gain (hFE) of 100-400.
-
Yes, the BC849BW,135 is lead-free and RoHS compliant, making it suitable for use in environmentally friendly designs.
