Part Symbol
-
Footprint
-

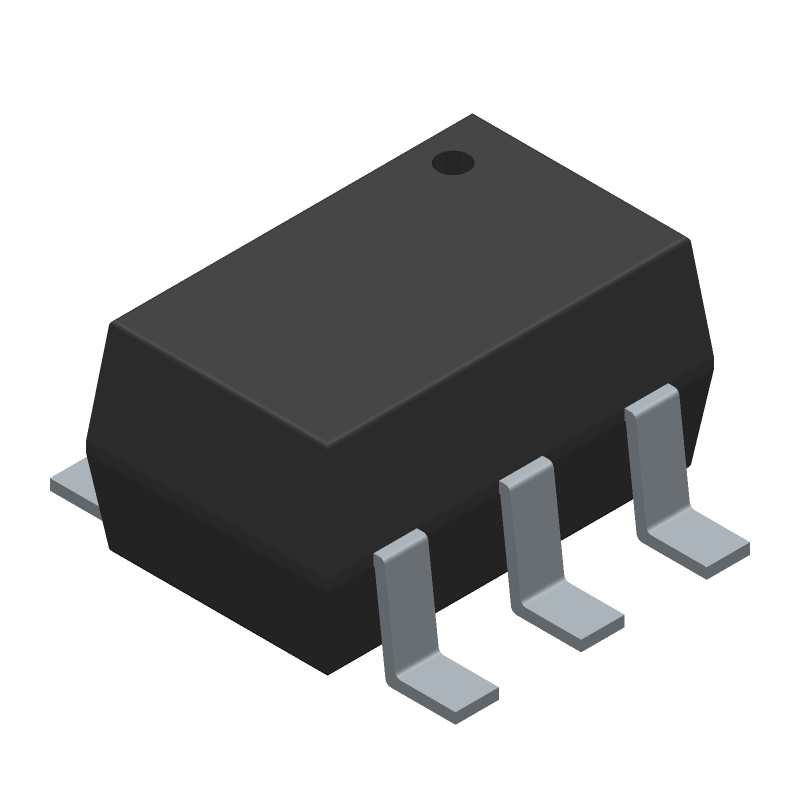

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC847S by onsemi
Results Overview of BC847S by onsemi
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BC847S Information
BC847S by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC847S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
85972960
|
Verical | Trans GP BJT NPN 45V 0.2A 300mW 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 2272 Package Multiple: 1 Date Code: 1901 | Americas - 59001 |
|
$0.1651 | Buy Now |
|
DISTI #
85971753
|
Verical | Trans GP BJT NPN 45V 0.2A 300mW 6-Pin SC-70 T/R RoHS: Compliant Min Qty: 2272 Package Multiple: 1 Date Code: 1801 | Americas - 17202 |
|
$0.1651 | Buy Now |
|
|
Rochester Electronics | Small Signal Bipolar Transistor, 0.2A, 45V, 2-Element, NPN RoHS: Compliant Status: Obsolete Min Qty: 1 | 76203 |
|
$0.0819 / $0.1321 | Buy Now |
|
|
Velocity Electronics | Our Stock | 320 |
|
RFQ | |
|
DISTI #
BC847S
|
Avnet Silica | Trans GP BJT NPN 45V 02A 6Pin SC70 TR (Alt: BC847S) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BC847S
|
EBV Elektronik | Trans GP BJT NPN 45V 02A 6Pin SC70 TR (Alt: BC847S) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for BC847S
BC847S CAD Models
BC847S Part Data Attributes
|
|
BC847S
onsemi
Buy Now
Datasheet
|
Compare Parts:
BC847S
onsemi
NPN Multi-Chip General Purpose Amplifier, SC-88-6 / SC-70-6 / SOT-363-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SC-88-6 / SC-70-6 / SOT-363-6 | |
| Package Description | SC-70, 6 PIN | |
| Manufacturer Package Code | 419AD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.2 A | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| DC Current Gain-Min (hFE) | 110 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.3 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 200 MHz |
Alternate Parts for BC847S
This table gives cross-reference parts and alternative options found for BC847S. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BC847S, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BC847S | Jiangsu Changjiang Electronics Technology Co Ltd | Check for Price | Small Signal Bipolar Transistor, 0.2A I(C), NPN | BC847S vs BC847S |
| BC847S | Siemens | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 2-Element, NPN, Silicon | BC847S vs BC847S |
BC847S Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC847S is -55°C to 150°C.
-
Yes, the BC847S can be used in switching applications due to its high switching speed and low saturation voltage.
-
The recommended storage temperature for the BC847S is -55°C to 30°C.
-
Yes, the BC847S is suitable for high-frequency applications up to 100 MHz due to its high transition frequency (fT) of 300 MHz.
-
The maximum collector-emitter voltage (Vceo) for the BC847S is 45V.
