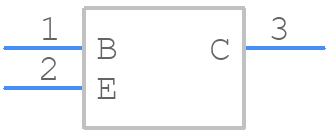

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC847CW-TP by Micro Commercial Components
Results Overview of BC847CW-TP by Micro Commercial Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BC847CW-TP Information
BC847CW-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC847CW-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-BC847CW-TPCT-ND
|
DigiKey | TRANS NPN 45V 0.1A SOT-323 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5794 In Stock |
|
$0.0229 / $0.2100 | Buy Now |
|
DISTI #
833-BC847CW-TP
|
Mouser Electronics | Bipolar Transistors - BJT 100mA 50V RoHS: Compliant | 2740 |
|
$0.0230 / $0.2100 | Buy Now |
|
|
Bristol Electronics | 1676 |
|
RFQ | ||
|
DISTI #
BC847CW-TP
|
TME | Transistor: NPN, bipolar, 45V, 0.1A, 200mW, SOT323 Min Qty: 25 | 0 |
|
$0.0159 / $0.0324 | RFQ |
Part Details for BC847CW-TP
BC847CW-TP CAD Models
BC847CW-TP Part Data Attributes
|
|
BC847CW-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BC847CW-TP
Micro Commercial Components
Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PLASTIC PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 420 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz |
Alternate Parts for BC847CW-TP
This table gives cross-reference parts and alternative options found for BC847CW-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BC847CW-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BC847CW-7-F | Diodes Incorporated | $0.0543 | Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, PLASTIC PACKAGE-3 | BC847CW-TP vs BC847CW-7-F |
| BC847CW | Infineon Technologies AG | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT PACKAGE-3 | BC847CW-TP vs BC847CW |
| BC847CWT/R | NXP Semiconductors | Check for Price | TRANSISTOR 100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SC-70, 3 PIN, BIP General Purpose Small Signal | BC847CW-TP vs BC847CWT/R |
| BC847CW | Weitronic Enterprise Co Ltd | Check for Price | Small Signal Bipolar Transistor | BC847CW-TP vs BC847CW |
| BC847CW | Promax-Johnton Electronic Corporation | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3 | BC847CW-TP vs BC847CW |
| BC847CW | Diotec Semiconductor AG | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3 | BC847CW-TP vs BC847CW |
| BC847CWT/R | Nexperia | Check for Price | Small Signal Bipolar Transistor | BC847CW-TP vs BC847CWT/R |
| BC847CWT1 | Motorola Semiconductor Products | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon | BC847CW-TP vs BC847CWT1 |
| BC847CW-TAPE-13 | NXP Semiconductors | Check for Price | TRANSISTOR 100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal | BC847CW-TP vs BC847CW-TAPE-13 |
BC847CW-TP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC847CW-TP is -55°C to 150°C.
-
Yes, the BC847CW-TP is suitable for high-frequency applications up to 100 MHz due to its high transition frequency (fT) of 300 MHz.
-
The maximum collector-emitter voltage (Vceo) for the BC847CW-TP is 45V.
-
Yes, the BC847CW-TP can be used in switching applications due to its high switching speed and low saturation voltage.
-
Yes, the BC847CW-TP is RoHS (Restriction of Hazardous Substances) compliant, making it suitable for use in environmentally friendly designs.
