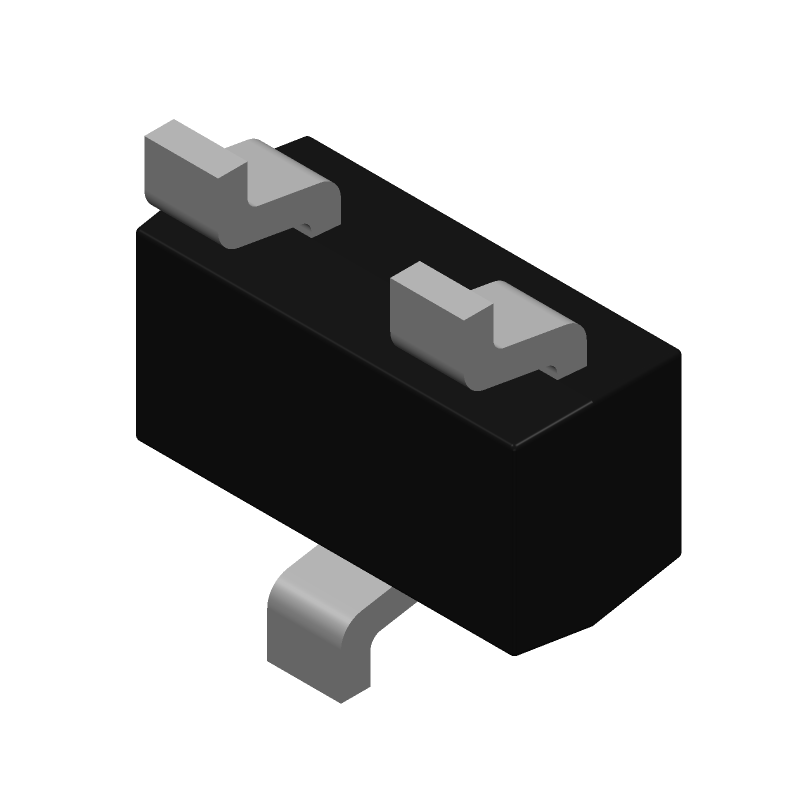

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC847CT-TP by Micro Commercial Components
Results Overview of BC847CT-TP by Micro Commercial Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BC847CT-TP Information
BC847CT-TP by Micro Commercial Components is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC847CT-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BC847CT-TPCT-ND
|
DigiKey | TRANS NPN 45V 0.1A SOT-523 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4968 In Stock |
|
$0.0265 / $0.2400 | Buy Now |
|
DISTI #
833-BC847CT-TP
|
Mouser Electronics | Bipolar Transistors - BJT 100mA 45V RoHS: Compliant | 6011 |
|
$0.0300 / $0.2400 | Buy Now |
|
DISTI #
V79:2366_23769227
|
Arrow Electronics | Trans GP BJT NPN 45V 0.1A 150mW 3-Pin SOT-523 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1843 | Americas - 19 |
|
$0.0175 / $0.0214 | Buy Now |
|
DISTI #
BC847CT-TP
|
TME | Transistor: NPN, bipolar, 45V, 0.1A, 150mW, SOT523 Min Qty: 20 | 0 |
|
$0.0291 / $0.0407 | RFQ |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 3000 | 12000 |
|
$0.0418 / $0.0453 | Buy Now |
|
|
Vyrian | Transistors | 1987 |
|
RFQ |
Part Details for BC847CT-TP
BC847CT-TP CAD Models
BC847CT-TP Part Data Attributes
|
|
BC847CT-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BC847CT-TP
Micro Commercial Components
Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | ROHS COMPLIANT, ULTRA SMALL, PLASTIC PACKAGE-3 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 420 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.15 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz |
Alternate Parts for BC847CT-TP
This table gives cross-reference parts and alternative options found for BC847CT-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BC847CT-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| JC550C | NXP Semiconductors | Check for Price | TRANSISTOR 100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-92, BIP General Purpose Small Signal | BC847CT-TP vs JC550C |
| BC847CW/MIF | Nexperia | Check for Price | vp_BC847xW_SER - 45 V, 100 mA NPN general-purpose transistors@en-us SC-70 3-Pin | BC847CT-TP vs BC847CW/MIF |
| LBC847CLT3G | LRC Leshan Radio Co Ltd | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT PACKAGE-3 | BC847CT-TP vs LBC847CLT3G |
| BC847CW/SNF | Nexperia | Check for Price | vp_BC847xW_SER - 45 V, 100 mA NPN general-purpose transistors@en-us SC-70 3-Pin | BC847CT-TP vs BC847CW/SNF |
| LBC850CLT3G | LRC Leshan Radio Co Ltd | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT PACKAGE-3 | BC847CT-TP vs LBC850CLT3G |
BC847CT-TP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC847CT-TP is -55°C to 150°C.
-
Yes, the BC847CT-TP is suitable for high-frequency applications up to 100 MHz due to its high transition frequency (fT) of 300 MHz.
-
The maximum collector current rating for the BC847CT-TP is 100 mA.
-
Yes, the BC847CT-TP is a low-noise transistor with a noise figure of 2 dB, making it suitable for low-noise amplifier applications.
-
Yes, the BC847CT-TP can be used in switching applications due to its high switching speed and low saturation voltage.
