Part Details for BC847BS-7-F by Diodes Incorporated
Results Overview of BC847BS-7-F by Diodes Incorporated
- Distributor Offerings: (25 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
BC847BS-7-F Information
BC847BS-7-F by Diodes Incorporated is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC847BS-7-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51R6392
|
Newark | Transistor, Npn, Dual, 45V, 100Ma, 200Mw, Sot-363, Transistor Polarity:Dual Npn, Collector Emitter Voltage Max Npn:45V, Collector Emitter Voltage Max Pnp:-, Continuous Collector Current Npn:100Ma, Continuous Collector Current Pnp:- Rohs Compliant: Yes |Diodes Inc. BC847BS-7-F RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 100 |
|
$0.0080 | Buy Now |
|
DISTI #
86AK4359
|
Newark | Bipolar Trans, Dual Npn, 45V, Sot-363 Rohs Compliant: Yes |Diodes Inc. BC847BS-7-F RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0320 / $0.0370 | Buy Now |
|
DISTI #
BC847BS-7FDICT-ND
|
DigiKey | TRANS 2NPN 45V 100MA SOT-363 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
484045 In Stock |
|
$0.0175 / $0.2100 | Buy Now |
|
DISTI #
BC847BS-7-F
|
Avnet Americas | Bipolar Transistor Array, Dual, Dual NPN, 45 V, 100 mA, 200 mW - Tape and Reel (Alt: BC847BS-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0148 / $0.0154 | Buy Now |
|
DISTI #
BC847BS-7-F
|
Avnet Americas | Bipolar Transistor Array, Dual, Dual NPN, 45 V, 100 mA, 200 mW - Tape and Reel (Alt: BC847BS-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0154 / $0.0164 | Buy Now |
|
DISTI #
621-BC847BS-7-F
|
Mouser Electronics | Bipolar Transistors - BJT NPN BIPOLAR RoHS: Compliant | 43985 |
|
$0.0230 / $0.2100 | Buy Now |
|
DISTI #
P40:2555_23840323
|
Arrow Electronics | Trans GP BJT NPN 45V 0.1A 200mW 6-Pin SOT-363 T/R RoHS: Compliant Min Qty: 9258 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2314 | Europe - 105980 |
|
$0.0122 | Buy Now |
|
DISTI #
V72:2272_06691410
|
Arrow Electronics | Trans GP BJT NPN 45V 0.1A 200mW 6-Pin SOT-363 T/R RoHS: Compliant Min Qty: 2681 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2302 Container: Cut Strips | Americas - 2681 |
|
$0.0287 | Buy Now |
|
DISTI #
70437686
|
RS | Transistor Dual NPN 45V 0.1A SOT363-6 Min Qty: 50 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0410 / $0.0480 | RFQ |
|
|
Future Electronics | BC847BS Series Dual NPN 45 V 200 mW Small Signal Transistor SMT - SOT-363 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 39000Reel |
|
$0.0171 / $0.0185 | Buy Now |
Part Details for BC847BS-7-F

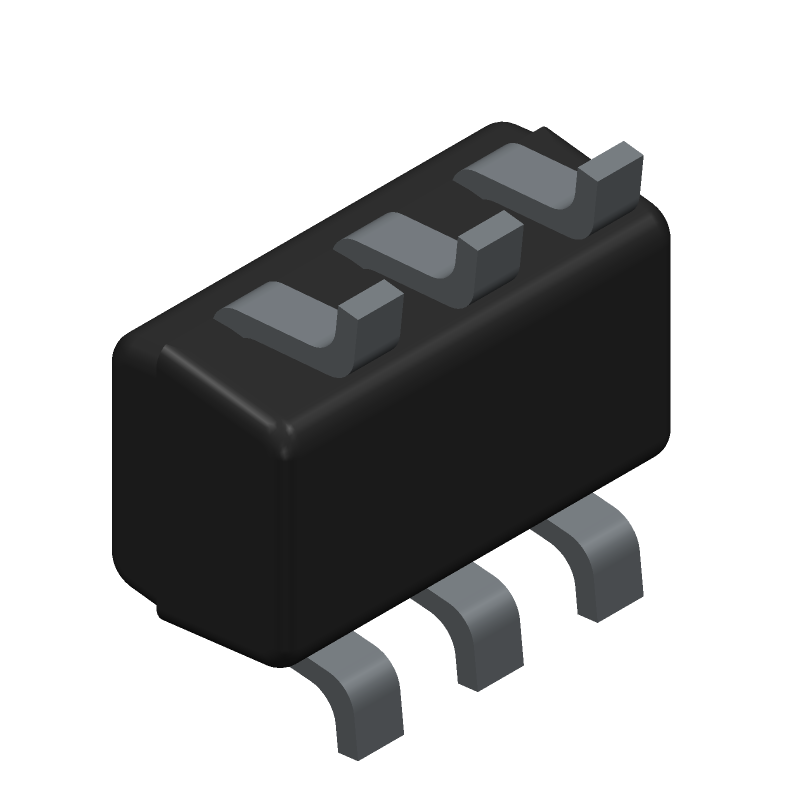

BC847BS-7-F CAD Models
BC847BS-7-F Part Data Attributes
|
|
BC847BS-7-F
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
BC847BS-7-F
Diodes Incorporated
Small Signal Bipolar Transistor, 0.1A I(C), 45V V(BR)CEO, 2-Element, NPN, Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | HIGH RELIABILITY | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 45 V | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| DC Current Gain-Min (hFE) | 200 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.2 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 100 MHz |
Alternate Parts for BC847BS-7-F
This table gives cross-reference parts and alternative options found for BC847BS-7-F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BC847BS-7-F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BC847BS,135 | Nexperia | $0.0197 | vp_BC847BS - 45 V, 100 mA NPN/NPN general-purpose transistor@en-us TSSOP 6-Pin | BC847BS-7-F vs BC847BS,135 |
| BC847BPN,165 | Nexperia | $0.0504 | vp_BC847BPN - 45 V, 100 mA NPN/PNP general-purpose transistor@en-us TSSOP 6-Pin | BC847BS-7-F vs BC847BPN,165 |
| BC847BS,115 | Nexperia | $0.0646 | vp_BC847BS - 45 V, 100 mA NPN/NPN general-purpose transistor@en-us TSSOP 6-Pin | BC847BS-7-F vs BC847BS,115 |
| 2DC4617R-7-F | Diodes Incorporated | $0.0648 | Small Signal Bipolar Transistor, 0.15A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, ULTRA MINIATURE, PLASTIC PACKAGE-3 | BC847BS-7-F vs 2DC4617R-7-F |
| BC847BVN,115 | Nexperia | $0.0974 | BC847BVN - 45 V, 100 mA NPN/PNP general purpose transistor@en-us SOT 6-Pin | BC847BS-7-F vs BC847BVN,115 |
| BC847BPN,135 | Nexperia | Check for Price | vp_BC847BPN - 45 V, 100 mA NPN/PNP general-purpose transistor@en-us TSSOP 6-Pin | BC847BS-7-F vs BC847BPN,135 |
BC847BS-7-F Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC847BS-7-F is -55°C to 150°C.
-
Yes, the BC847BS-7-F is suitable for high-frequency applications up to 100 MHz due to its low transition frequency (fT) of 100 MHz.
-
The maximum collector-emitter voltage (VCEO) for the BC847BS-7-F is 45V.
-
Yes, the BC847BS-7-F can be used in switching applications due to its low saturation voltage (VCE(sat)) of 0.1V and high current gain (hFE) of 100-400.
-
Yes, the BC847BS-7-F is RoHS (Restriction of Hazardous Substances) compliant, making it suitable for use in environmentally friendly designs.
