Transistors / Small Signal Bipolar Transistors / BC846BW-QX
Datasheets

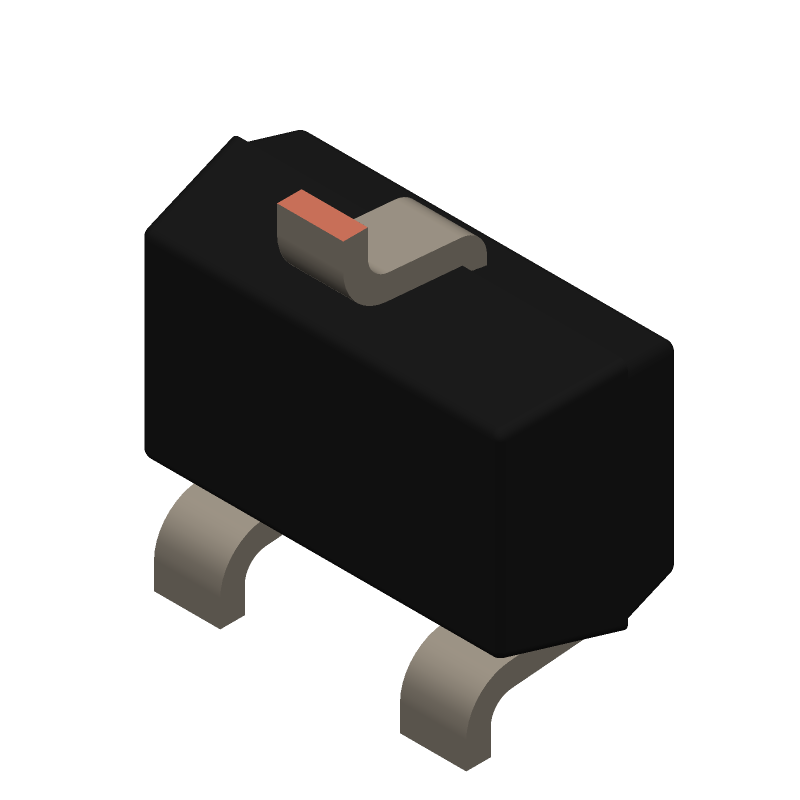

BC846BW-QX by: Nexperia

BC846xW-Q series - 65 V, 100 mA NPN general-purpose transistors@en-us SC-70 3-Pin

Part Details for BC846BW-QX by Nexperia

Results Overview of BC846BW-QX by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research Industrial Automation Audio and Video Systems Electronic Manufacturing

BC846BW-QX Information

BC846BW-QX by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for BC846BW-QX

Part # Distributor Description Stock Price Buy
DISTI # 1727-BC846BW-QX-ND
DigiKey TRANS NPN 65V 0.1A SOT-323 Min Qty: 51000 Lead time: 6 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 51,000 $0.0171
$0.0171 Buy Now
DISTI # BC846BW-QX
Avnet Americas Transistor GP BJT NPN 65V 100mA 3-Pin SOT-323 T/R - Tape and Reel (Alt: BC846BW-QX) RoHS: Compliant Min Qty: 57000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 57,000 $0.0117
  • 63,000 $0.0112
  • 120,000 $0.0109
  • 285,000 $0.0107
  • 570,000 $0.0105
$0.0105 / $0.0117 Buy Now
DISTI # 771-BC846BW-QX
Mouser Electronics Bipolar Transistors - BJT 65 V, 100 mA NPN/NPN general-purpose transistor RoHS: Compliant 66474
  • 1 $0.1300
  • 10 $0.0900
  • 100 $0.0570
  • 500 $0.0390
  • 1,000 $0.0300
  • 3,000 $0.0240
  • 6,000 $0.0200
  • 9,000 $0.0180
$0.0180 / $0.1300 Buy Now
Rochester Electronics 65 V, 500 mA NPN general-purpose transistors RoHS: Compliant Status: Active Min Qty: 1 9000
  • 100 $0.0268
  • 500 $0.0241
  • 1,000 $0.0222
  • 10,000 $0.0198
  • 100,000 $0.0166
$0.0166 / $0.0268 Buy Now
DISTI # BC846BW-QX
TTI Bipolar Transistors - BJT 65 V, 100 mA NPN/NPN general-purpose transistor RoHS: Compliant pbFree: Pb-Free Min Qty: 24000 Package Multiple: 3000 Container: Reel Americas - 0
  • 24,000 $0.0152
  • 51,000 $0.0145
  • 120,000 $0.0121
  • 285,000 $0.0118
  • 570,000 $0.0116
$0.0116 / $0.0152 Buy Now
DISTI # BC846BW-QX
TME Transistor: NPN, bipolar, 65V, 0.1A, 200mW, SC70,SOT323 Min Qty: 25 3125
  • 25 $0.0350
  • 100 $0.0237
  • 500 $0.0189
  • 3,000 $0.0169
  • 12,000 $0.0158
$0.0158 / $0.0350 Buy Now
DISTI # BC846BW-QX
Avnet Asia Transistor GP BJT NPN 65V 100mA 3-Pin SOT-323 T/R (Alt: BC846BW-QX) RoHS: Compliant Min Qty: 60000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days 0
  • 60,000 $0.0175
  • 120,000 $0.0173
  • 180,000 $0.0170
  • 300,000 $0.0168
  • 600,000 $0.0164
  • 1,500,000 $0.0160
  • 3,000,000 $0.0157
$0.0157 / $0.0175 Buy Now
DISTI # BC846BW-QX
Avnet Silica Transistor GP BJT NPN 65V 100mA 3Pin SOT323 TR (Alt: BC846BW-QX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # BC846BW-QX
EBV Elektronik Transistor GP BJT NPN 65V 100mA 3Pin SOT323 TR (Alt: BC846BW-QX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days EBV - 0
Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 27000
  • 9,000 $0.0195
  • 27,000 $0.0180
$0.0180 / $0.0195 Buy Now
Vyrian Transistors 28437
RFQ

Part Details for BC846BW-QX

BC846BW-QX Part Data Attributes

Parametric Data
BC846BW-QX Nexperia
Buy Now Datasheet
Compare Parts:
BC846BW-QX Nexperia BC846xW-Q series - 65 V, 100 mA NPN general-purpose transistors@en-us SC-70 3-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code SC-70
Package Description SC-70, SOT-323, 3 PIN
Pin Count 3
Manufacturer Package Code SOT323
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 6 Weeks
Samacsys Manufacturer Nexperia
Collector Current-Max (IC) 0.1 A
Collector-Base Capacitance-Max 3 pF
Collector-Emitter Voltage-Max 65 V
Configuration SINGLE
DC Current Gain-Min (hFE) 200
JESD-30 Code R-PDSO-G3
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 0.2 W
Reference Standard AEC-Q101; IEC-60134
Surface Mount YES
Terminal Form GULL WING
Terminal Position DUAL
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 100 MHz
VCEsat-Max 0.4 V

BC846BW-QX Frequently Asked Questions (FAQ)

  • The maximum operating temperature range for the BC846BW-QX is -40°C to 150°C.

  • Yes, the BC846BW-QX is suitable for high-frequency applications up to 100 MHz due to its low capacitance and high transition frequency (fT).

  • The recommended storage temperature range for the BC846BW-QX is -40°C to 150°C.

  • Yes, the BC846BW-QX can be used in switching applications due to its low saturation voltage and high current gain.

  • Yes, the BC846BW-QX is lead-free and RoHS compliant, making it suitable for use in environmentally friendly designs.
