Transistors / Small Signal Bipolar Transistors / BC846BS-QX
Datasheets

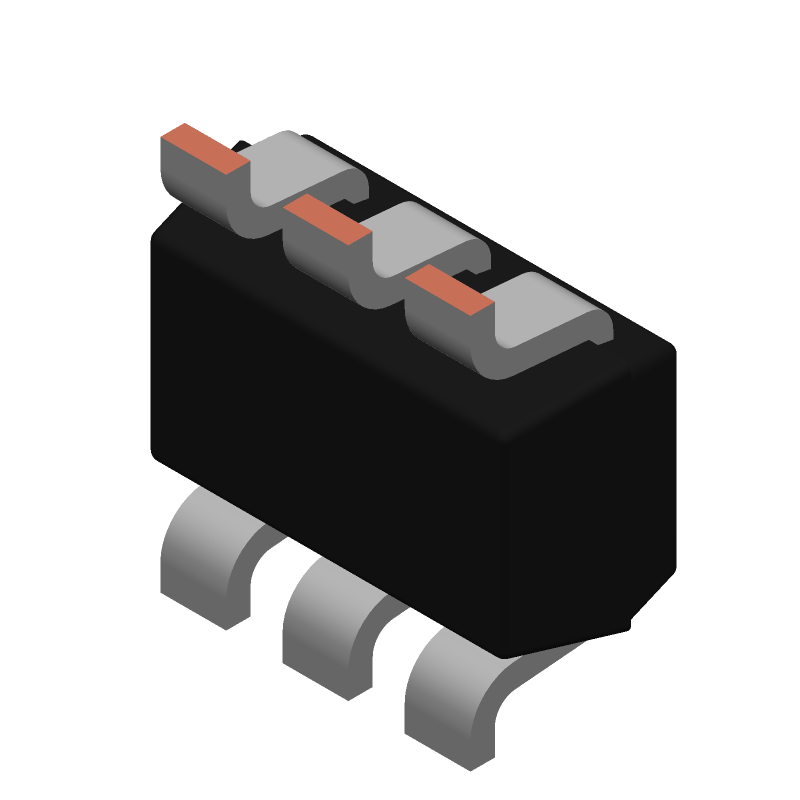

BC846BS-QX by: Nexperia

BC846BS-Q - 65 V, 100 mA NPN/NPN general-purpose transistor@en-us TSSOP 6-Pin

Part Details for BC846BS-QX by Nexperia

Results Overview of BC846BS-QX by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research Industrial Automation Audio and Video Systems Electronic Manufacturing

BC846BS-QX Information

BC846BS-QX by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for BC846BS-QX

Part # Distributor Description Stock Price Buy
DISTI # 1727-BC846BS-QX-ND
DigiKey TRANS 2NPN 65V 100MA 6-TSSOP Min Qty: 30000 Lead time: 6 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 30,000 $0.0281
$0.0281 Buy Now
DISTI # BC846BS-QX
Avnet Americas Transistor BJT Array Dual NPN 65V 100mA 6-Pin TSSOP T/R - Tape and Reel (Alt: BC846BS-QX) RoHS: Compliant Min Qty: 33000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days Container: Reel 0
  • 33,000 $0.0197
  • 39,000 $0.0189
  • 72,000 $0.0185
  • 165,000 $0.0182
  • 330,000 $0.0177
$0.0177 / $0.0197 Buy Now
DISTI # 771-BC846BS-QX
Mouser Electronics Bipolar Transistors - BJT 65 V, 100 mA NPN/NPN general-purpose double transistor RoHS: Compliant 7980
  • 1 $0.2200
  • 10 $0.1520
  • 100 $0.0970
  • 500 $0.0600
  • 1,000 $0.0440
  • 3,000 $0.0320
  • 9,000 $0.0290
  • 24,000 $0.0280
$0.0280 / $0.2200 Buy Now
DISTI # 88140220
Verical Trans GP BJT NPN 65V 0.1A 300mW Automotive AEC-Q101 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 11195 Package Multiple: 1 Date Code: 2201 Americas - 372000
  • 11,195 $0.0335
$0.0335 Buy Now
DISTI # 88140219
Verical Trans GP BJT NPN 65V 0.1A 300mW Automotive AEC-Q101 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 11195 Package Multiple: 1 Date Code: 2101 Americas - 87000
  • 11,195 $0.0335
$0.0335 Buy Now
DISTI # 86095928
Verical Trans GP BJT NPN 65V 0.1A 300mW Automotive AEC-Q101 6-Pin TSSOP T/R RoHS: Compliant Min Qty: 11195 Package Multiple: 1 Date Code: 2301 Americas - 36000
  • 11,195 $0.0335
$0.0335 Buy Now
Rochester Electronics 65 V, 100 mA NPN/NPN general-purpose transistor RoHS: Compliant Status: Active Min Qty: 1 495000
  • 100 $0.0268
  • 500 $0.0241
  • 1,000 $0.0222
  • 10,000 $0.0198
  • 100,000 $0.0166
$0.0166 / $0.0268 Buy Now
DISTI # BC846BS-QX
TTI Bipolar Transistors - BJT 65 V, 100 mA NPN/NPN general-purpose double transistor RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel Americas - 51000
In Stock
  • 3,000 $0.0297
  • 9,000 $0.0291
  • 24,000 $0.0285
$0.0285 / $0.0297 Buy Now
DISTI # BC846BS-QX
TME Transistor: NPN x2, bipolar, 65V, 0.1A, 200mW, SC88,SOT363,TSSOP6 Min Qty: 1 3070
  • 1 $0.1949
  • 10 $0.1334
  • 25 $0.1026
  • 100 $0.0841
  • 250 $0.0574
  • 500 $0.0431
  • 1,000 $0.0388
  • 3,000 $0.0339
  • 9,000 $0.0277
  • 30,000 $0.0267
$0.0267 / $0.1949 Buy Now
DISTI # BC846BS-QX
Avnet Asia Transistor BJT Array Dual NPN 65V 100mA 6-Pin TSSOP T/R (Alt: BC846BS-QX) RoHS: Compliant Min Qty: 33000 Package Multiple: 3000 Lead time: 6 Weeks, 0 Days 0
  • 33,000 $0.0386
  • 66,000 $0.0381
  • 99,000 $0.0376
  • 165,000 $0.0371
  • 330,000 $0.0362
  • 825,000 $0.0353
  • 1,650,000 $0.0345
$0.0345 / $0.0386 Buy Now
DISTI # BC846BS-QX
Avnet Silica Transistor BJT Array Dual NPN 65V 100mA 6Pin TSSOP TR (Alt: BC846BS-QX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
DISTI # BC846BS-QX
EBV Elektronik Transistor BJT Array Dual NPN 65V 100mA 6Pin TSSOP TR (Alt: BC846BS-QX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days EBV - 159000
Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 3000 18000
  • 6,000 $0.0325
  • 18,000 $0.0300
$0.0300 / $0.0325 Buy Now
Vyrian Transistors 112232
RFQ

Part Details for BC846BS-QX

BC846BS-QX Part Data Attributes

Parametric Data
BC846BS-QX Nexperia
Buy Now Datasheet
Compare Parts:
BC846BS-QX Nexperia BC846BS-Q - 65 V, 100 mA NPN/NPN general-purpose transistor@en-us TSSOP 6-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code TSSOP
Package Description SC-88, SOT-363, TSSOP-6
Pin Count 6
Manufacturer Package Code SOT363
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 6 Weeks
Samacsys Manufacturer Nexperia
Collector Current-Max (IC) 0.1 A
Collector-Base Capacitance-Max 1.9 pF
Collector-Emitter Voltage-Max 65 V
Configuration SEPARATE, 2 ELEMENTS
DC Current Gain-Min (hFE) 200
JESD-30 Code R-PDSO-G6
Number of Elements 2
Number of Terminals 6
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 0.3 W
Reference Standard AEC-Q101; IEC-60134
Surface Mount YES
Terminal Form GULL WING
Terminal Position DUAL
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 100 MHz
VCEsat-Max 0.3 V

BC846BS-QX Frequently Asked Questions (FAQ)

  • The recommended PCB footprint for the BC846BS-QX is a standard SOT23 package with a 1.3 mm x 0.8 mm body size and a 0.5 mm pitch. The datasheet provides a recommended land pattern and soldering guidelines.

  • To ensure reliable operation of the BC846BS-QX in high-temperature environments, follow the recommended operating temperature range of -40°C to 150°C, and consider derating the device's power dissipation according to the thermal resistance and ambient temperature. Additionally, ensure good thermal design and heat sinking to minimize junction temperature.

  • The maximum allowable voltage for the BC846BS-QX is 65 V, which is the maximum collector-emitter voltage (Vceo) rating. However, it's essential to consider the device's safe operating area (SOA) and ensure that the voltage and current ratings are not exceeded to prevent damage or premature failure.

  • While the BC846BS-QX is a general-purpose transistor, it's not optimized for high-frequency switching applications. The device's transition frequency (fT) is around 100 MHz, which may not be suitable for very high-frequency applications. Consider using a transistor specifically designed for high-frequency switching, such as a RF transistor or a dedicated high-frequency switch.

  • The BC846BS-QX has a human-body model (HBM) ESD rating of 2 kV and a machine model (MM) ESD rating of 200 V. To handle ESD protection, follow proper handling and storage procedures, use ESD-protective packaging and materials, and consider adding external ESD protection devices or circuits in your design.
