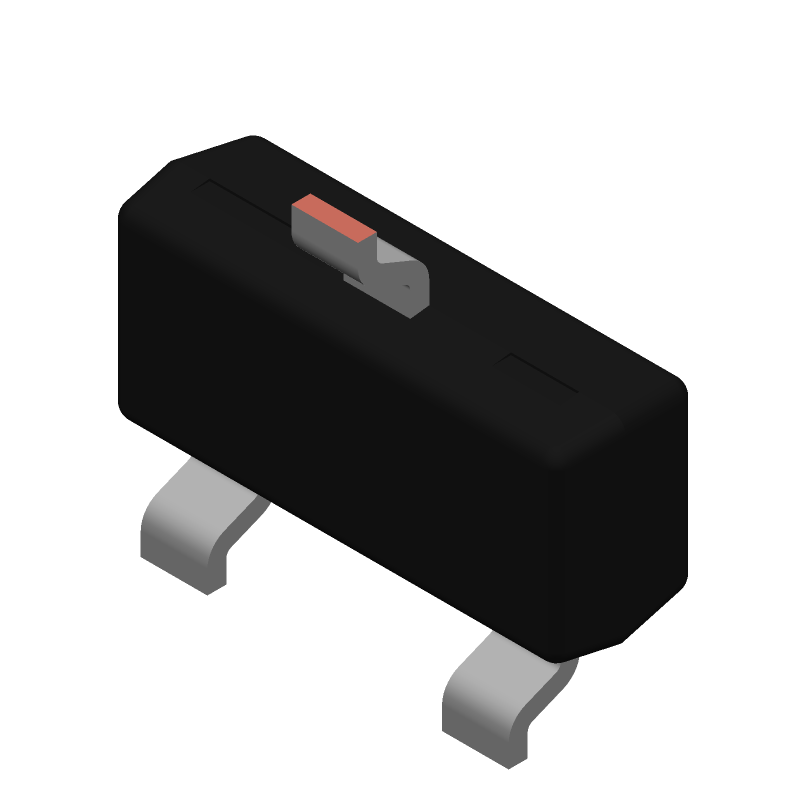

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BC817K-25R by Nexperia
Results Overview of BC817K-25R by Nexperia
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BC817K-25R Information
BC817K-25R by Nexperia is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for BC817K-25R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1727-BC817K-25RCT-ND
|
DigiKey | TRANS NPN 45V 0.5A TO-236AB Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1240 In Stock |
|
$0.0203 / $0.2200 | Buy Now |
|
DISTI #
BC817K-25R
|
Avnet Americas | BC817K-25/SOT23/TO-236AB - Tape and Reel (Alt: BC817K-25R) RoHS: Compliant Min Qty: 36000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0165 / $0.0184 | Buy Now |
|
DISTI #
771-BC817K-25R
|
Mouser Electronics | Bipolar Transistors - BJT 45 V, 500 mA NPN general-purpose transistors RoHS: Compliant | 8814 |
|
$0.0230 / $0.2200 | Buy Now |
|
|
Rochester Electronics | BC817K-25 - Bipolar General Purpose Transistor RoHS: Compliant Status: Active Min Qty: 1 | 1427 |
|
$0.0166 / $0.0268 | Buy Now |
|
DISTI #
BC817K-25R
|
TTI | Bipolar Transistors - BJT 45 V, 500 mA NPN general-purpose transistors RoHS: Compliant pbFree: Pb-Free Min Qty: 27000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0173 / $0.0187 | Buy Now |
|
DISTI #
BC817K-25R
|
TME | Transistor: NPN, bipolar, 45V, 0.5A, 775mW, SOT23,TO236AB Min Qty: 1 | 2175 |
|
$0.0256 / $0.2052 | Buy Now |
|
DISTI #
BC817K-25R
|
Avnet Asia | BC817K-25/SOT23/TO-236AB (Alt: BC817K-25R) RoHS: Compliant Min Qty: 36000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days | 0 |
|
$0.0227 / $0.0254 | Buy Now |
|
DISTI #
BC817K-25R
|
Avnet Silica | BC817K25SOT23TO236AB (Alt: BC817K-25R) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 12000 |
|
Buy Now | |
|
DISTI #
BC817K-25R
|
EBV Elektronik | BC817K25SOT23TO236AB (Alt: BC817K-25R) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | EBV - 21000 |
|
Buy Now |
Part Details for BC817K-25R
BC817K-25R CAD Models
BC817K-25R Part Data Attributes
|
|
BC817K-25R
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BC817K-25R
Nexperia
BC817K series - 45 V, 500 mA NPN general-purpose transistors@en-us TO-236 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | TO-236 | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT23 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | TIN | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
BC817K-25R Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BC817K-25R is -40°C to 150°C.
-
The BC817K-25R is a general-purpose transistor and is not optimized for high-frequency applications. It has a transition frequency (fT) of 100 MHz, which may not be sufficient for high-frequency applications.
-
Yes, the BC817K-25R can be used as a switch, but it's not ideal for high-current switching applications due to its limited collector current (IC) rating of 500 mA.
-
The minimum current gain (hFE) of the BC817K-25R is 100, but it can vary depending on the operating conditions and temperature.
-
The BC817K-25R is a general-purpose transistor and is not optimized for low-noise applications. It has a noise figure (NF) of around 10 dB, which may not be suitable for low-noise applications.
