Transistors / Small Signal Bipolar Transistors / BC817-25
Datasheets

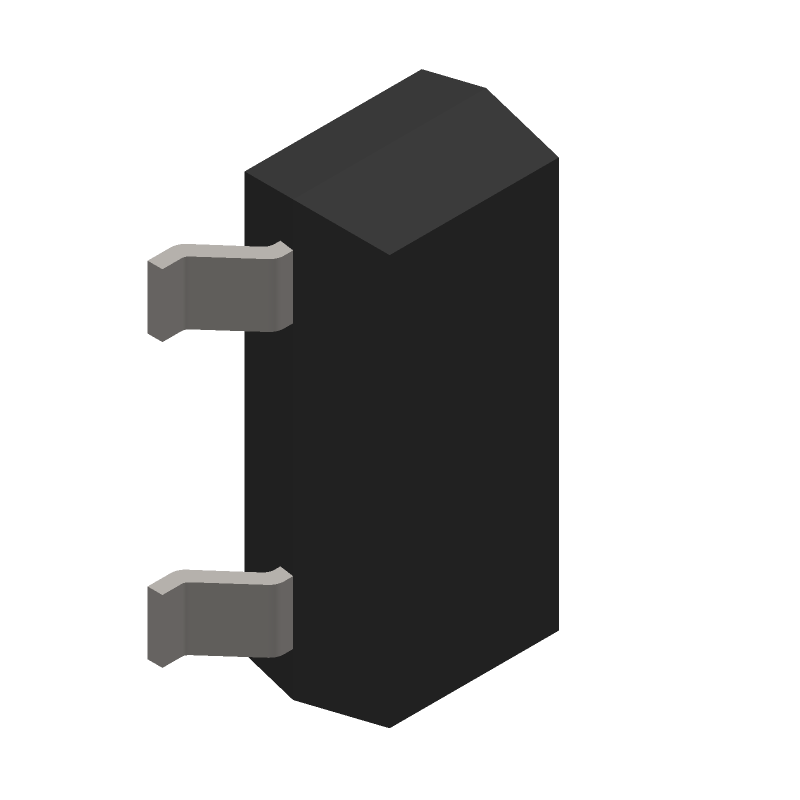

BC817-25 by:

Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3

Part Details for BC817-25 by PanJit Semiconductor

Results Overview of BC817-25 by PanJit Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BC817-25 Information

BC817-25 by PanJit Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Part Details for BC817-25

BC817-25 Part Data Attributes

Parametric Data
BC817-25 PanJit Semiconductor
Buy Now Datasheet
Compare Parts:
BC817-25 PanJit Semiconductor Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANJIT INTERNATIONAL INC
Package Description ROHS COMPLIANT, PLASTIC PACKAGE-3
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer PANJIT
Collector Current-Max (IC) 0.5 A
Collector-Emitter Voltage-Max 45 V
Configuration SINGLE
DC Current Gain-Min (hFE) 160
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 0.33 W
Qualification Status Not Qualified
Surface Mount YES
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Transistor Application AMPLIFIER
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 100 MHz
VCEsat-Max 0.7 V

Alternate Parts for BC817-25

This table gives cross-reference parts and alternative options found for BC817-25. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BC817-25, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BC817-25 STMicroelectronics Check for Price 500mA, 45V, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, SOT-23, 3 PIN BC817-25 vs BC817-25
933628630235 Nexperia Check for Price Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon BC817-25 vs 933628630235
BC817-25 Micro Commercial Components Check for Price Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3 BC817-25 vs BC817-25
BC817-25 NXP Semiconductors Check for Price TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, PLASTIC PACKAGE-3, BIP General Purpose Small Signal BC817-25 vs BC817-25
BC817-25-13-F Diodes Incorporated Check for Price Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3 BC817-25 vs BC817-25-13-F
BC817-25-TP Micro Commercial Components $0.0391 Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3 BC817-25 vs BC817-25-TP
BC817-25 Lite-On Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, PLASTIC PACKAGE-3 BC817-25 vs BC817-25
BC817-25LT1-TP Micro Commercial Components Check for Price Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3 BC817-25 vs BC817-25LT1-TP
BC817-25 KEC Check for Price Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN BC817-25 vs BC817-25
Part Number Manufacturer Composite Price Description Compare
BC817-25/T3 NXP Semiconductors Check for Price TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, PLASTIC PACKAGE-3, BIP General Purpose Small Signal BC817-25 vs BC817-25/T3
BC817-25HE3-TP Micro Commercial Components Check for Price Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, BC817-25 vs BC817-25HE3-TP
BC817-25T/R NXP Semiconductors Check for Price TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB, PLASTIC PACKAGE-3, BIP General Purpose Small Signal BC817-25 vs BC817-25T/R
BC817-25 National Semiconductor Corporation Check for Price Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-236AB BC817-25 vs BC817-25
BC817-25 Rectron Semiconductor Check for Price Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC PACKAGE-3 BC817-25 vs BC817-25
BC817-25 Siemens Check for Price Small Signal Bipolar Transistor, 0.5A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN BC817-25 vs BC817-25
BC817-25-TAPE-13 NXP Semiconductors Check for Price TRANSISTOR 500 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal BC817-25 vs BC817-25-TAPE-13
BC817-25,235 NXP Semiconductors Check for Price BC817; BC817W; BC337 - 45 V, 500 mA NPN general-purpose transistors TO-236 3-Pin BC817-25 vs BC817-25,235
BC817-25,235 Nexperia Check for Price vp_BC817_SER - 45 V, 500 mA NPN general-purpose transistors@en-us TO-236 3-Pin BC817-25 vs BC817-25,235
BC817-25_R1_10001 PanJit Semiconductor Check for Price Transistor, BC817-25 vs BC817-25_R1_10001
